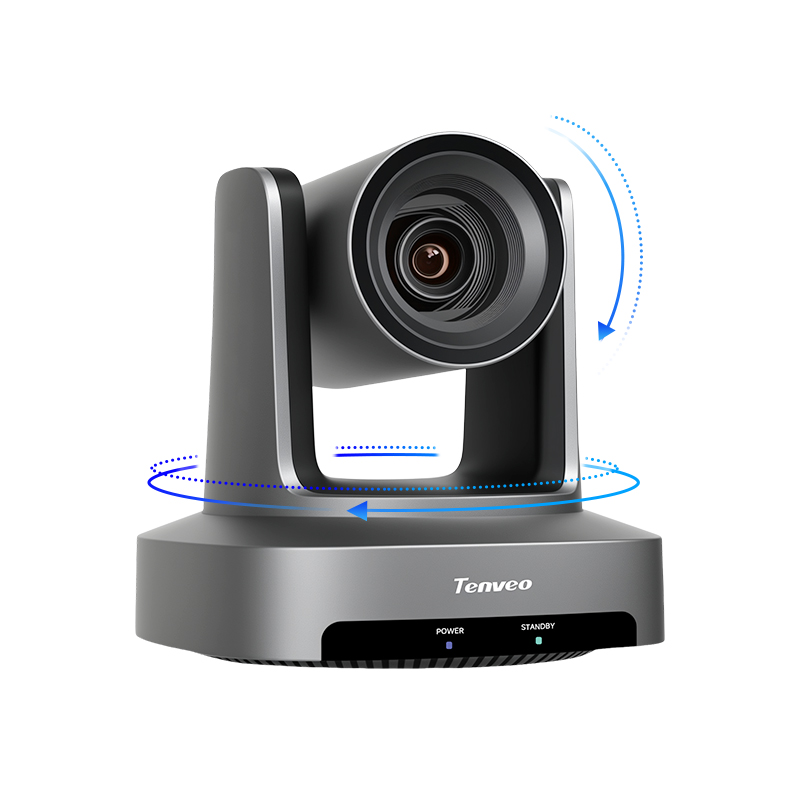

4K Ultra HD@60fps. 36x Hybrid Zoom System[20x Optical+16x Digital].

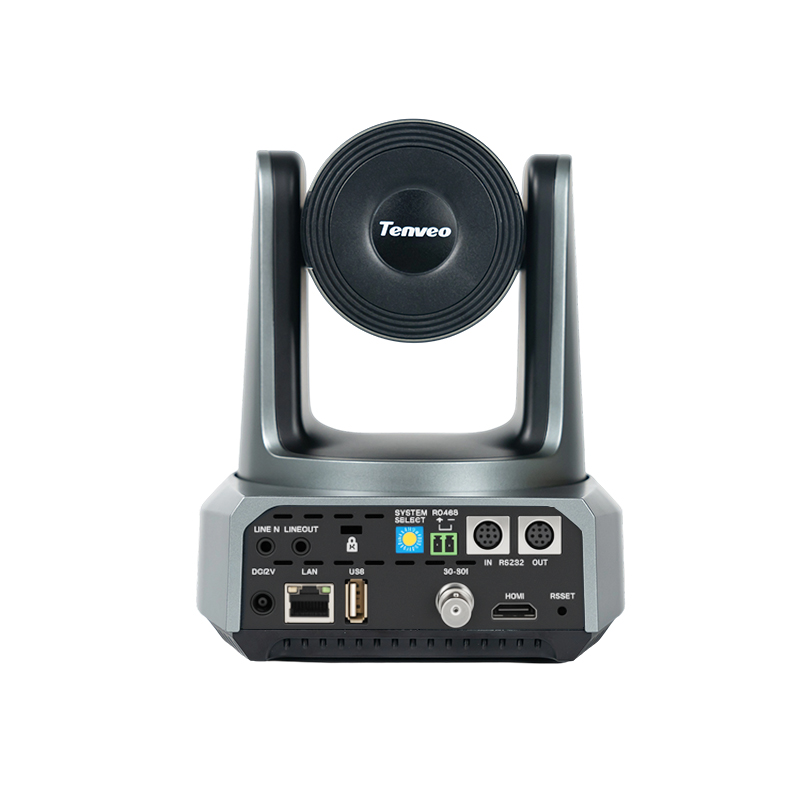

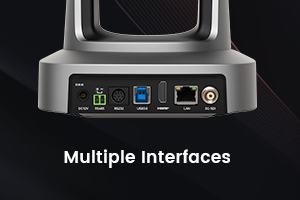

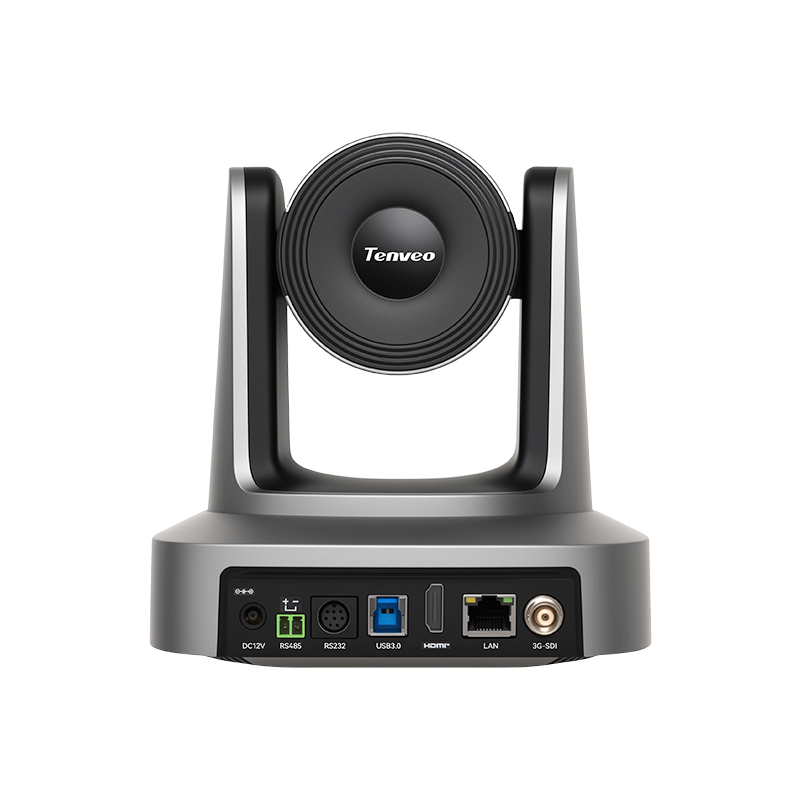

The camera is compatible with multiple devices through USB, HDMI, SDI, RJ45, RS485, RS232 interfaces. It also supports NDIHX3 PoE.

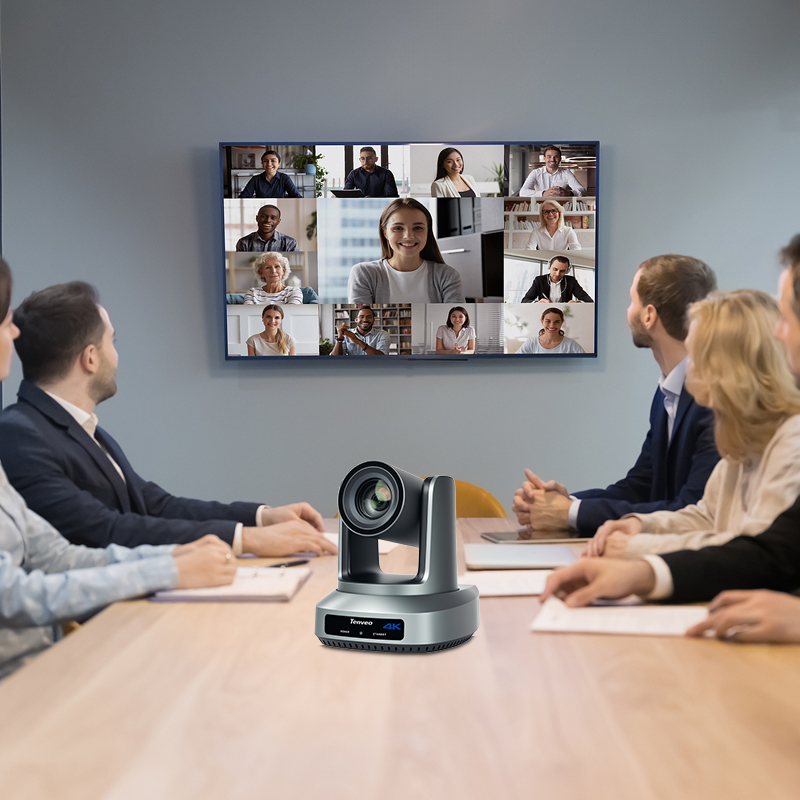

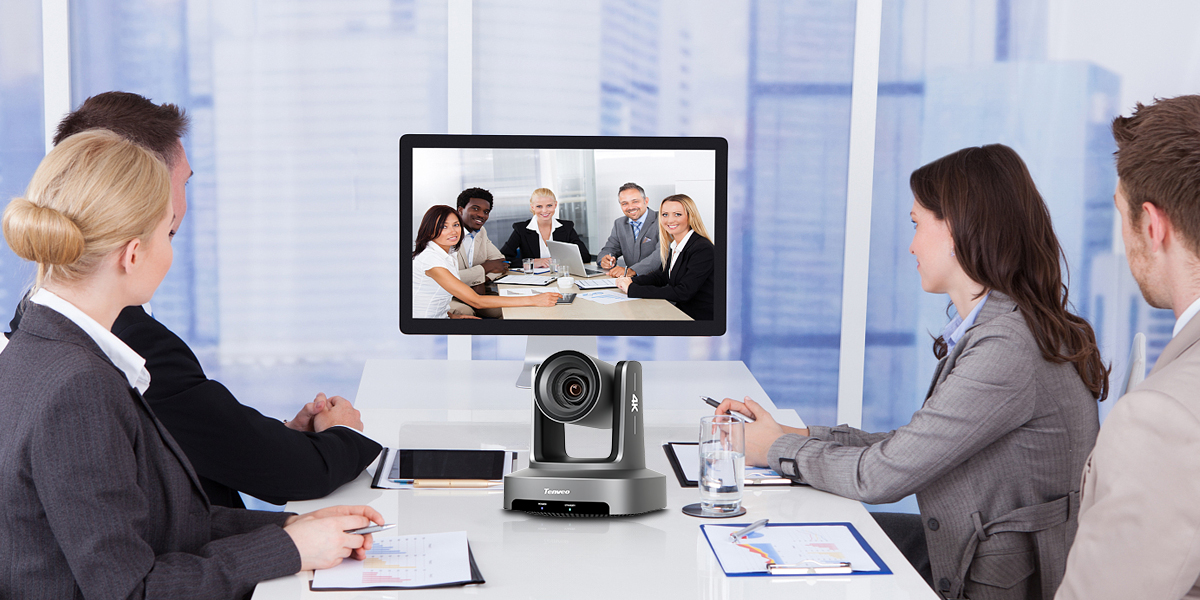

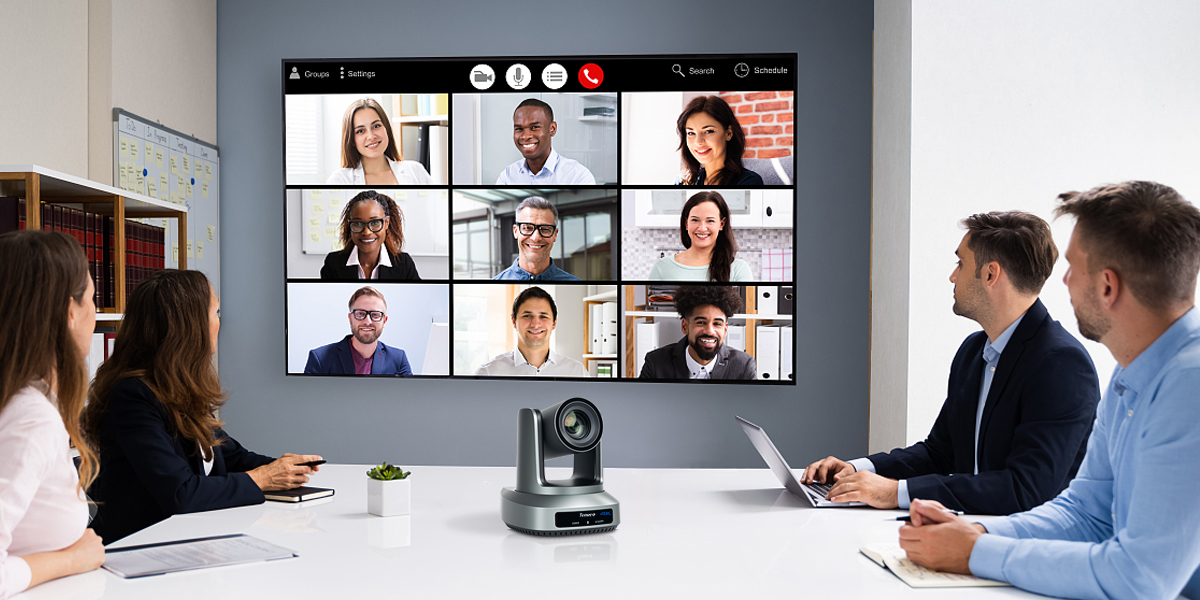

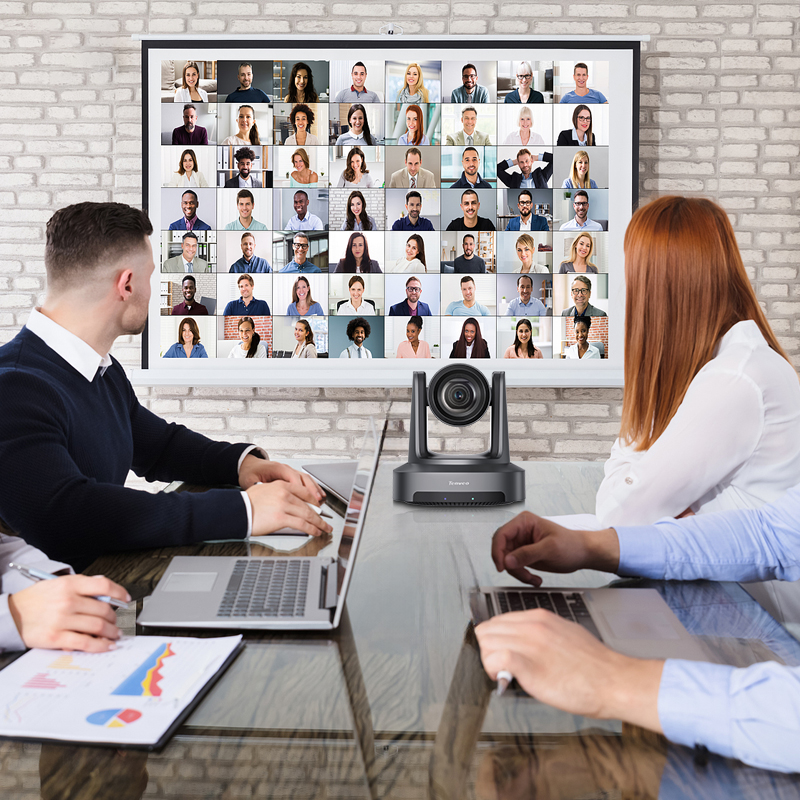

Autoframing can automatically position all the participants in the center of the screen. The auto tracking function can select specific attendees and will continuously follow her/his movements.
Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Compatible with various platform.

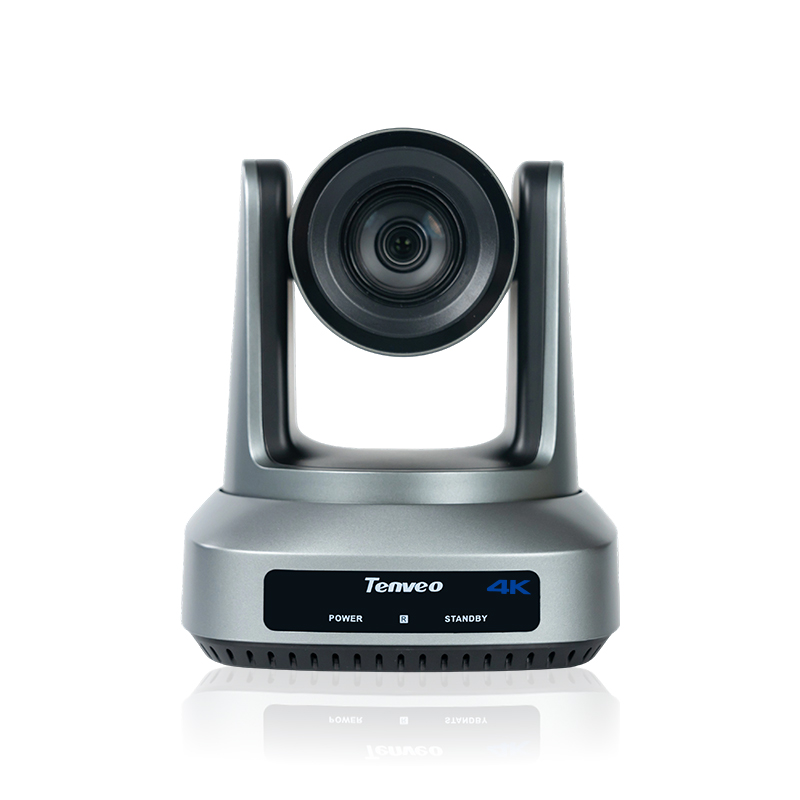

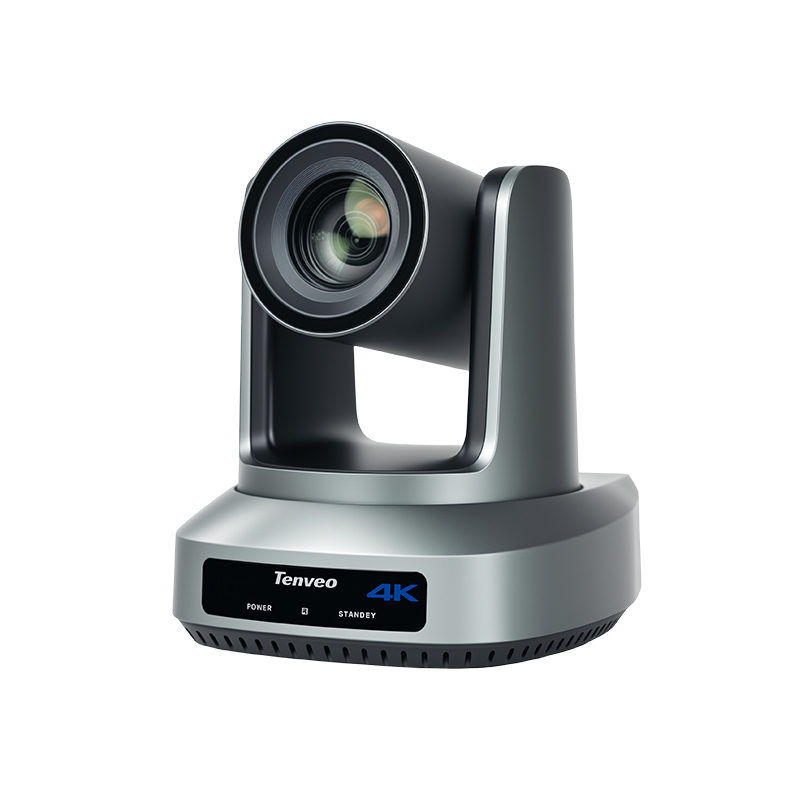

| Model | TEVO-UV620A Ultra |
| Image Sensor | Sony 1/1.8" CMOS |
| Effective Pixels | 8.42MP |
| Video Signals | HDMI: 4KP60fps, 4KP59.94fps, 4KP50fps, 4KP30fps, 4KP25fps, 4KP29.97fps, 1080P60fps, 1080P50fps, 1080I60fps, 1080I50fps, 1080P30fps, 1080P59.94fps, 1080I59.94fps, 1080P29.97fps, 720P60fps, 720P59.94fps; 3G-SDI: 1080P60fps, 1080P50fps, 1080P30fps, 1080P29.97fps, 1080P59.94fps, 1080P25fps; 1080I60fps, 1080I50fps, 1080I59.94fps; 720P60fps, 720P59.94fps; USB2.0: H.264: max to 2160P@30fps H.265: max to 2160P@30fps MJPEG: max to 2160P@30fps YUY2: max to 1080P@5fps |
| Lens & Aperture | F1.58~F3.95 |
| Optical Zoom | 20x optical zoom |
| Digital Zoom | 16x optical zoom |
| Zoom Speed | 1~8 |
| Focal Length | f=6.25mm~125mm |
| Horizontal Angle | 59.6°~3.5° |
| Vertical Angle | 35.7°~2.0° |
| Diagonal Angle | 66.6°~4.0° |
| AI Support | Yes |
| AI Mode | Single Person Tracking/Multiple Person Tracking/Area Tracking |
Minimum Illumination | 0.5 Lux @(F1.8, AGC ON) |
Shutter | 1/30s~1/10000s |
| Backlight Compensation | Auto / Manual |
| Digital Noise Reduction | 3D DNR |
| SNR | ≥55dB |
| Exposure | H.264, H.265, MJPEG, YUY2 |
| Foucs | Auto/Manual |
| Video Encoding Format | H.264/H.265/MJPEG |
| Pan Rotation | 350°(±175°) |
| Tilt Rotation | 180°(±90°) |
| Auto Flip | No |
| Image Freeze | Yes |
| PoE | Yes |
| Preset Positions | Remote: 10; Serial Port: 255 |
| Preset Accuracy | 0.1° |
| Preset Call-up Speed | Pan 0.1°/s~100°/s; Tilt 0.1°/s~80°/s |
| Video Compression | H.264/H.265/MJPEG |
| Video Stream | Primary Stream, Secondary Stream |
| Main Stream Resolution | 3840*2160, 1920*1080, 1280*720, etc. |
| Sub Stream Resolution | 720*480, 320*240, etc. |
| Bit Rate | 32Kbps~20480Kbps |
| Bit Rate Type | VBR, CBR |
| Frequency | 50Hz/60Hz |
| Frame Rate | 50Hz: 1fps~50fps 60Hz: 1fps~60fps |
| Audio Compression | AAC, G711A |
| Audio Bit Rate | 96Kbps, 128Kbps |
| Network Protocol | NDI|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, Support VISCA Over IP, DHCP, GB/T28181, Multicast, etc. |
| Support operating system | Windows/macOS/Android/Linux |
| Color Space compression | YUY2/H.264/MJPEG/H.265 |
| Video Format | H.264: max to 2160P@30fps H.265: max to 2160P@30fps MJPEG: max to 2160P@30fps YUY2: max to 1080P@5fps |
| USB Video Communication Protocol | UVC 1.1~1.5 |
| UVC PTZ Control | Yes |

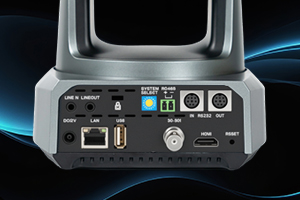

| HD Output | 1*HDMI, 1*SDI, 1*USB 2.0 |
| Network interface | 1*RJ45(Supports PoE) |
| USB Interface | 1*USB2.0, Type-A Port |
| Audio Interface | 1* Line In, 3.5mm Audio Jack 1*Line Out, 3.5mm Audio Jack |
| Communication Interface | 1*RS232 In: 8-pin mini-DIN, Max Distance: 30m, VISCA/Pelco-D/Pelco-P Protocol 1*RS232 Out: 8-pin mini-DIN, Max Distance: 30m, VISCA Protocol 1*RS485: 2-pin Phoenix Terminal, Max Distance: 1200m, VISCA/Pelco-D/Pelco-P Protocol |
| Power Interface | JEITA Type(DC IN 12V) |
| Input Voltage | DC12V |
| Input Current | 2A |
| Operating Temperature | 0°C~40°C |
| Operating Humidity | 20%~80%RH |
| Power Consumption | 24W(Max.) |
| Dimension(Beofore/After Package) | 156.1*176.4*175.3mm/285*217*197mm |
| Net/Gross Weight | 1.51kg/2.6kg |
| Warranty | 3 Years Parts & Labor |
