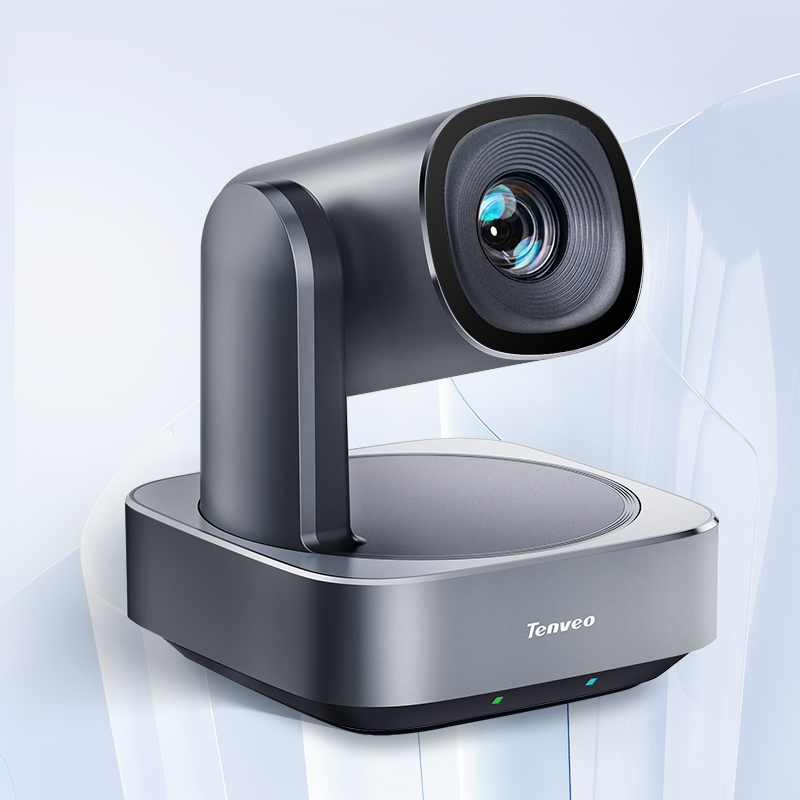

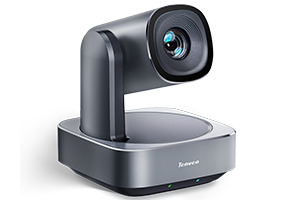

USB HDMI 20X optical zoom vidoe conference PTZ camera
TEVO-VL20H 20X Optical Camera USB HDMI PTZ  1080P Camera
TEVO-VL20H 20X Optical Camera USB HDMI PTZ  1080P CameraTEVO-VL20H 20X Optical Camera USB HDMI PTZ  1080P CameraTEVO-VL20H 20X Optical Camera USB HDMI PTZ  1080P CameraTEVO-VL20H 20X Optical Camera USB HDMI PTZ  1080P Camera
USB HDMI 20X optical zoom vidoe conference PTZ camera
1. 20X optical zoom
2. Sleek and intelligent design
3. 1080P video resolution
4. Preset: 10 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
5. USB, HDMI
6. 2.8" inch high quality, 2.38MP (16:9)CMOS sensor
Product introductionTech SpecPackagingSend inquiry






20X Optical Zoom

20X optical Zoom, 1080P Resolution, Sony CMOS Sensor allow you to enjoy a crystal image. Premium PTZ Camera With superior Imaging System.

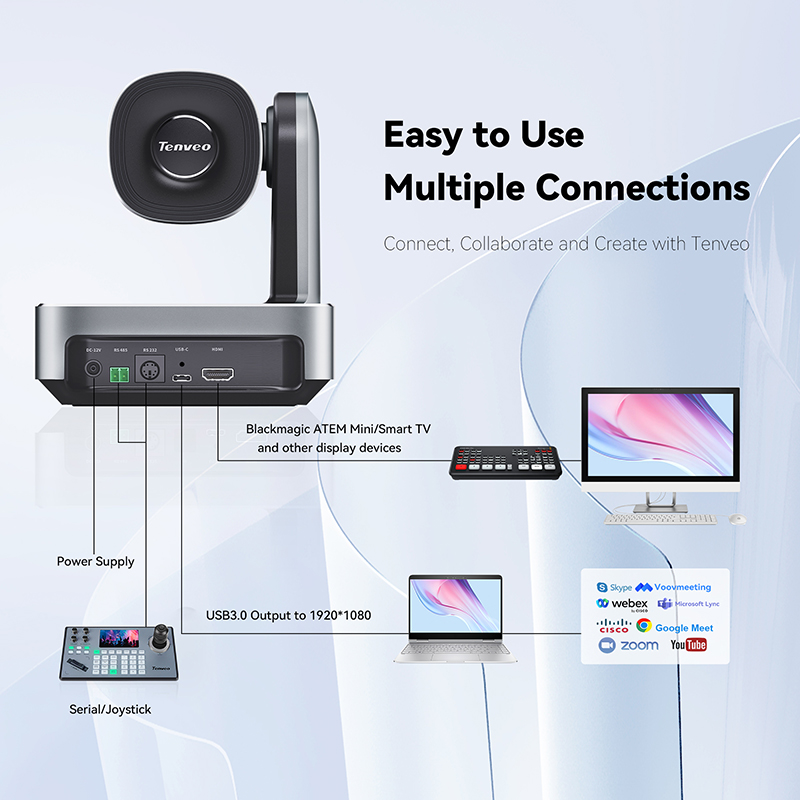

Multiple Interfaces

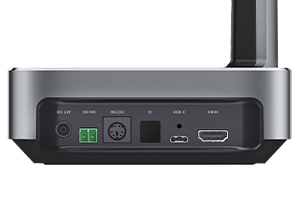

The  camera is compatible with multiple devices through USB3.0, HDMI, RS485, RS232 interfaces.


Universal Compatibility

Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.


Easy to Use

Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.


Quiet Rotation

The horizontal 350 ° smooth and stable PTZ rotation is safe without jitter, and the whole process is quiet without noise.


Quick Auto Focus

Advanced AF focusing algorithm is adopted, focusing speed is faster, and professional IQ image debugging enables the zoomed image to be displayed quickly and clearly.



Model
TEVO-VL20H
Image Sensor
1/2.8''SONY CMOS
Effective Pixels2.38MP, 16:9
Lensf=5.9-94.4mm
Zoom20x optical zoom
Video InterfacesHDMI, USB3.0
Pan/Tile Rotation±175°, -90°~+90°
Horizontal Angle52.1°(W)-3.4°(T)
Vertical Angle29.3°(W)-1.9°(T)
Diagonal Angle59.8°(W)-3.9°(T)
Backlight Compensation
Support
Video Format1080p@60/50/30/25fps, 720p@60/50/30/25fps,640*480P@30fps,320*240P@30fps
SNR>50dB
FocusAuto / Manual
Digital Noise Reduction2D & 3D  Noise Reduction
ExposureAuto / Manual
Video Compression FormatH.264, H.265, MJPG, YUY2
Control ProtocolVISCA/Pelco-D/Pelco-P;Baud Rate:9600/4800/38400/2400
Control InterfaceRS232 (input only), RS485, USB3.0 C(UVC1.1)
Dimension(W*H*D)171.6*192.6*171.6mm/260*217*197mm (before / after packing)
N.W. / G.W1.43kg/2.096kg

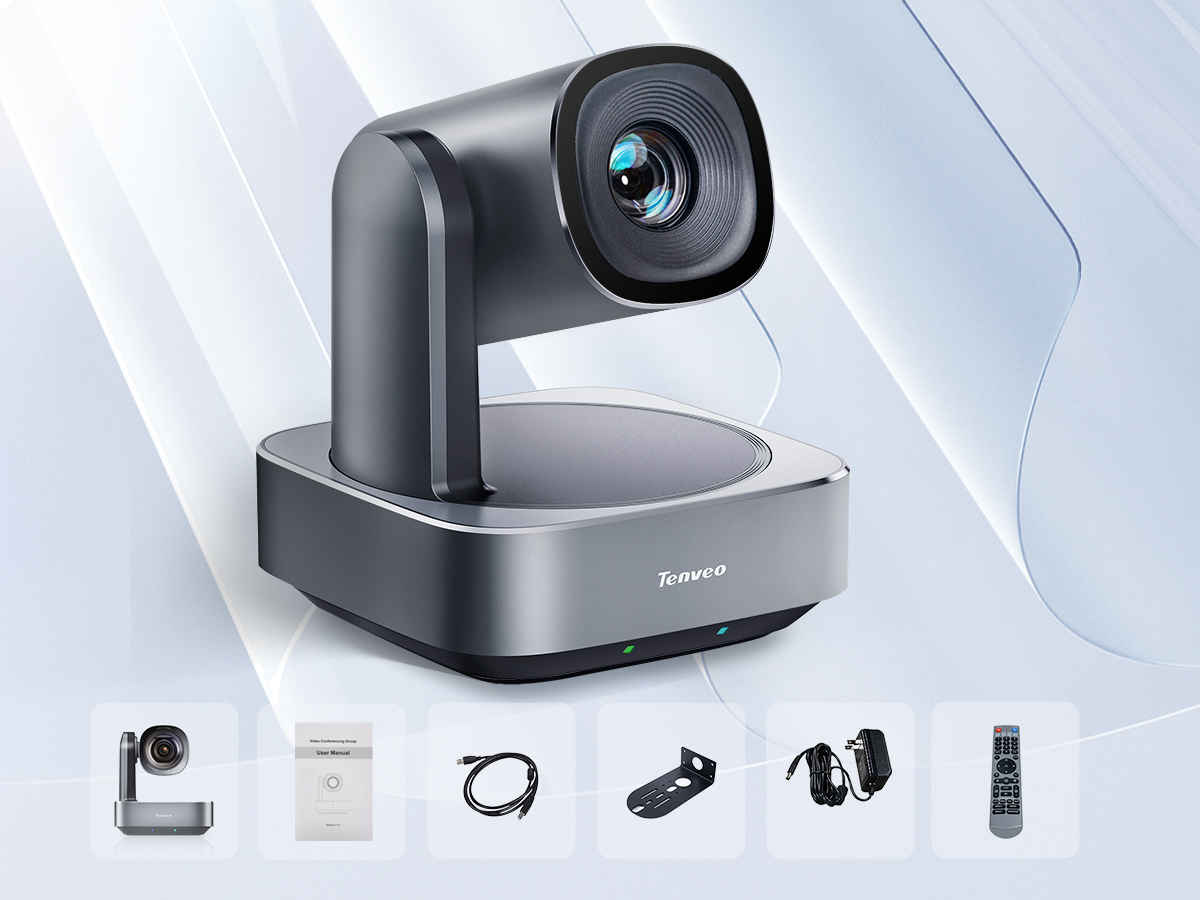

Accessory1xCamera; 1xUSB Cable;1xPower Adapter; 1xWall Mount; 1xManual
Warranty3 Years Parts & Labor
