HDMI USB RJ45 SDI camera 20x Zoom PTZ Video Confernce Room Camera
TEVO-VHD620A auto-tracking 20X optical Zoom Conference Camera
TEVO-VHD620A auto-tracking 20X optical Zoom Conference CameraTEVO-VHD620A auto-tracking 20X optical Zoom Conference CameraTEVO-VHD620A auto-tracking 20X optical Zoom Conference CameraTEVO-VHD620A auto-tracking 20X optical Zoom Conference Camera
HDMI USB RJ45 SDI camera 20x Zoom PTZ Video Confernce Room Camera
1. 20X optical zoom
2. Auto-framing and auto-tracking function
3. 1080P video resolution
4. Preset: 10 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
5. USB, HDMI, RJ45, SDI
6. 2.8" inch high quality, 2.07MP (16:9)CMOS sensor
Product introductionTech SpecPackagingSend inquiry





20X Optical Zoom HD Camera

Pan: 0 to 340 degree. Tilt: 0 to 120 degree. 20X optical Zoom, 2.07 mega pixel,HD 1080P 60fps video output, allow you to enjoy a nice image.


Easy Preset Setting

The 20x PTZ camera could be controlled to the focused points quickly by the presets in the meetings. It's very efficient for discussion collobaration.


Universal Compatibility

Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.


Easy to Use

Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.


Quiet Rotation

The horizontal 350 ° smooth and stable PTZ rotation is safe without jitter, and the whole process is quiet without noise.


Quick Auto Focus

Advanced AF focusing algorithm is adopted, focusing speed is faster, and professional IQ image debugging enables the zoomed image to be displayed quickly and clearly.





ModelTEVO-VHD620A
Sensor1/2.8''SONY CMOS
Effective pixel2.07 mega pixel
Video output pixel1080p@60/50/30/25fps, 720p@60/50/30/25fps
Zoom20x optical zoom
Lensf=4.6mm ~ 92mm
ApertureF1.8 ~ F3.6
Horizontal angle62.3° ~ 3.46°

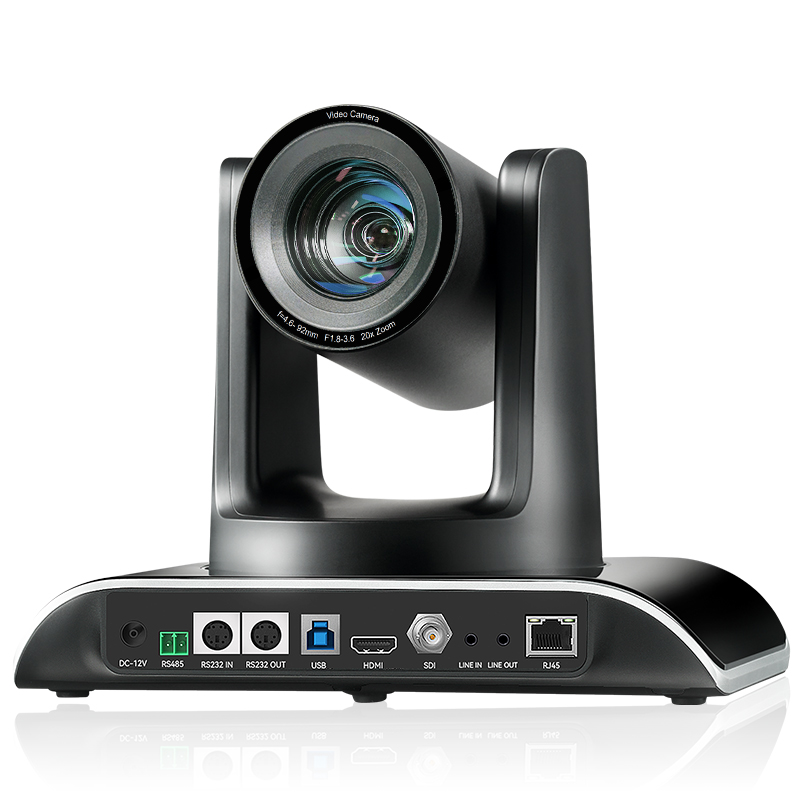

Video outputUSB 3.0, HDMI, RJ45, SDI
Video resolution1080P (1920 *1080)
Siginal standardNTSC/PAL
Preset position64
Control temernalRS-232,RS485
Shutter 1/30s~1/10000s, auto
Baud Rate38400/9600bps
Control protocolVISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB protocolUVC1.1
Minimal Illumination0.1Lux
SNR≥50dB
Video encoding formatH.264, MJPEG, YUV
Horizontal Rotation350°(±175°)0.1°/s~100°/s
Vertical Rotation90°(±45°)0.1°/s~80°s
Power supplyDC 12V/2A
Power comsumption12W
