12X optical Zoom, 1080P Resolution, Sony CMOS Sensor allow you to enjoy a crystal image. Premium PTZ Camera With superior Imaging System.

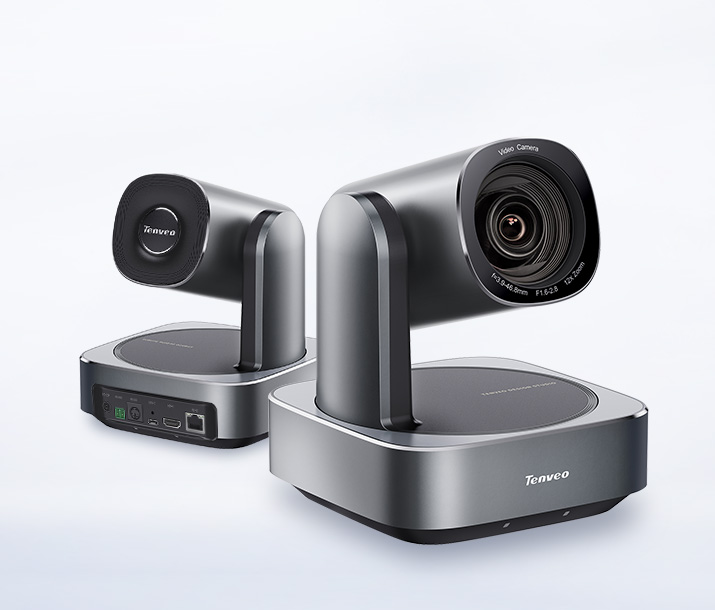

The VLoop camera is compatible with multiple devices through USB, HDMI,RJ45, RS485, RS232 interfaces. It also supports PoE.

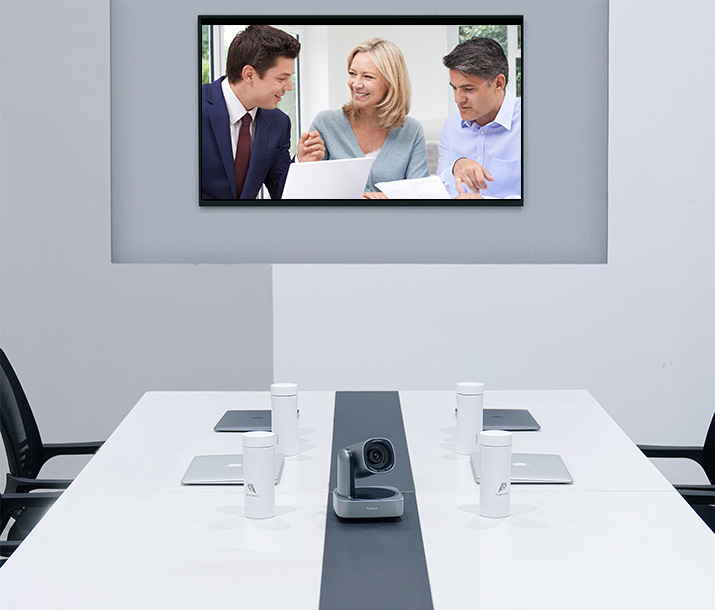

Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.
Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.

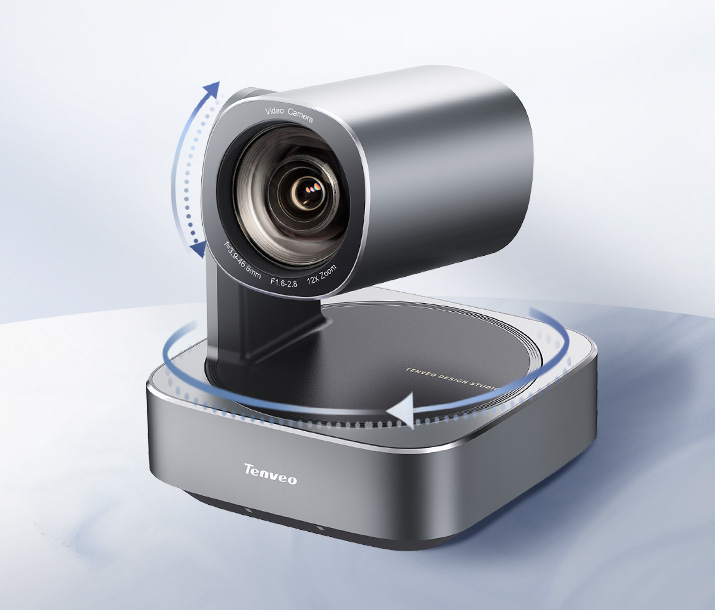

The horizontal 350 ° smooth and stable PTZ rotation is safe without jitter, and the whole process is quiet without noise.
Advanced AF focusing algorithm is adopted, focusing speed is faster, and professional IQ image debugging enables the zoomed image to be displayed quickly and clearly.
| Model | TEVO-VL12N |
| Image Sensor | Sony IMX 415 1/2.8" CMOS |
| Effective Pixels | 2.07MP, 16:9 |
| Lens | f=4.1-49.2mm |
| Zoom | 12x optical zoom |
| Video Interfaces | HDMI, TYPE-C, Ethernet |
| Pan/Tile Rotation | ±175°, -90°~+90° |
| Horizontal Angle | 70.82°(W)-6.57°(T) |
| Vertical Angle | 42.06°(W)-3.76°(T) |
| Diagonal Angle | 78.36°(W)-7.5°(T) |
| Backlight Compensation | Support |
| Video Format | 1080p@60/50/30/25fps, 720p@60/50/30/25fps,640*480P@30fps,320*240P@30fps |
| SNR | >50dB |
| Focus | Auto / Manual |
| Digital Noise Reduction | 2D & 3D Noise Reduction |
| Exposure | Auto / Manual |
| Video Compression Format | H.264,H.265,MJPG,YUY2,NV12 |
| LAN | 10M/100M adaptive Ethernet port, Support POE IEEE802.3af |
| Network Protocol | RTSP, RTMP, ONVIF, GB28181; Support VISCA Over IP |
| Control Protocol | VISCA/Pelco-D/Pelco-P;Baud Rate:9600/4800/38400/2400 |
| Control Interface | RS232 (input & output),RS485,TYPE-C(UVC1.1) |
| Dimension（W*H*D） | 171.6*192.6*171.6mm/260*217*197mm (before / after packing) |
| N.W. / G.W | 1.43kg/2.096kg |
| Accessory | 1xCamera; 1xUSB Cable;1xPower Adapter; 1xWall Mount; 1xManual |
| Warranty | 3 Years Parts & Labor |
