TEVO-VHD20U HD 1080p 20x Zoom USB PTZ Video Conference Camera
TEVO-VHD20U(TEVO-20X2MP) 20X Optical Zoom 1080p 60fps HD PTZ Conference Camera
TEVO-VHD20U(TEVO-20X2MP) 20X Optical Zoom 1080p 60fps HD PTZ Conference CameraTEVO-VHD20U(TEVO-20X2MP) 20X Optical Zoom 1080p 60fps HD PTZ Conference CameraTEVO-VHD20U(TEVO-20X2MP) 20X Optical Zoom 1080p 60fps HD PTZ Conference CameraTEVO-VHD20U(TEVO-20X2MP) 20X Optical Zoom 1080p 60fps HD PTZ Conference Camera
TEVO-VHD20U HD 1080p 20x Zoom USB PTZ Video Conference Camera
20x optical zoom
Sleek and intelligent design

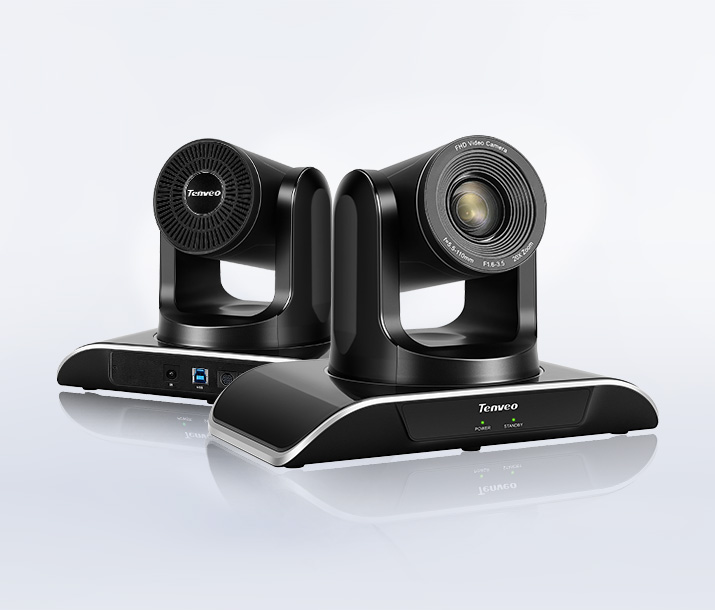

Plug & Play USB2.0+HDMI Connectivity
Crystal clear HD1080P image quality
Preset: 10 via IR remote setting (255 via RS232)
59.8° Wide field of view with no video distortion
1/2.8″ HD color CMOS, 2.1MP (16:9) CMOS sensor
Superior quality with Full Glass Lens Material

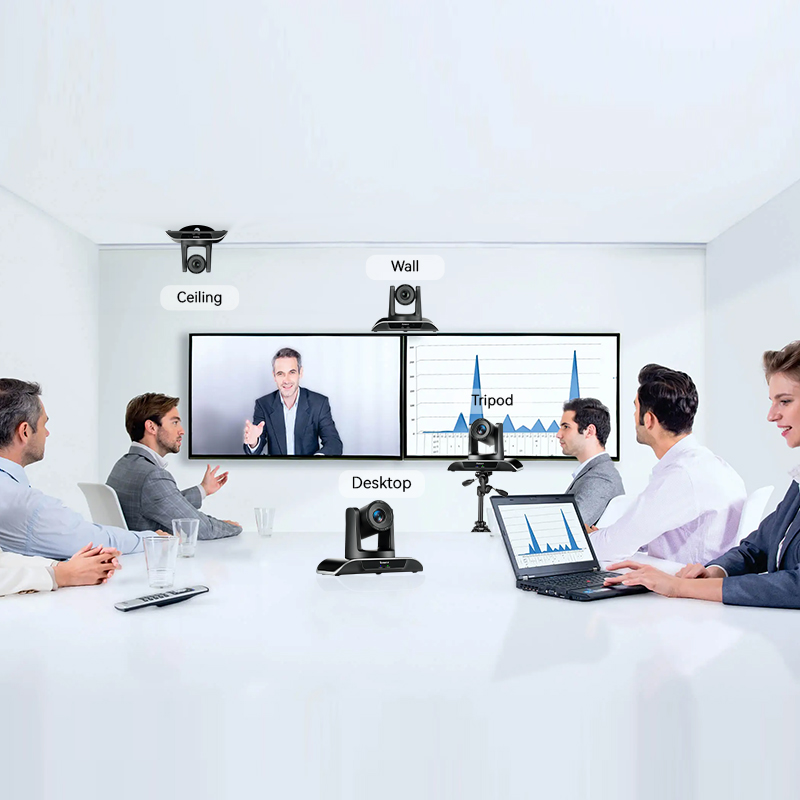

Support ceiling mount, wall mount and tripod mount (Reverse mountable)
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
Compatible with most leading video conferencing software and platform
Utilizing belt drive technology the PTZ is ultra-quiet and fast, while being very smooth

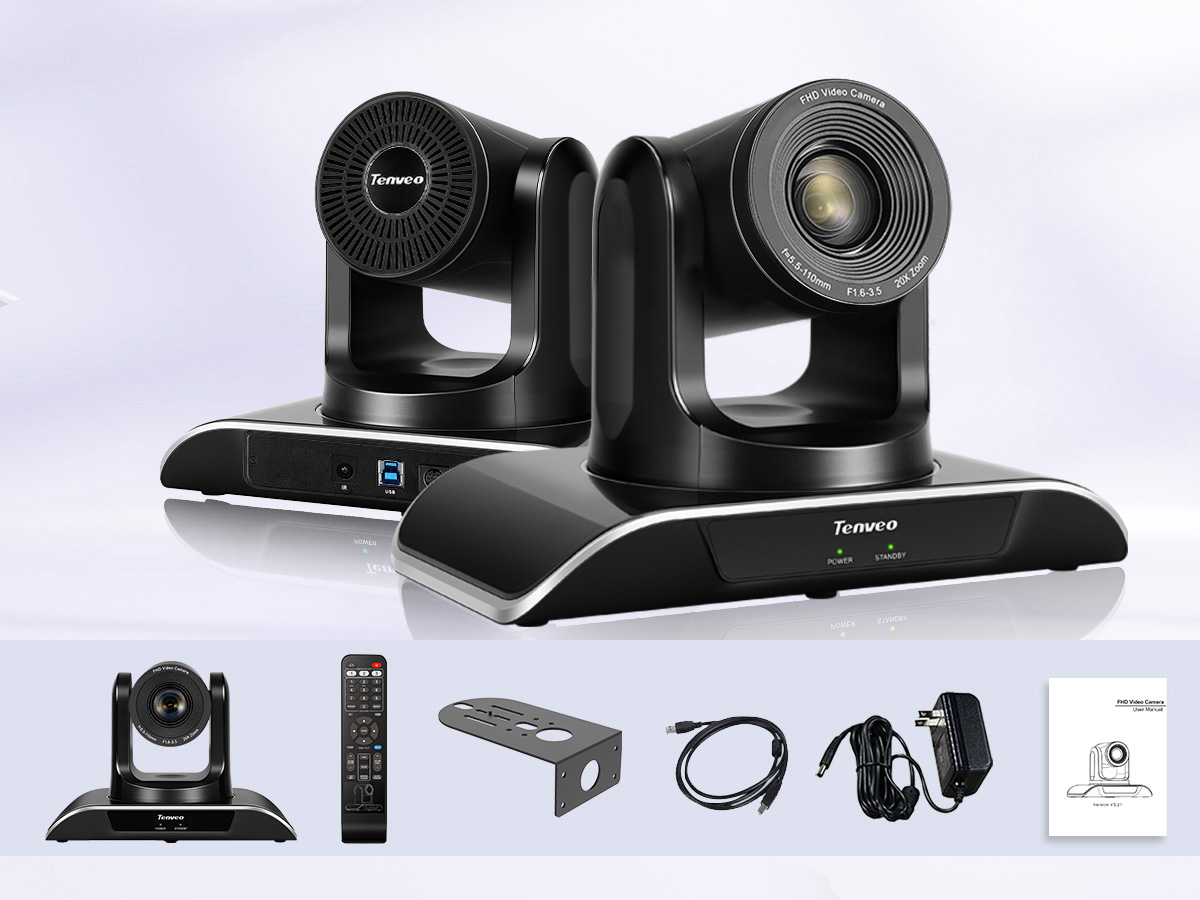

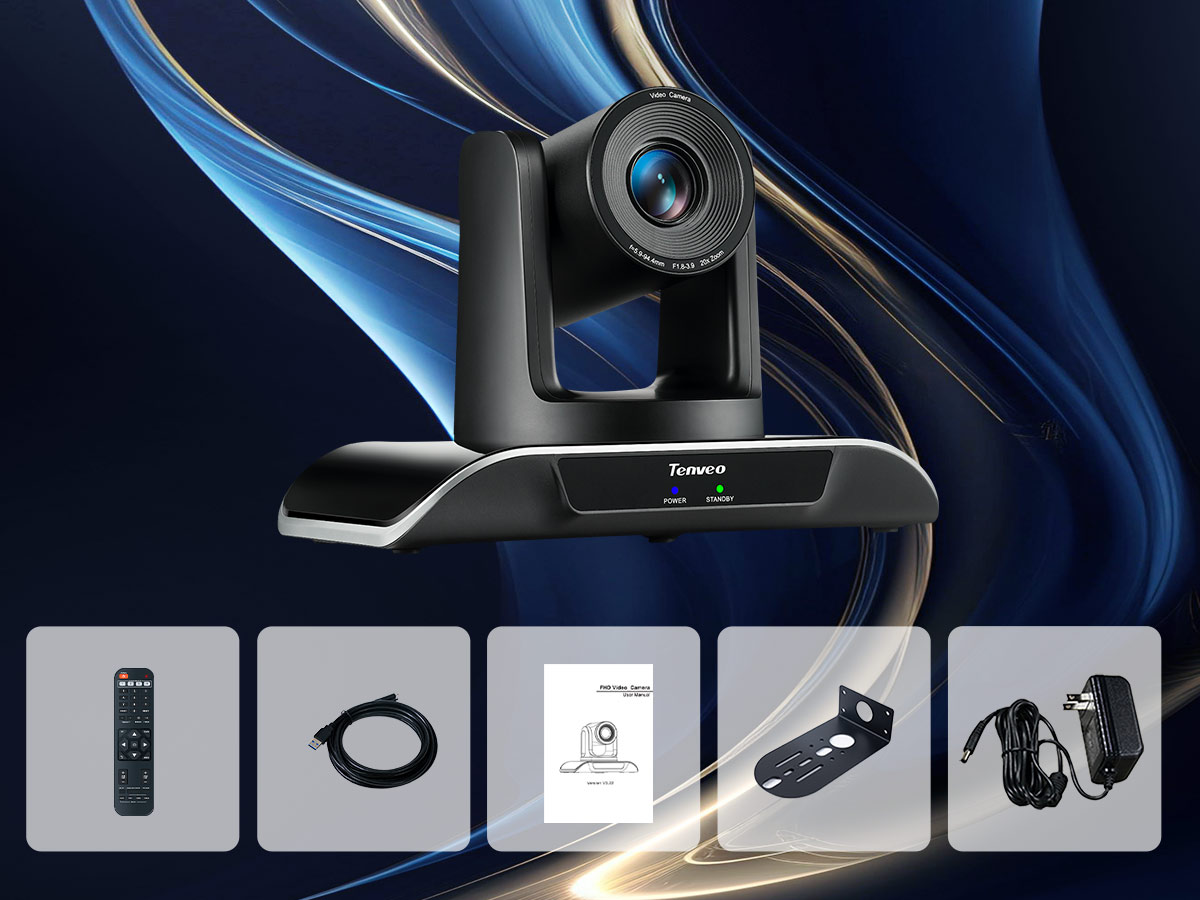

Product introductionTech SpecPackagingSend inquiry

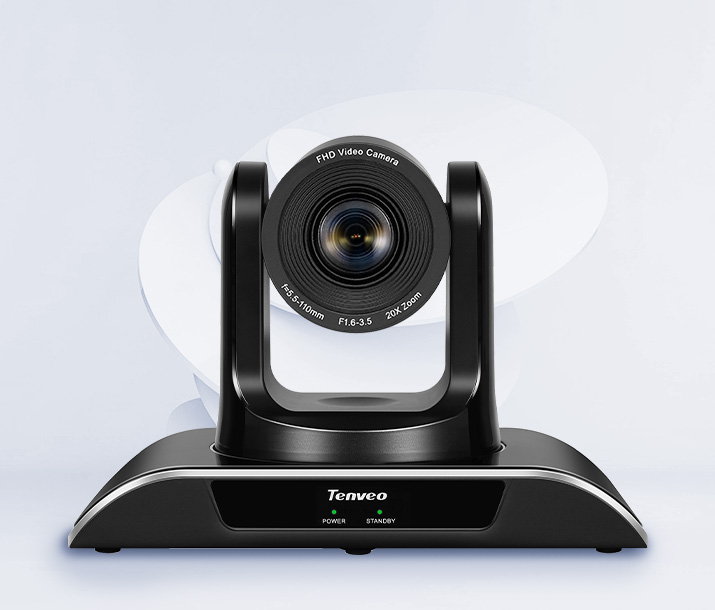

20X Optical Zoom HD Camera

Pan: 0 to 340 degree. Tilt: 0 to 120 degree. 20X optical Zoom, 2.38 mega pixel,HD 1080P 60fps video output, allow you to enjoy a nice image.

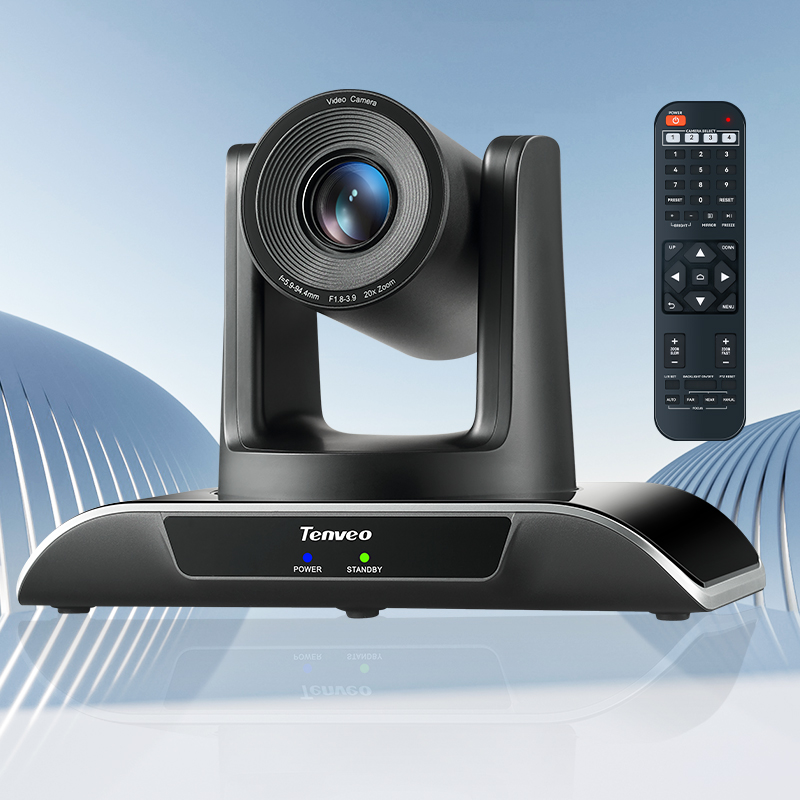

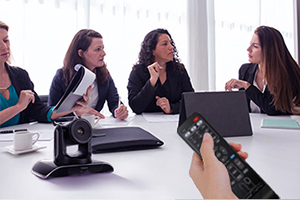

Easy Preset Setting

The 20x PTZ camera could be controlled to the focused points quickly by the presets in the meetings. It's very efficient for discussion collobaration.

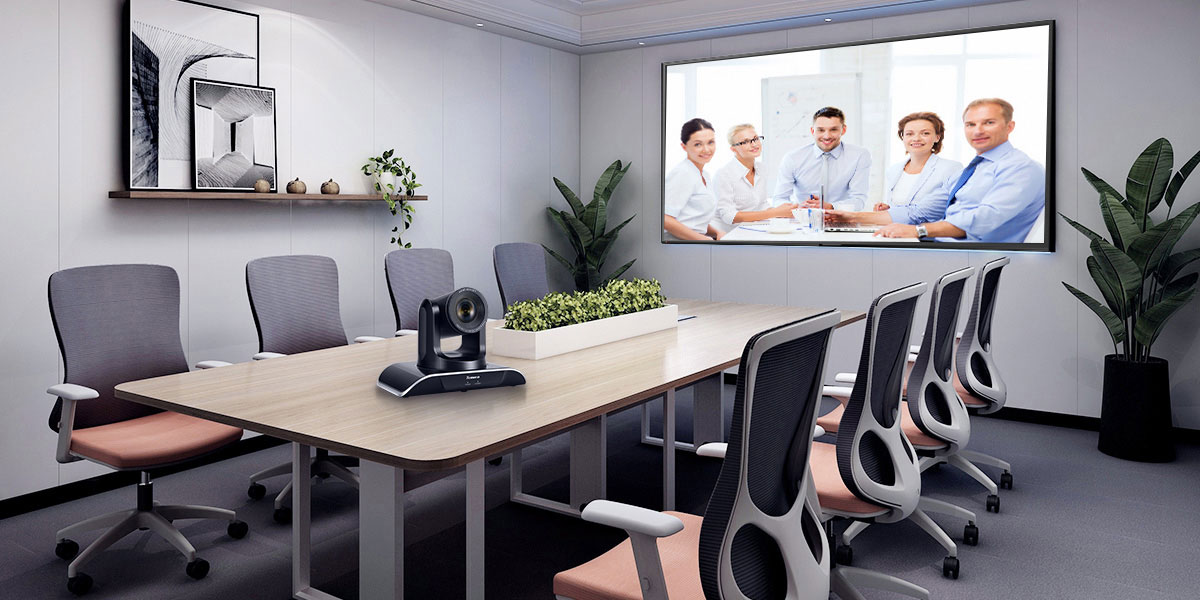

Universal Compatibility

Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.


Easy to Use

Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.

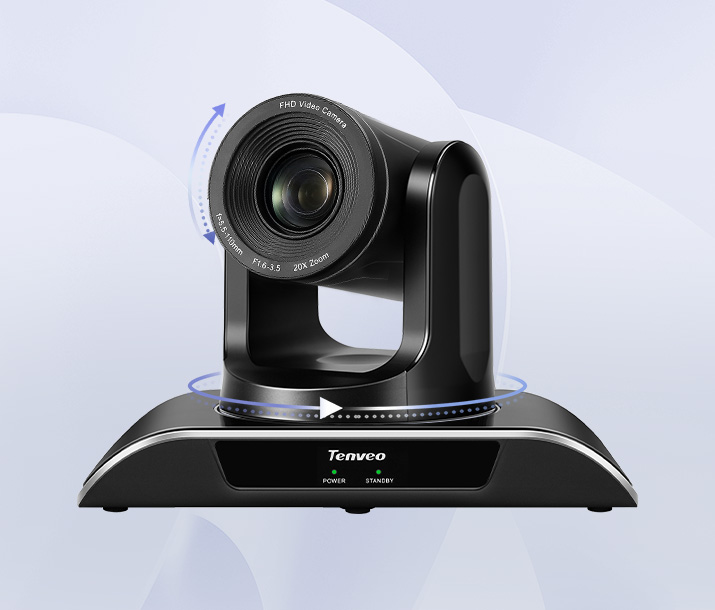

Quiet Rotation

The horizontal 350 ° smooth and stable PTZ rotation is safe without jitter, and the whole process is quiet without noise.


Quick Auto Focus

Advanced AF focusing algorithm is adopted, focusing speed is faster, and professional IQ image debugging enables the zoomed image to be displayed quickly and clearly.


ModelTEVO-VHD20U
Sensor1/2.8 inch CMOS
Effective pixel2.38 mega pixel
Video output pixel1080p@60/50/30/25fps, 720p@60/50/30/25fps
Zoom20x optical zoom

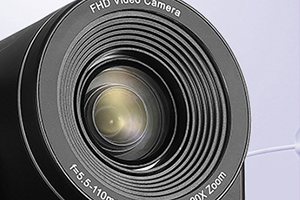

Lensf=5.9-94.4mm
ApertureF1.8-3.9
Horizontal angle52.1°(W)-3.4°(T)

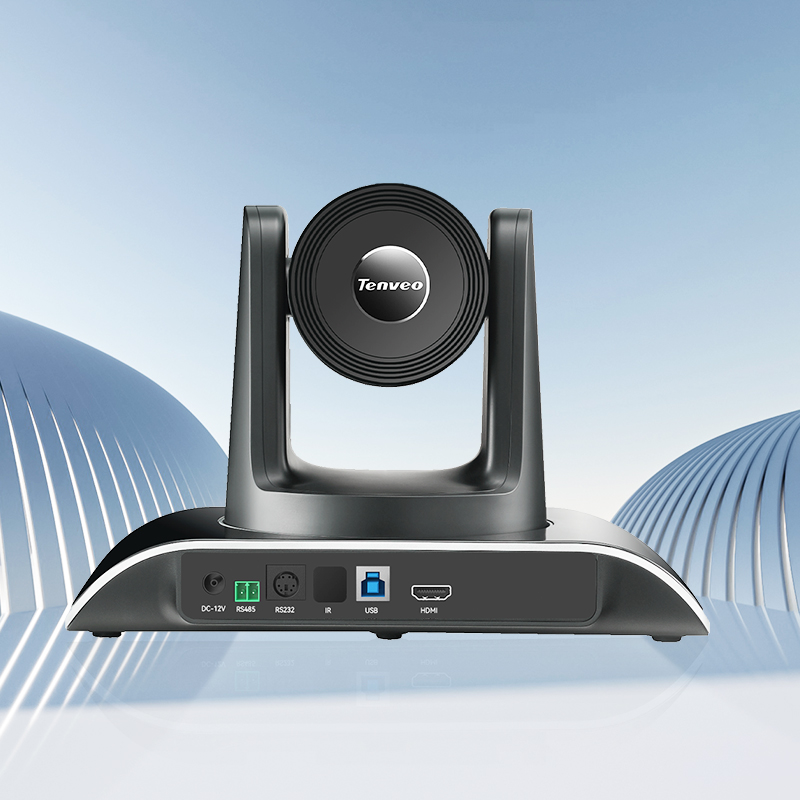

Video outputUSB, HDMI
Video resolution1080P (1920 *1080)
Siginal standardNTSC/PAL
Preset position64
Control temernalRS-232,RS485
Shutter 1/30s~1/10000s, auto
Baud Rate38400/9600bps
Control protocolVISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB protocolUVC1.1
Minimal Illumination0.1Lux
SNR≥50dB
Video encoding formatH.264, MJPEG, YUV
Horizontal Rotation350°(±175°)0.1°/s~100°/s
Vertical Rotation90°(±45°)0.1°/s~80°s
Power supplyDC 12V/2A
Power comsumption12W
