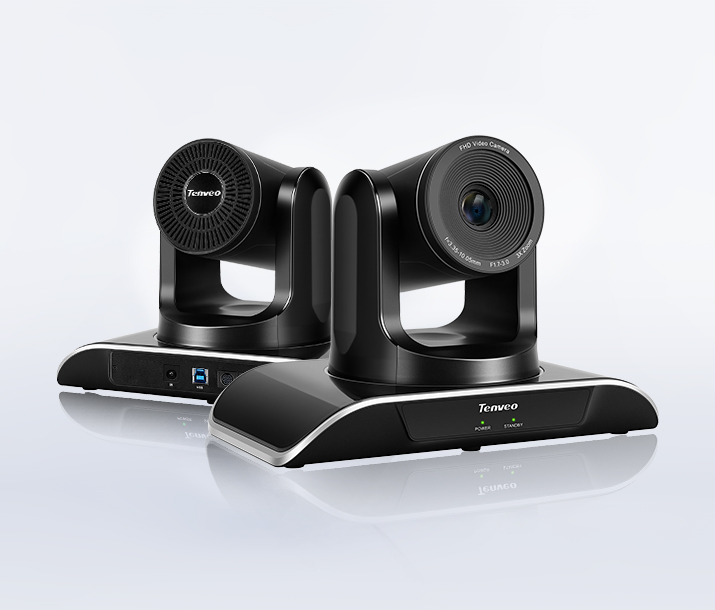

USB Video Conference Camera 3X Optical Zoom

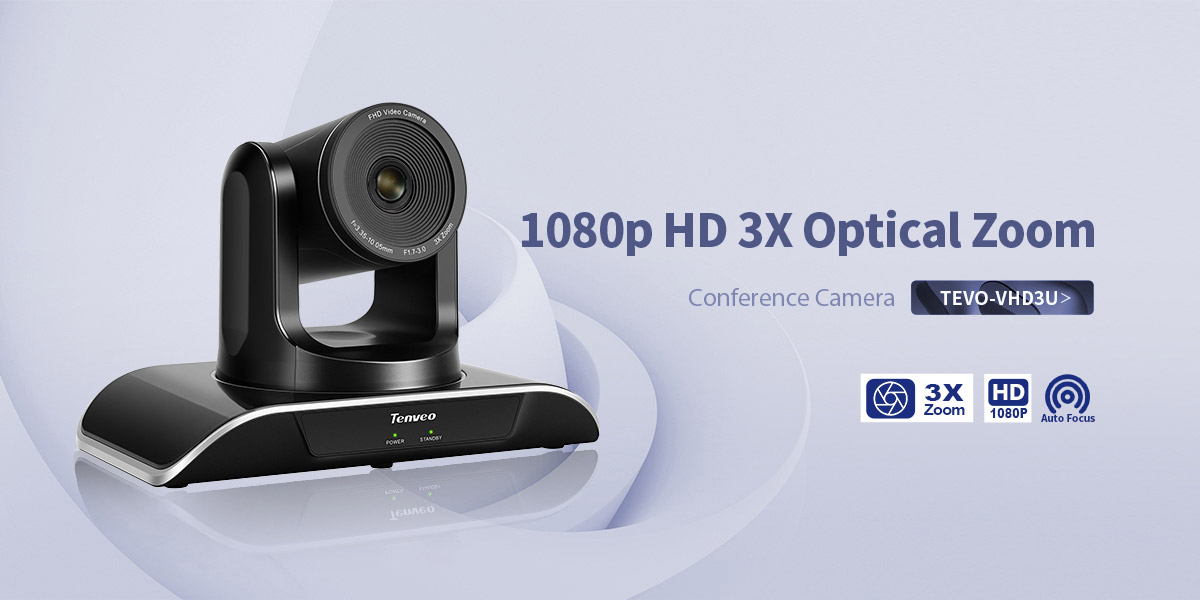

TEVO-VHD3U(TEVO-3X2MP) 3X Optica Zoom 1080p HD PTZ Conference Camera
TEVO-VHD3U(TEVO-3X2MP) 3X Optica Zoom 1080p HD PTZ Conference CameraTEVO-VHD3U(TEVO-3X2MP) 3X Optica Zoom 1080p HD PTZ Conference CameraTEVO-VHD3U(TEVO-3X2MP) 3X Optica Zoom 1080p HD PTZ Conference CameraTEVO-VHD3U(TEVO-3X2MP) 3X Optica Zoom 1080p HD PTZ Conference Camera
USB Video Conference Camera 3X Optical Zoom
1. 3x optical zoom, Sleek and intelligent design, Plug & Play USB+HDMI Connectivity
2. Crystal clear HD1080P image quality, 114 degrees Wide field of view with no video distortion
3. Preset: 9 via IR remote setting (255 via PELCO-P/D/64 via VISCA)
4. 1/2.8 inch high quality, 2.38MP (16:9) CMOS sensor
5. Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
6. Utilizing belt drive technology the PTZ is ultra-quiet and fast

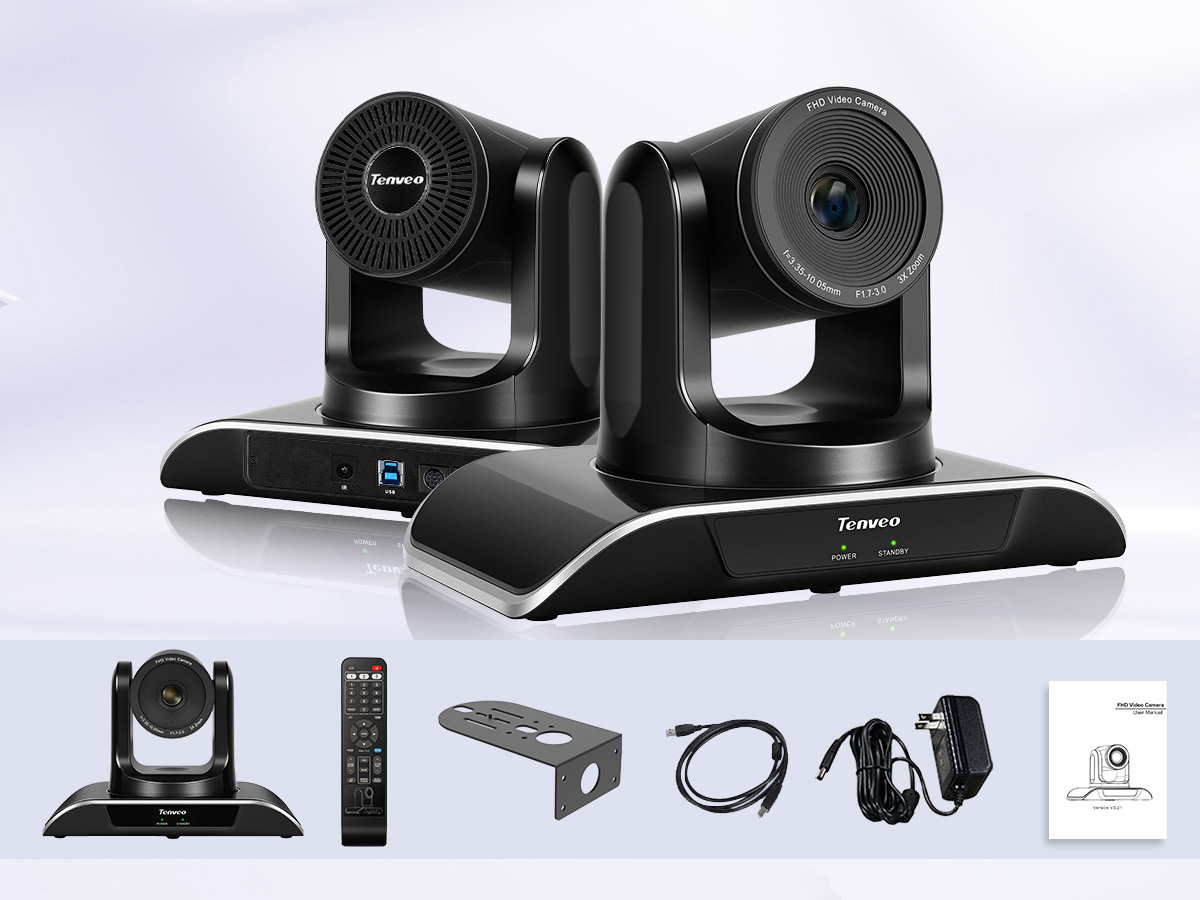

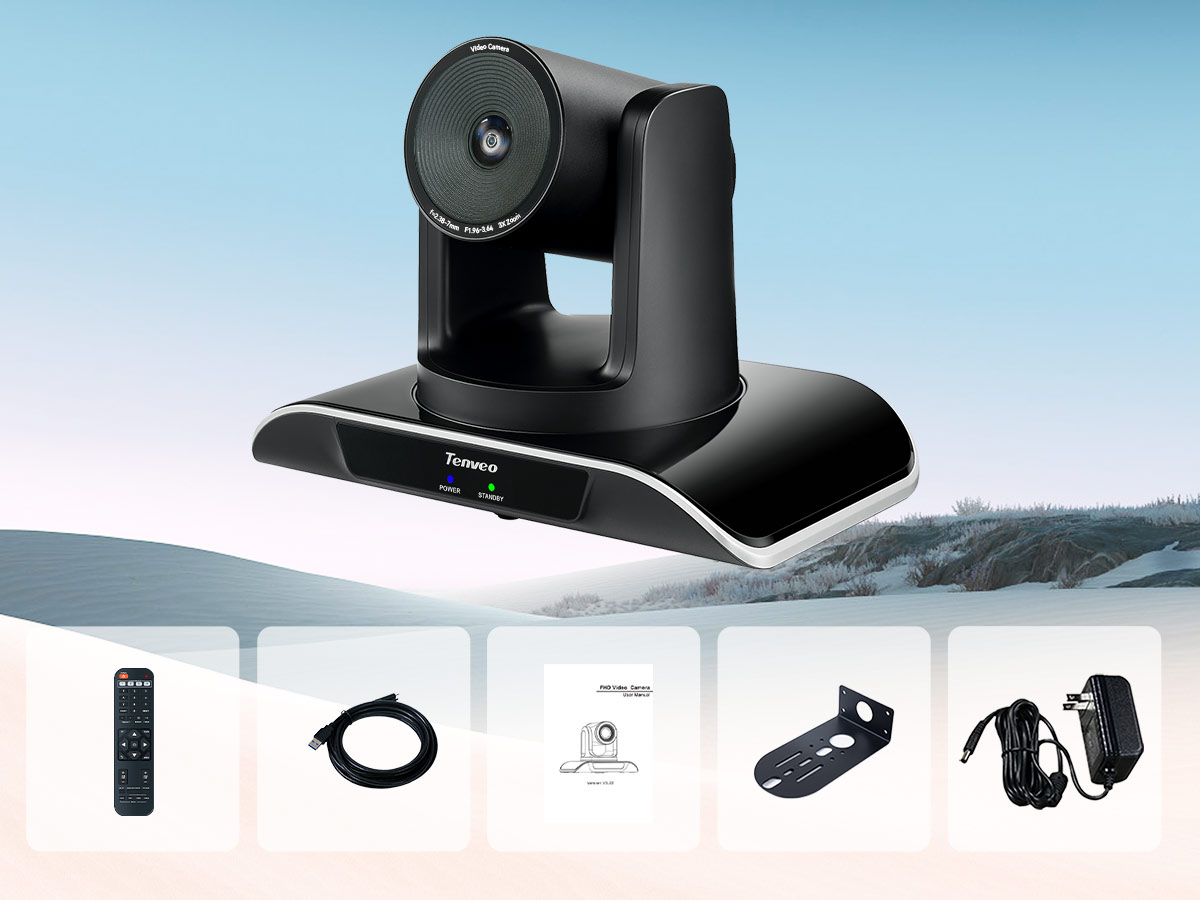

Product introductionTech SpecPackagingSend inquiry

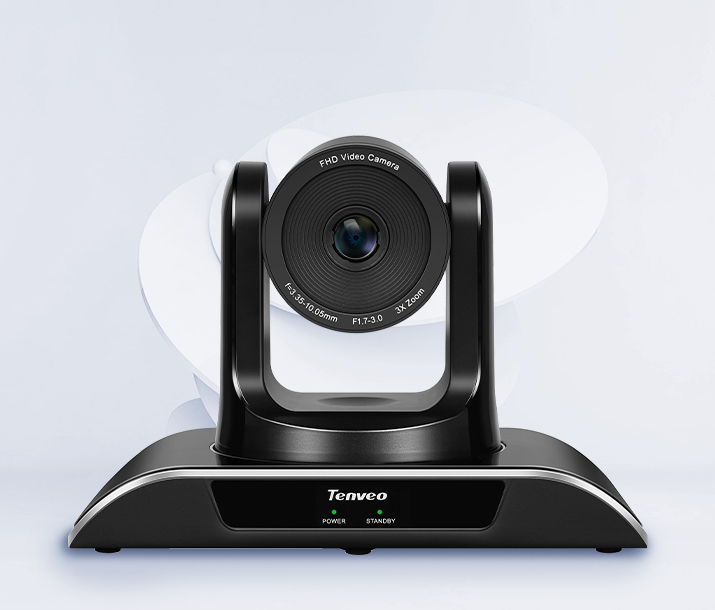

3X Optical Zoom HD Camera

Pan: 0 to 340 degree. Tilt: 0 to 120 degree. 3X optical Zoom, 2.1 mega pixel 3X optical zoom,HD 1080P 60fps video output, allow you to enjoy a nice image.

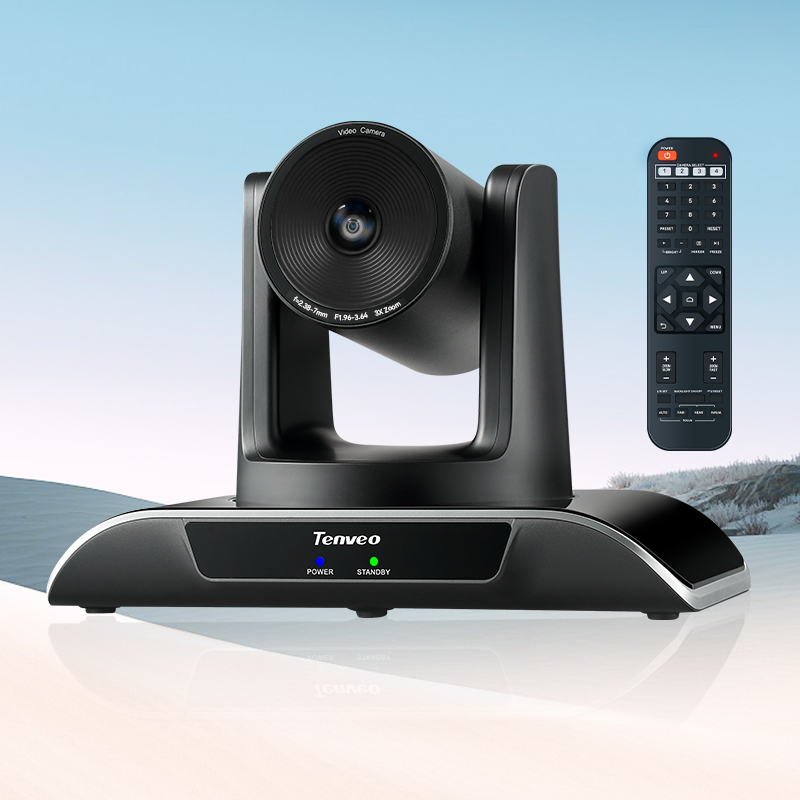

Easy Preset Setting

The 3x PTZ camera could be controlled to the focused points quickly by the presets in the meetings. It's very efficient for discussion collobaration.

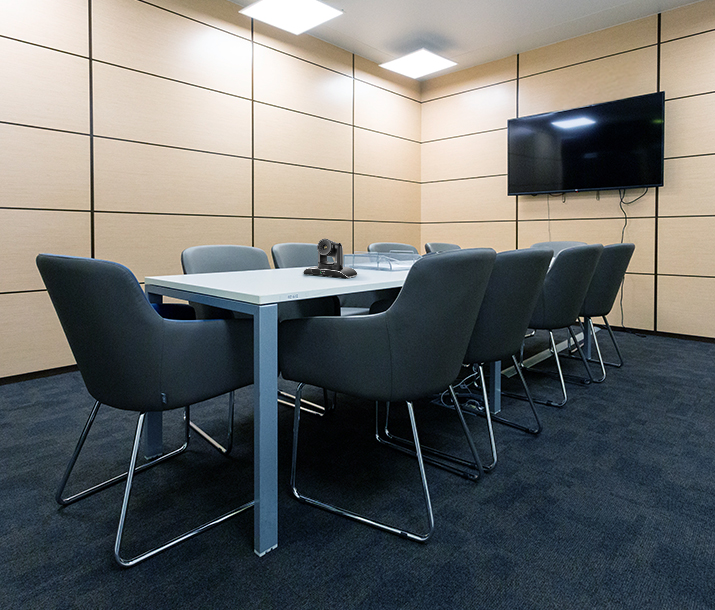

Universal Compatibility

Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.


Easy to Use

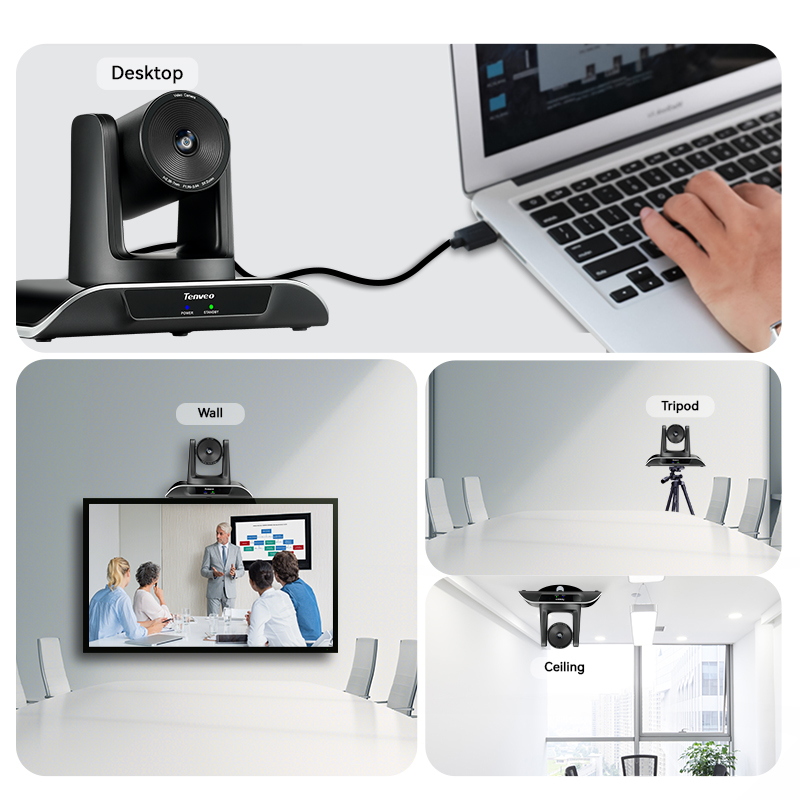

Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.

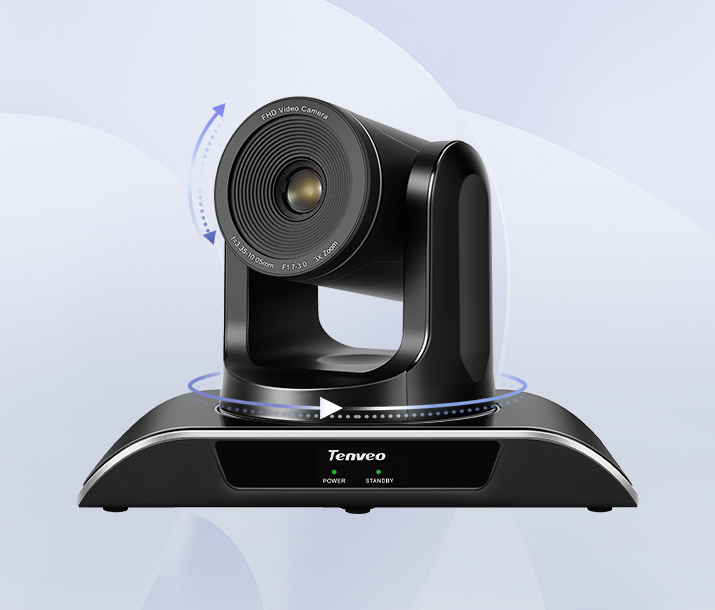

Quiet Rotation

The horizontal 350 ° smooth and stable PTZ rotation is safe without jitter, and the whole process is quiet without noise.

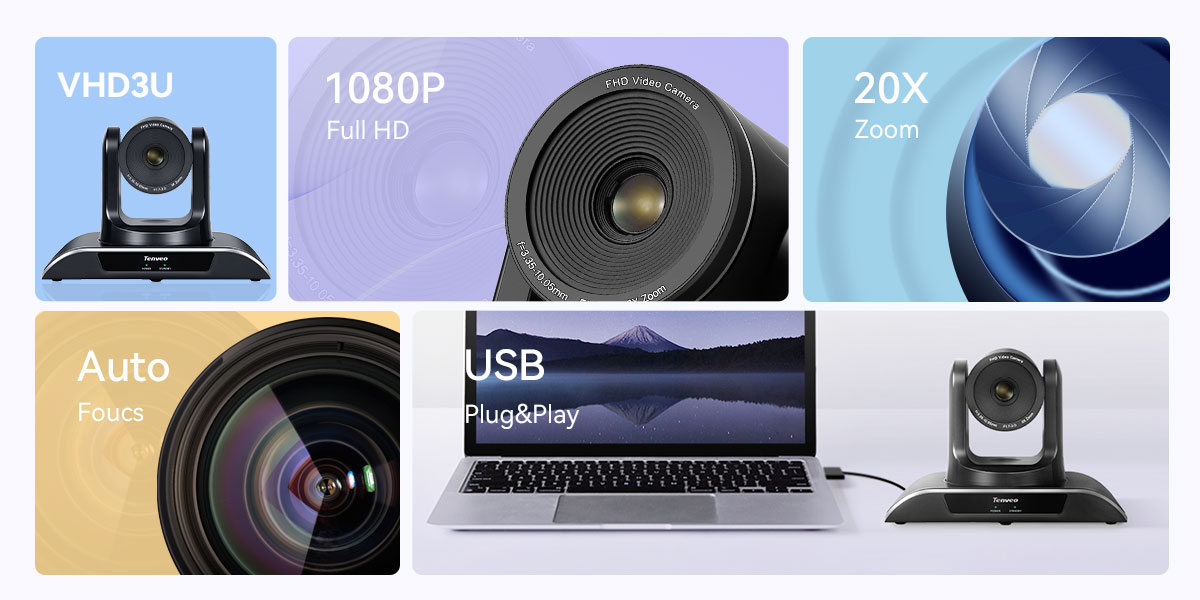

Quick Auto Focus

Advanced AF focusing algorithm is adopted, focusing speed is faster, and professional IQ image debugging enables the zoomed image to be displayed quickly and clearly.


ModelTEVO-VHD3U
Sensor1/2.8 inch CMOS
Effective pixel2.1 mega pixel
Video output pixel1080p@60/50/30/25fp
Zoom3x optical zoom

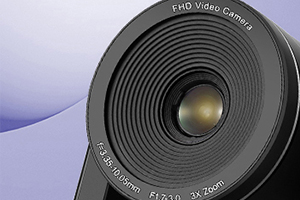

Lensf=2.38-7mm
ApertureF1.7-F3.0
Horizontal angle99.6°(W)-30.6°(T)
Video outputUSB 2.0
Video resolution1080P (1920 *1080)
Siginal standardNTSC/PAL
Preset position64

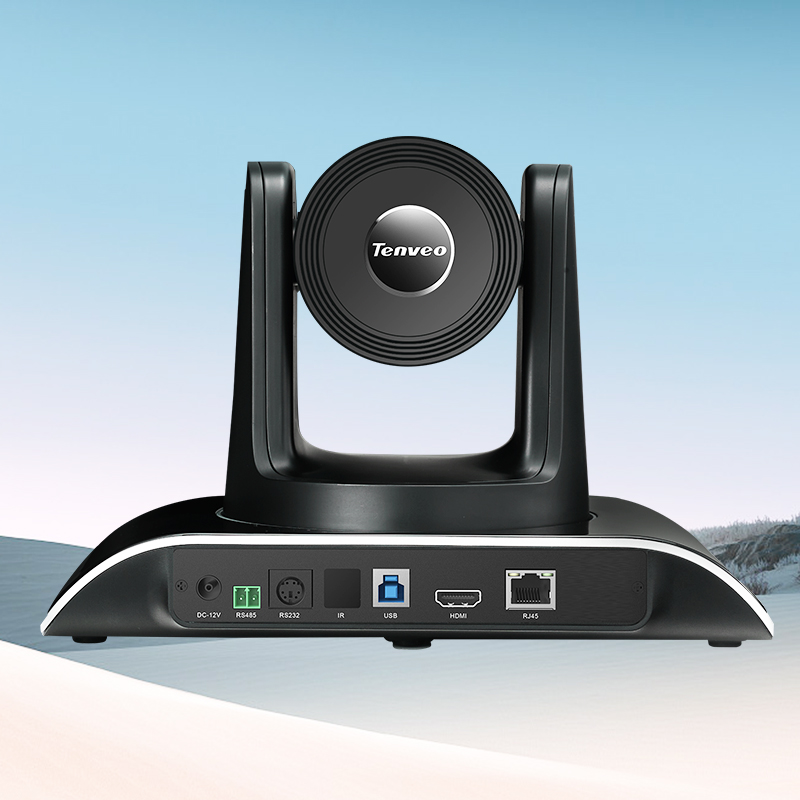

Control temernalRS-232,RS485
Shutter 1/30s~1/10000s, auto
Baud Rate38400/9600bps
Control protocolVISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB protocolUVC1.1
Minimal Illumination0.1Lux
SNR≥50dB
Video encoding formatH.264, MJPEG, YUV
Horizontal Rotation350°(±175°)0.1°/s~100°/s
Vertical Rotation90°(±45°)0.1°/s~80°s
Power supplyDC 12V/2A
Power comsumption12W
