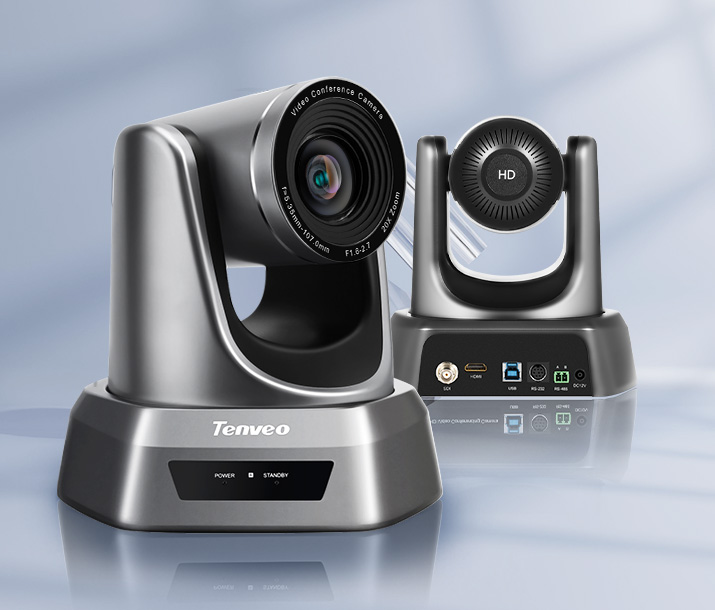

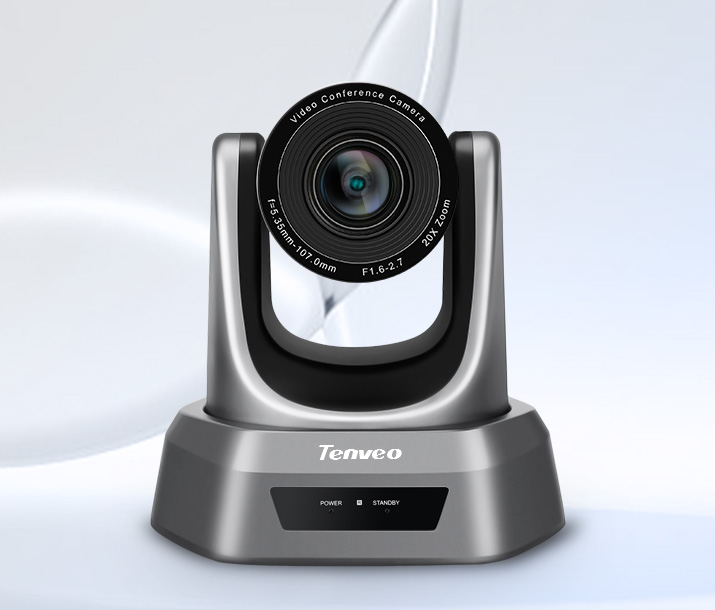

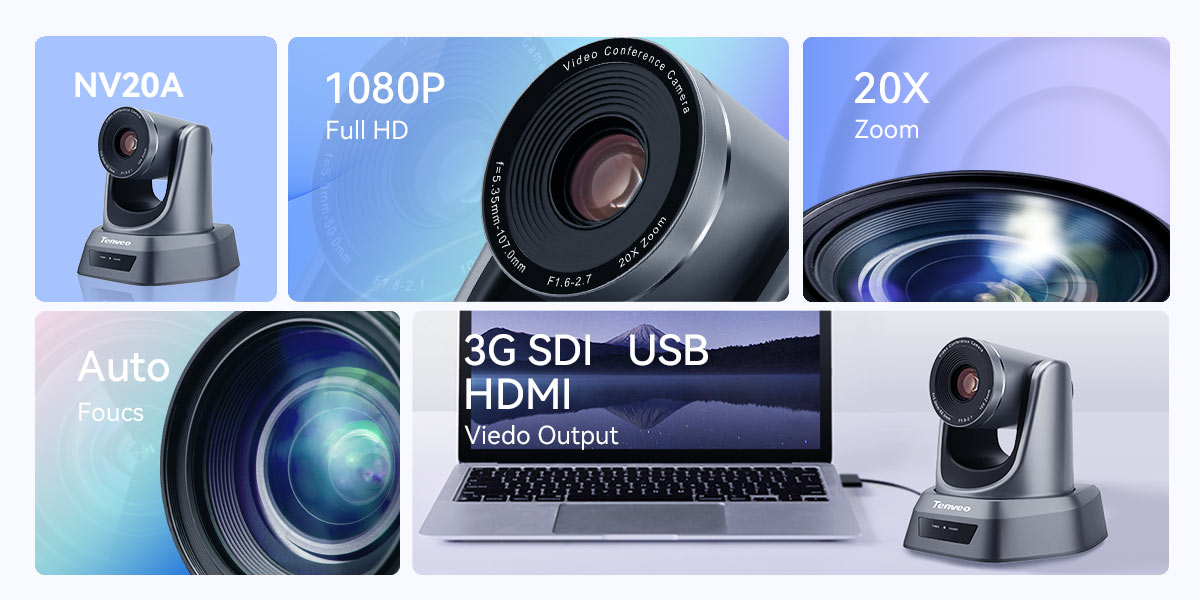

20X optical Zoom, 2.1 mega pixel 20X optical zoom,HD 1080P 30fps video output, allow you to enjoy a nice image.

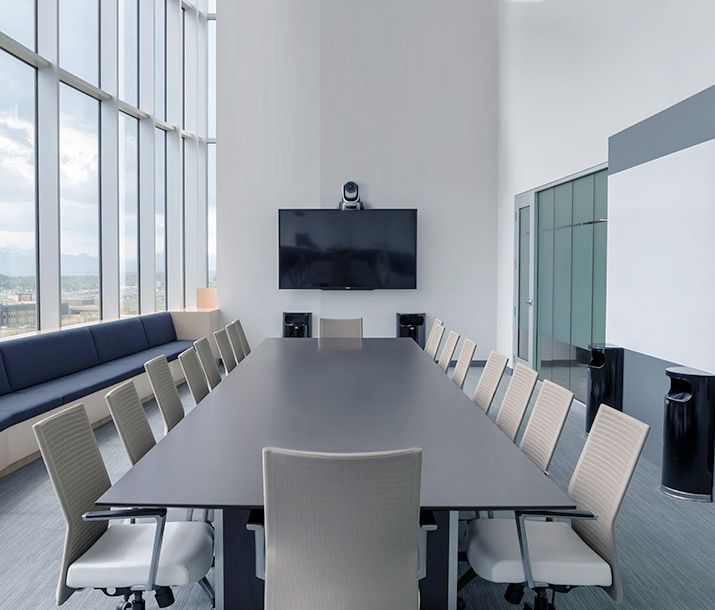

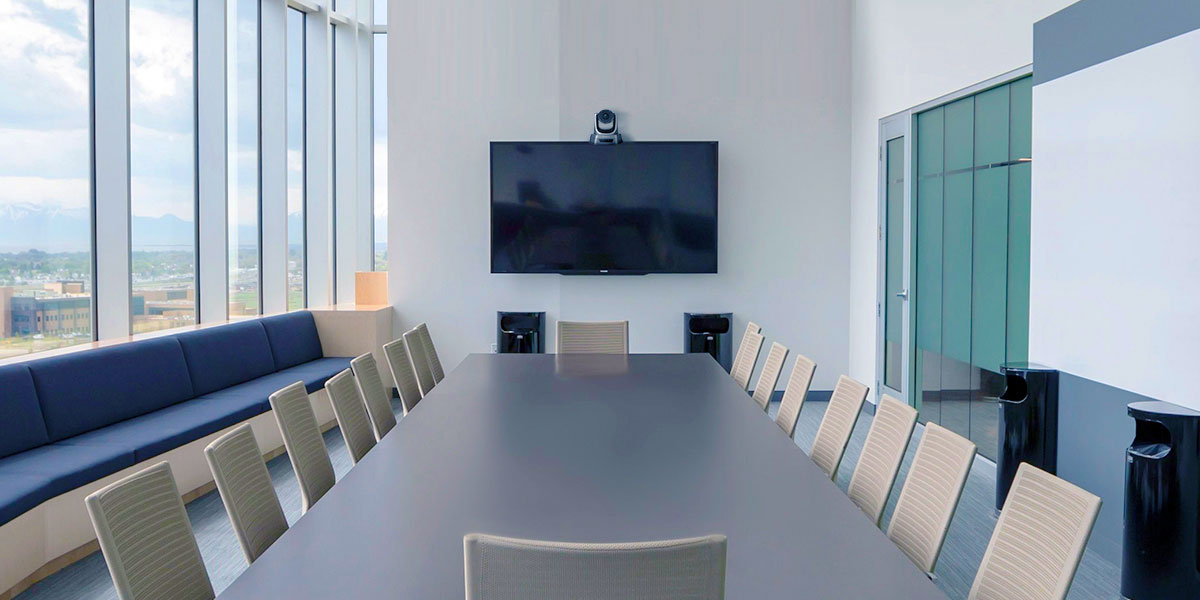

The 20x PTZ camera could be controlled to the focused points quickly by the presets in the meetings. It's very efficient for discussion collobaration.
Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.
Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.
| Sensor | 1/2.9 inch CMOS |
| Effective pixel | 2.1 mega pixel |
| Video output pixel | 1080P30/25, 720P30/25 |
| Zoom | 20x optical zoom |

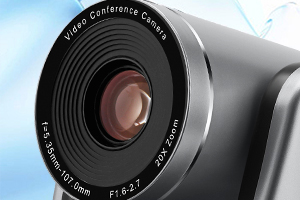

| Lens | f=5.5 mm~99mm |
| Aperture | F1.8～F3.9 |
| Horizontal angle | 55.4°(W)～3.55°(T) |
| Video output | USB 2.0 |
| Video resolution | 1080P (1920 *1080) |
| Siginal standard | NTSC/PAL |
| Preset position | 64 |
| Control temernal | RS-232,RS485 |
| Shutter | 1/30s～1/10000s, auto |
| Baud Rate | 38400/9600bps |
| Control protocol | VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
| USB protocol | UVC1.1 |
| Minimal Illumination | 0.1Lux |
| SNR | ≥50dB |
| Video encoding format | H.264, MJPEG, YUV |

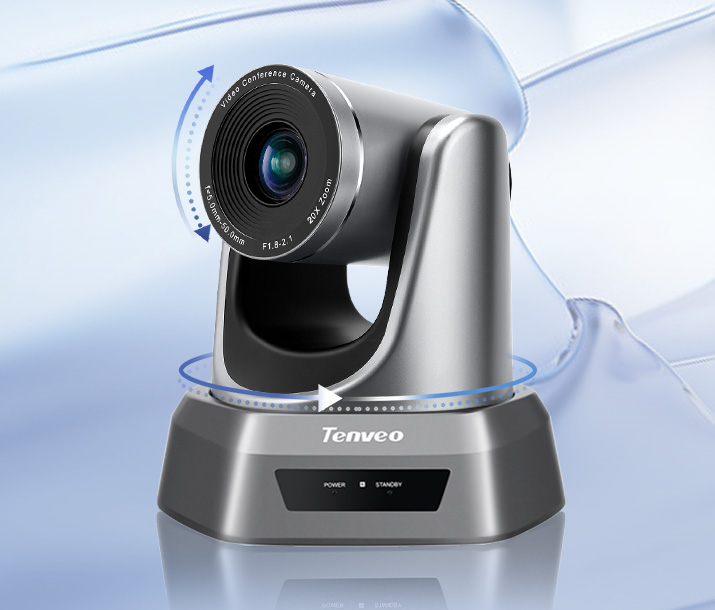

| Horizontal Rotation | 350°（±175°）0.1°/s～100°/s |
| Vertical Rotation | 90°（±45°）0.1°/s～80°s |
| Power supply | DC 12V/2A |
| Power comsumption | 12W |
