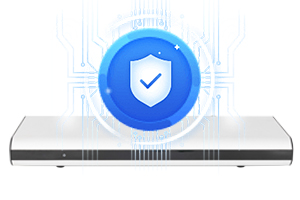

H.235 and SRTP protocols and the encryption algorithms such as AES-128 are supported for all-round guarantee for communication security. .
Standard SIP and H.323 protocols supported; compatible with the industry's mainstream standard terminals and networked devices.
Embedded DSP solutions to improve call quality-Noise reduction, echo cancellation, image enhancement, etc.
1080P full HD supported; multiple (HDMI + DVI-I: HDMI and VGA) HD video inputs and 2 HDMI HD video outputs are supported.

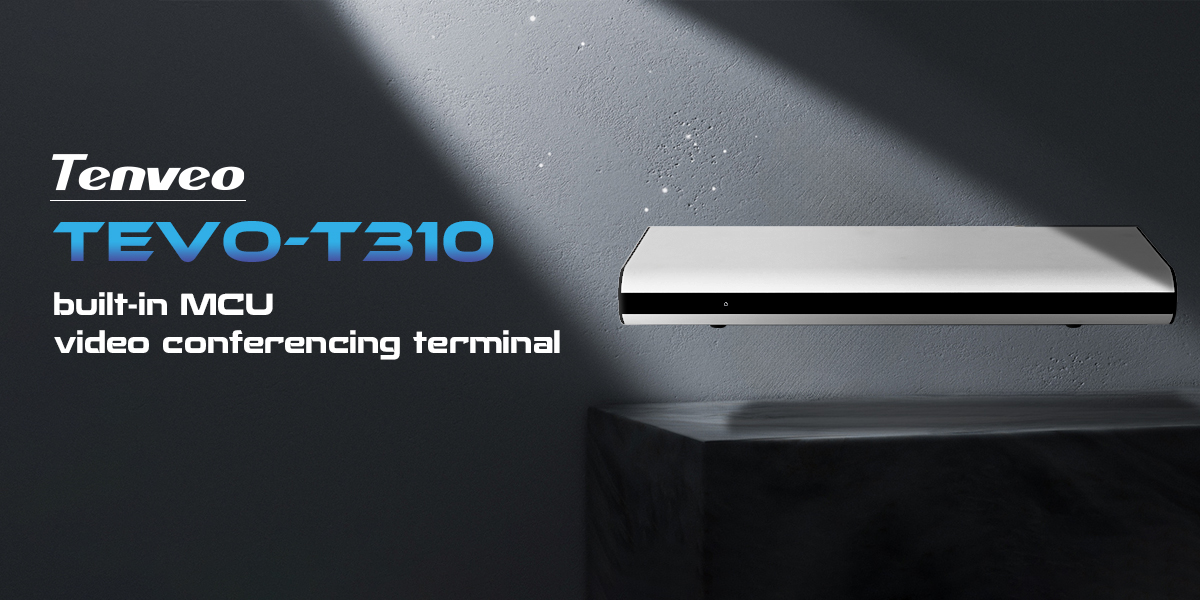

| Model | TEVO--T310 |
| Standards and Protocols | ITU-T H.323, IETF SIP |
| Video Standards and Protocols | H.261, H.263, H.263+, H.263++, H.264, H.264 High Profile,H.264 SVC (Optional) |
| Audio Standards and Protocols | G.711, G.722, G.722.1*, G.722.1C*, AAC-LD, G.726, SILK,Opus |
| Dual Stream | ITU-T H.239, BFCP |
| Other Standards | H.221, H.224, H.225, H.235, H.241, H.245, H.281, H.350, H.460, T.140, DTMF |
| Network Standards and Protocols | TCP/IP, DHCP, SSH, HTTP, HTTPS with SSL/TLS, RTP, RTCP, RFC3261, RFC3264, RFC2190, RFC3407, RFC2833, RFC4585(RTP/AVPF), SNTP, ARP |
| Active Video Resolution | • 1080p, Guaranty bandwidth: 1024Kbps • 720p, Guaranty bandwidth: 512Kbps • w448p/4SIF/4CIF, Guaranty bandwidth: 256Kbps • w288p/SIF/CIF, Guaranty bandwidth: 128Kbps |
| Content Video Resolution | • Input: VGA (640x480), SVGA (800x600), XGA(1024x768), WXGA(1280x768), WXGA (1280x800), 1280x960, SXGA(1280x1024), 1360x768, 1366x768, 1440x900, 1600x900, 720p(1280x720), 1080p(1920x1080) • Coding/Decoding Resolution: 800x600, 1024x768, 1280x1024, 1280x720, 1920x1080 • Output: 800x600, 1024x768, 1280x1024, 1280x720, 1920x1080 |
| Dual Stream | Dual 1080p or dual 720p |
| Other Video Features | PiP (Picture in Picture), PoP (Picture outside Picture) |
| Video Format | 1080p@60/50/30/25fps, 720p@60/50/30/25fps,640*480P@30fps,320*240P@30fps |
| Audio features | • AEC (Acoustic Echo Cancellation) • AGC (Automatic Gain Control) • ANS (Acoustic Noise Suppression) • Lip synchronization |
| Network | FEC (Forward Error Correction), ARQ (Automatic Repeat-reQuest) etc. |
| Security | • H.235 (AES) signaling and media stream encryption • Administrator password, SSH/HTTPS |
| Firewall Traversal | H.460, ICE |
| IP | 64kbps ~ 8Mbps |

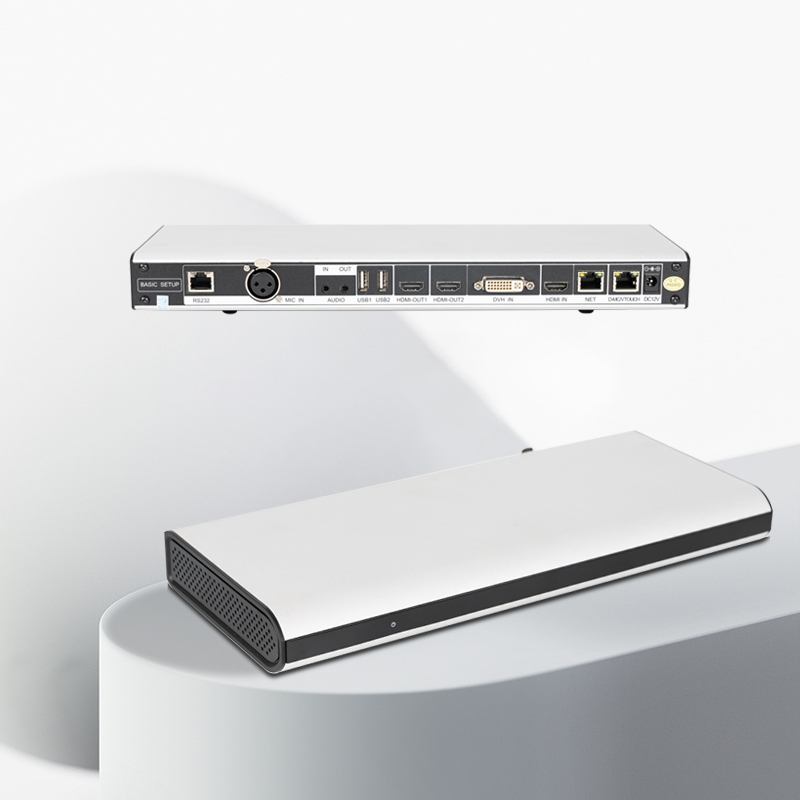

| Audio Input | 1 x 3.5mm line-in jack, 1 x XLR mic-in jack, 1 x RJ45 digtial mic-in jack |
| Audio Output | 1 x 3.5mm line-out jack, 1 x HDMI audio output |
| Video Input | 1 x HDMI 1 x DVI-I (HDMI, VGA/YPbPr) |
| Video Output | 2 x HDMI |
| USB Interface | 2 x USB2.0 Host (support USB flash disk, USB micphone etc.) |
| Network Interface | 1 x RJ45: 10/100 Base-T 1 x Wireless: 802.11a/b/g/n Wi-Fi (optional) |
