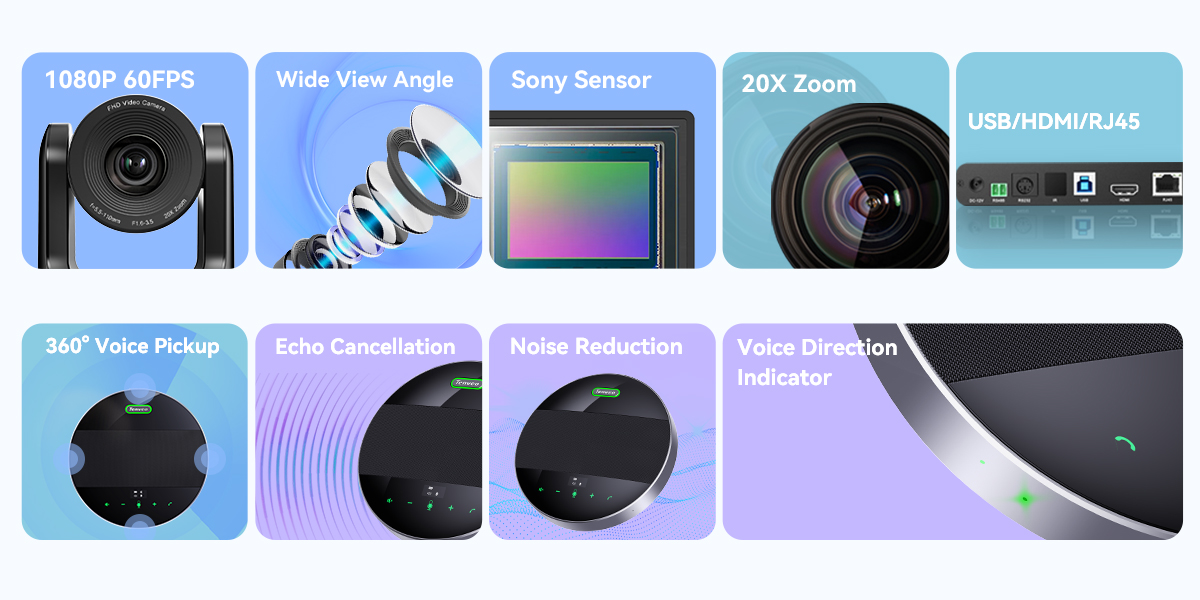

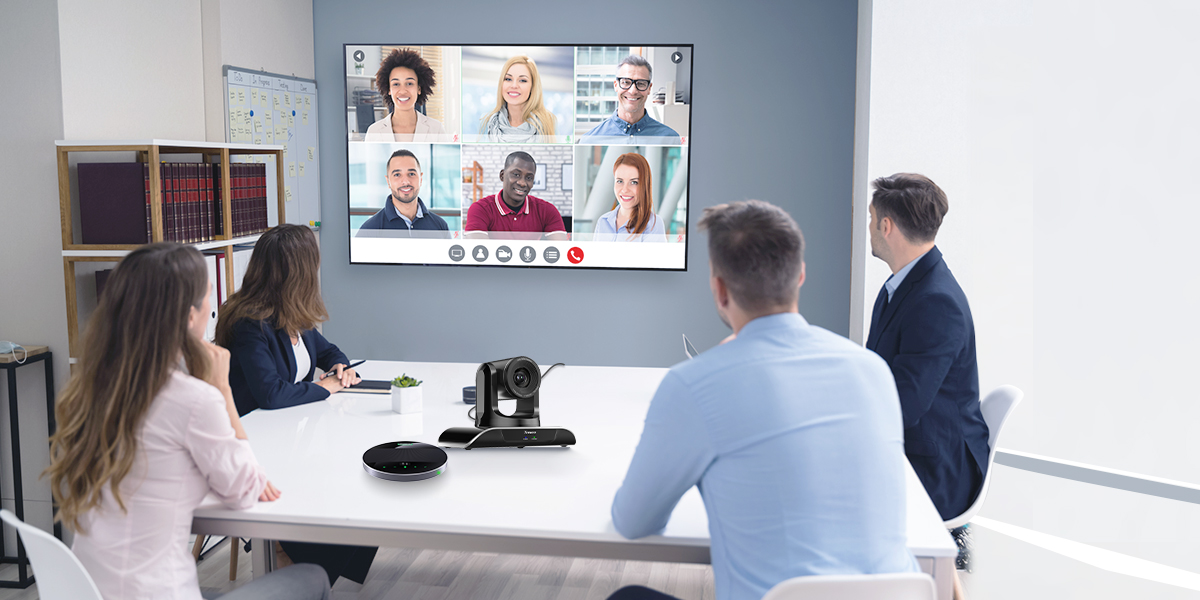

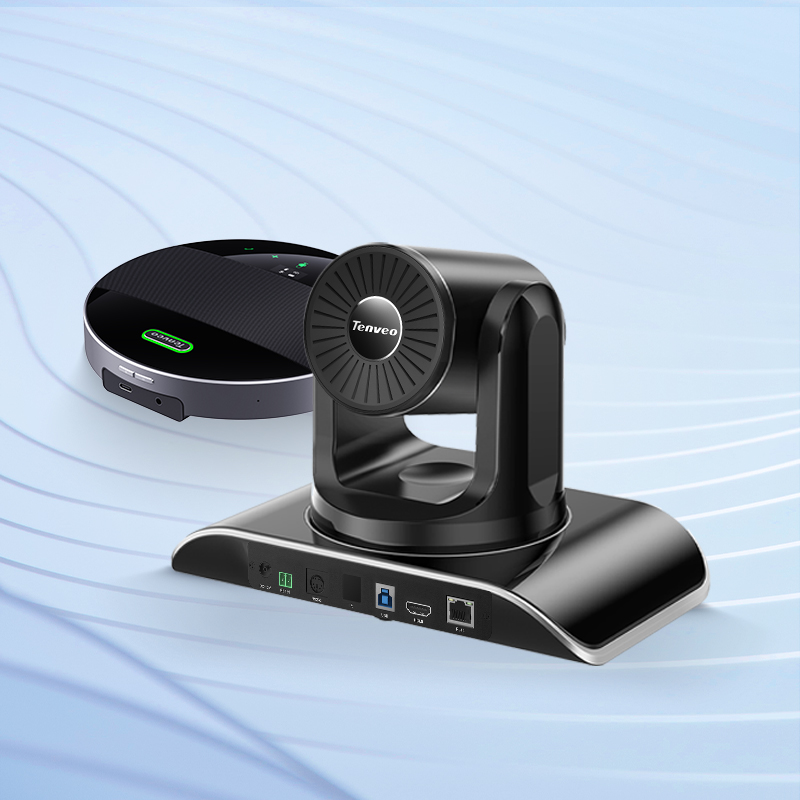

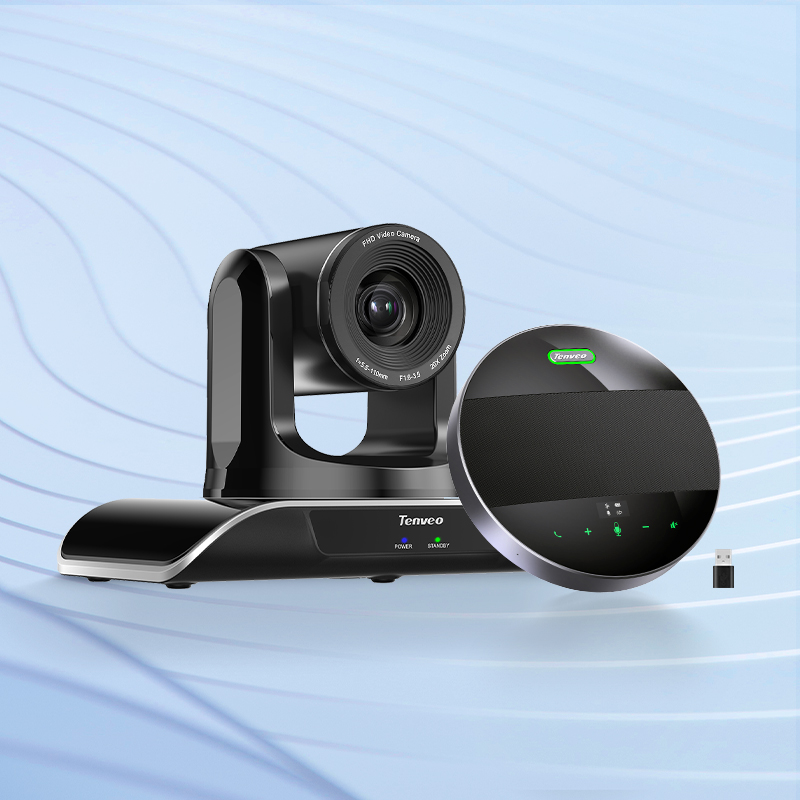

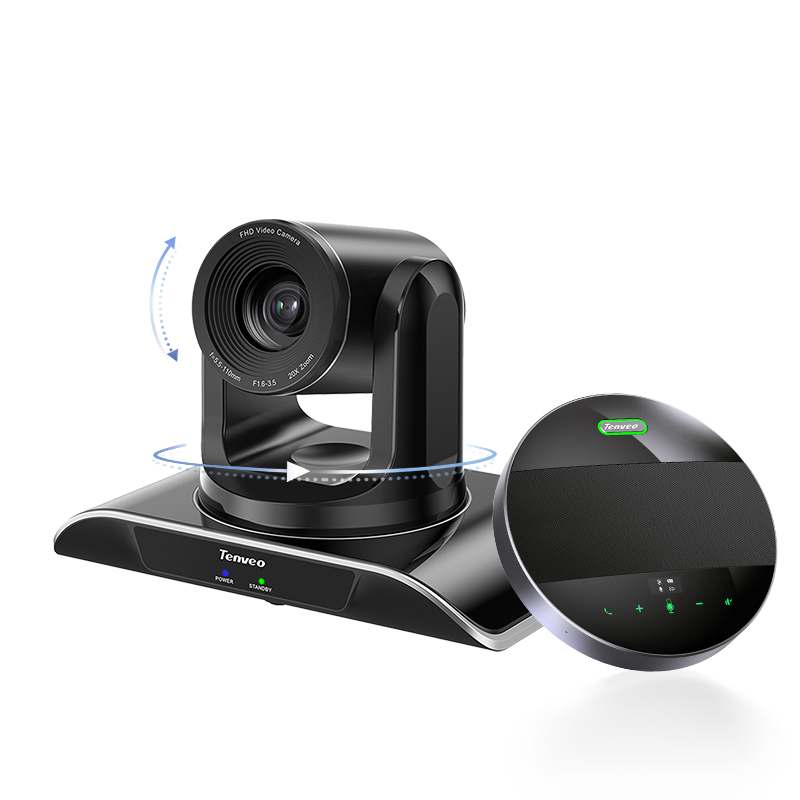

Tenveo All-in-One video and audio conferencing system for middle to big rooms. The affordable bundle comes with HD 20X Zoom camera, 360° voice pickup speakerphone with 6 meters voice pick-up radius.
With USB, HDMI, and RJ45 interfaces, the 20X zoom PTZ camera of this video conference system could deliver a clear image and livestreaming.
Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.

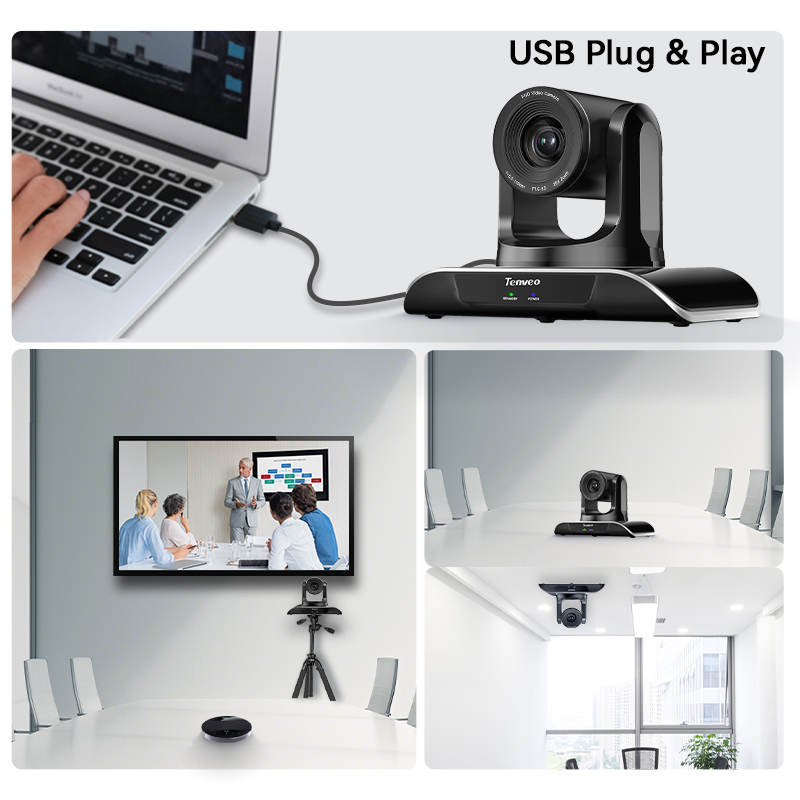

Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.
| Model Number | TEVO-VHD20H+M5B |
| Image Sensor of the ptz camera | 1/2.8" SONY CMOS |
Effective pixel | 2.38MP |
| Lens | f=5.5-110mm |
| Aperture | F1.6～3.5 |
| Video Format | 1080p@60/50/30/25fps,720p@60/50/30/25fps |
| Horizontal Angle | 58.6°(W)-3.6°(T) |
| Focus | Auto/Manual |
| Digital Noise Reduction | 2D and 3D Noise Reduction |
| Exposure | Auto/Manual |

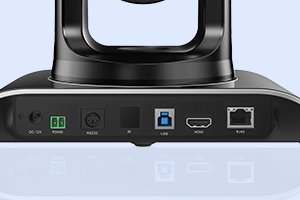

| Video Interfaces | USB, HDMI, RJ45 |
| Video Compression Format | H.264, H.265, MJPG, YUY2 |
| Control Protocol | VISCA/Pelco-D/Pelco-P/Onvif |
| Baud Rate | 38400/9600bps |
| Pan/Tilt Rotation | >±175°,-90°～+90° |
| Pan Control Speed | 0.1 -80°/sec |
| Tilt Control Speed | 0.1-60°/sec |
| Preset Number | 255 presets by Pelco-D,32 presets by Pelco-P, 7 presets by Visca (10 presets by remote controller) |
| Acoustic echo cancellation(AEC) of the speakerphone | ＞65dB |
| Response of the speakerphone | 135Hz-20Hz |
| Pickup Range of the speakerphone | 6 meters |
| Battery of the speakerphone | 8000mAH(Built-in lithium battery); Music time (up to 17 hours ); Battery life(call) up to 27 hours; Fastest charge time: 3 hours; Regularly charge time up: 6 hours (Support PD2.0/3.0 charging, with maximum power up to 18W) |
| Connection Type | USB/Bluetooth/Wireless/3.5mm Jack (Daisy-chain version has 2x3.5mm Jack) |
| Operation Systems | Windows 7 or higher; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.) Compatible with Zoom, MS Teams, Skype and etc. |

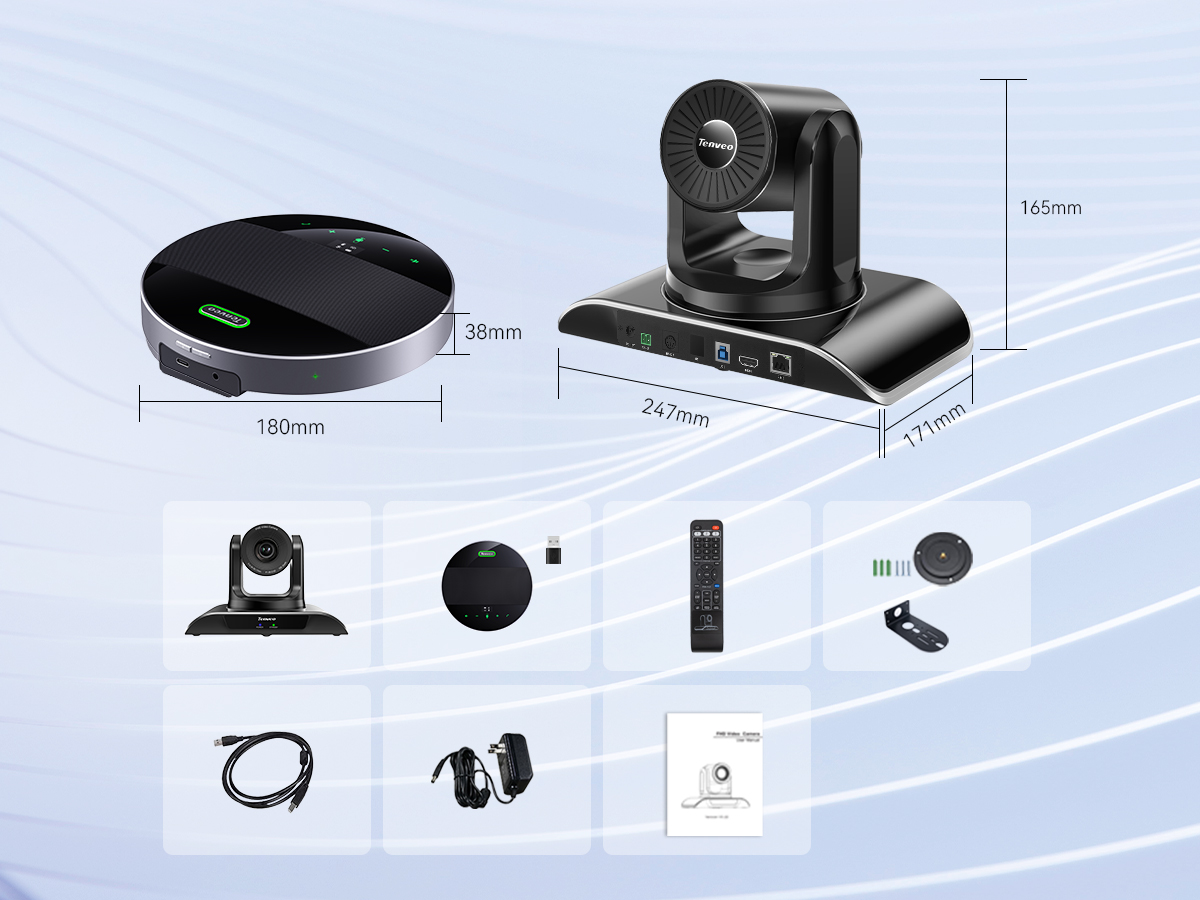

| Dimension（W*H*D） | Camera: 247*165*171mm/285*217*197mm(before / after packing); Speakerphone: 180mm*180mm*34.7mm/220*108*83mm(before/after packing) |
