TEVO-KB200 IP Camera joystick controller for broadcasting
TEVO-KB200 RS232 RS485 connection IP PTZ joystick controller
TEVO-KB200 RS232 RS485 connection IP PTZ joystick controllerTEVO-KB200 RS232 RS485 connection IP PTZ joystick controllerTEVO-KB200 RS232 RS485 connection IP PTZ joystick controllerTEVO-KB200 RS232 RS485 connection IP PTZ joystick controller
TEVO-KB200 IP Camera joystick controller for broadcasting
1. Work with any PTZ cameras that use VISCA, PELCO-D or PELCO-P protocols
2. Using joystick to control the Pan Tilt and Zoom (PTZ) function
3. The joystick controller supports multiple control protocols: VISCA, Pelco via serial RS232 and RS422/RS485, ONVIF, NDI and Visca over iP . Visca is fully compatible.
4. Single Cable Simplicity-PoE support
5. PTZ Controller with LCD Display, Made for professional video conferencing. Use Tenveo 10X/20X/30x zoom Cameras and PTZ Controller together for a Huge space

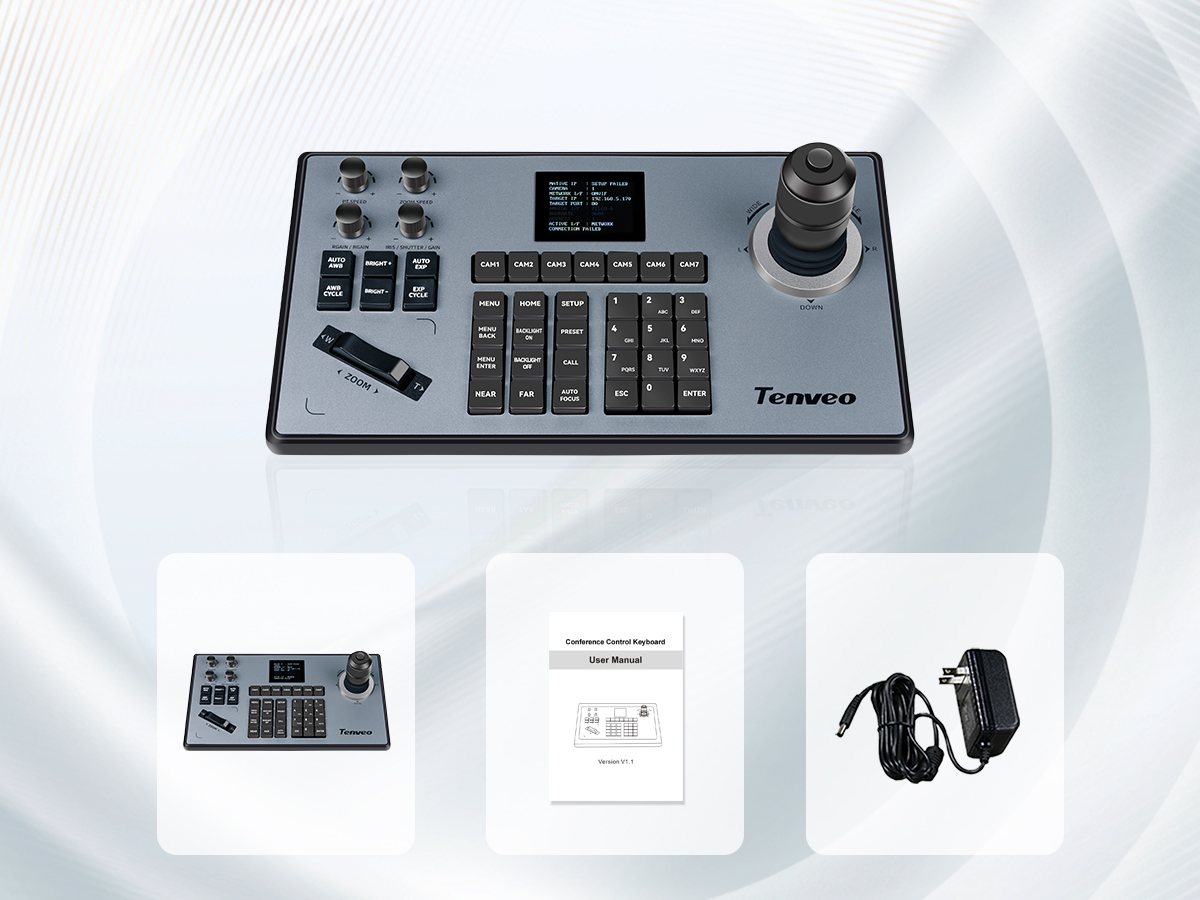

Product introductionTech SpecPackagingSend inquiry





Live streaming Joystick stick controller

KB200 PTZ camera controller is made for broadcast, professional video conferencing and live streaming. lt can control up to 255 PTZ cameras via LAN port or serial interfaces.

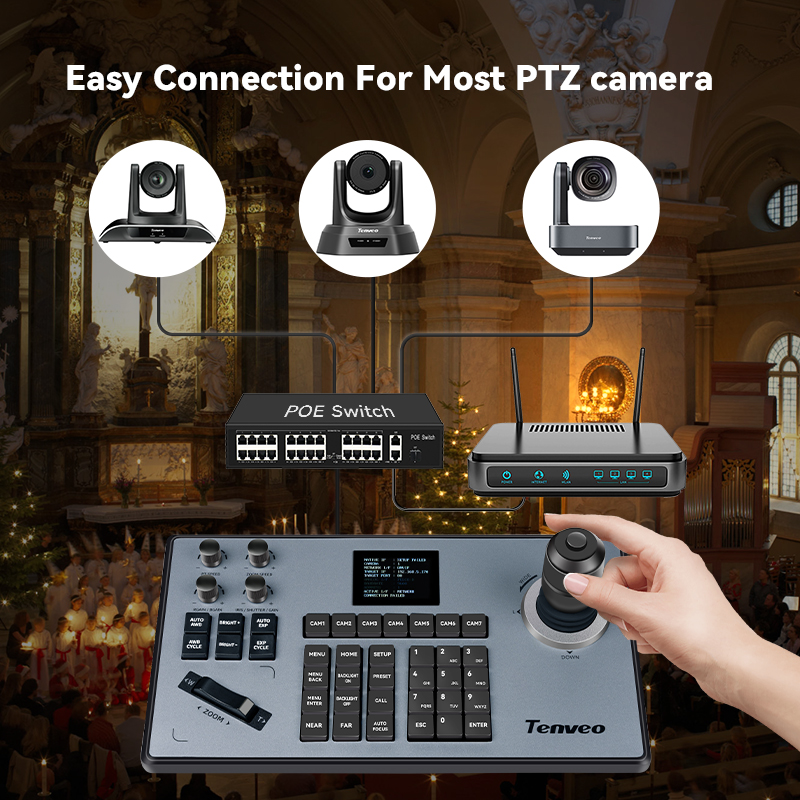

Single Cable Simplicity-PoE support

KB200 supports Power Over Ethernet (PoE). Take control of cameras all across your network with a single Ethernet cable. Use PoE network switch to simplify your Joystick setup.


Multiple Control and network Protocols

The joystick controller supports multiple control protocols: VISCA, Pelco via serial RS232 and RS422/RS485, ONVIF, NDI and Visca over iP. Visca is fully compatible.


Multiple Use Scenes with PTZ Cameras

The cameras and joystick controller can be used in various scenes, such as government and telecommunications departments, public security, procuratorates, courts, banks, securities, insurance, education, taxation, etc.



ModelTEVO-KB200
ChipHis3536DV100
SystemLinux
ProtocolFulI VISCA, ONVIF,NDI,PELCO-P,PELCO-D

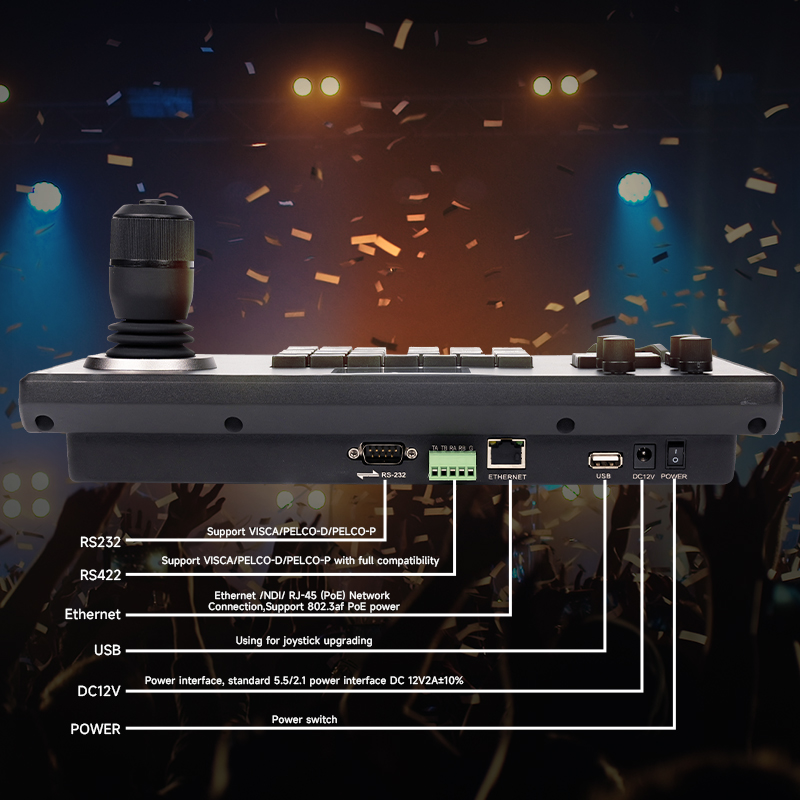

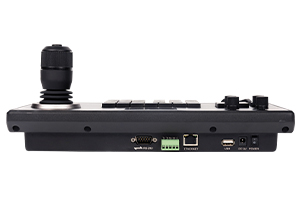

OutputRS422/RS485,RS232,RJ45

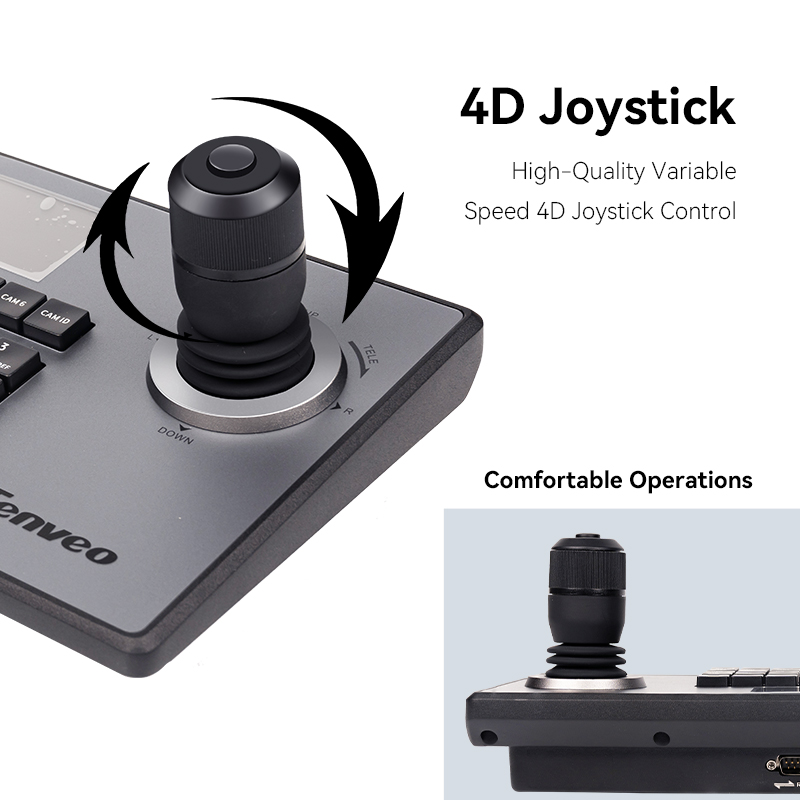

AccessoriesSeesaw switch, knob, mechanical button, 4D joystick
ScreenTFT LCD 320*240
Power Consumption≤5W
PowerDC12V-2A
Working Temperature-10℃-55℃
Working Humidity20%-80% Frostless
Storage Temperature-10°C-55C
Storage Humidity0%-90% Frostless
Packing Size 354*221*135mm
Net Weight1630g/set
