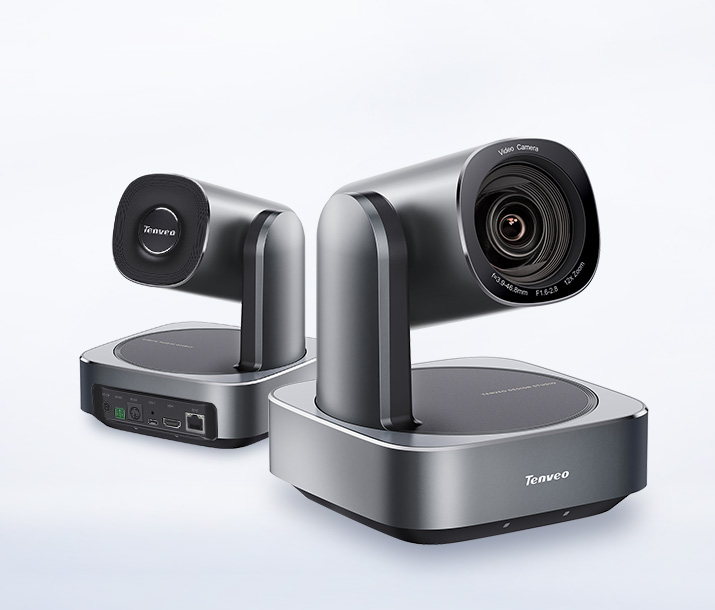

12X optical Zoom, 4K Resolution, Sony CMOS Sensor allow you to enjoy a crystal image. Premium PTZ Camera With 4K Ultra-HD Imaging System.

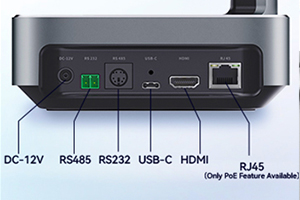

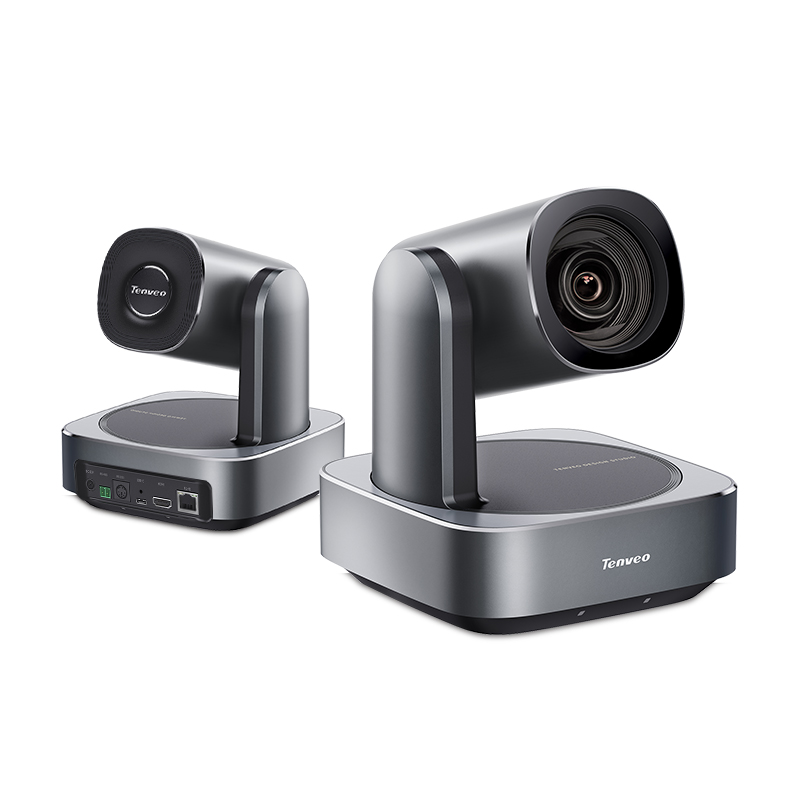

The VLoop camera is compatible with multiple devices through USB 3.0, HDMI,RJ45, RS485, RS232 interfaces. It also supports PoE.

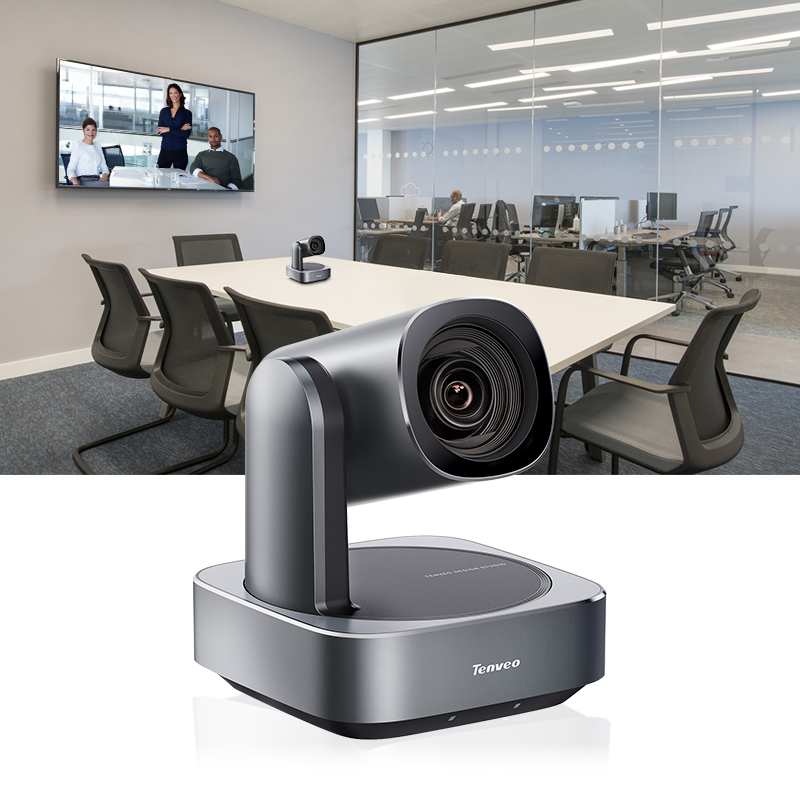

Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.
Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.

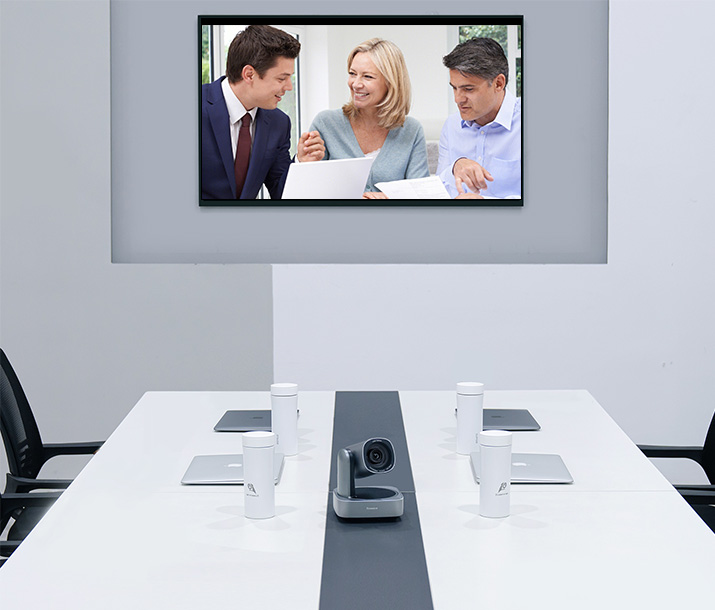

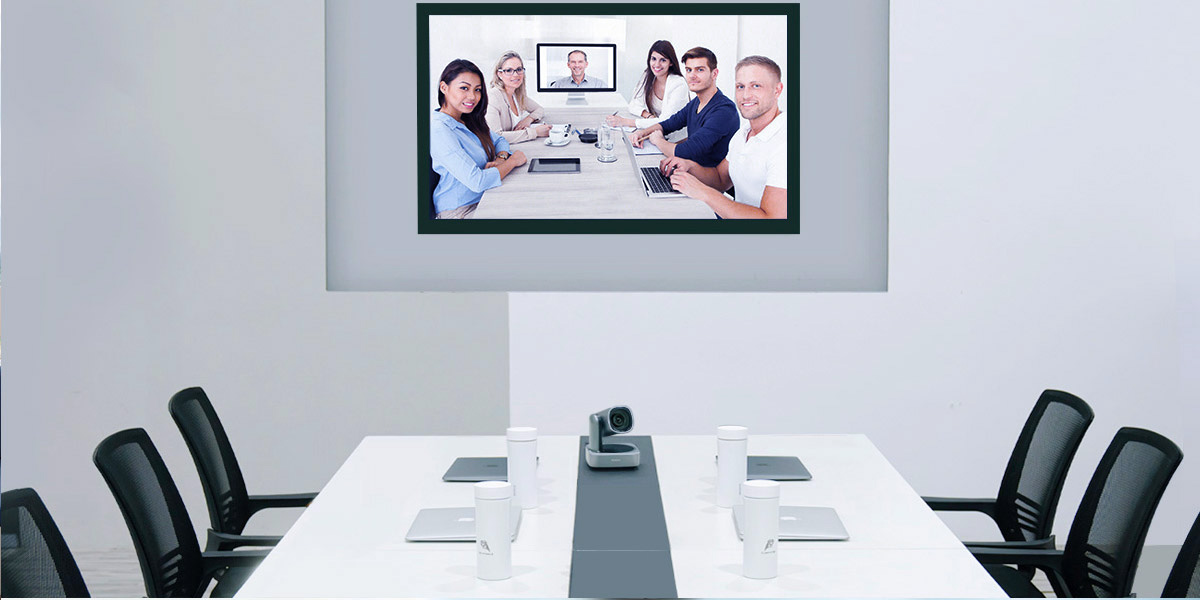

This camera is equipped with the AI automatic tracking function. During the meeting, it can select to track specific participants according to the needs.
Advanced AF focusing algorithm is adopted, focusing speed is faster, and professional IQ image debugging enables the zoomed image to be displayed quickly and clearly.
| Model | TEVO-VL12U AI (AI function is optional and available for purchase separately. Previously sold units cannot be upgraded to the AI tracking version) |
| Image Sensor | Sony IMX 415 1/2.8" CMOS |
| Effective Pixels | 8.29MP, 16:9 |
| Lens | f=3.9-46.8mm |
| Zoom | 12x optical zoom |
| Video Interfaces | HDMI, TYPE-C, Ethernet |

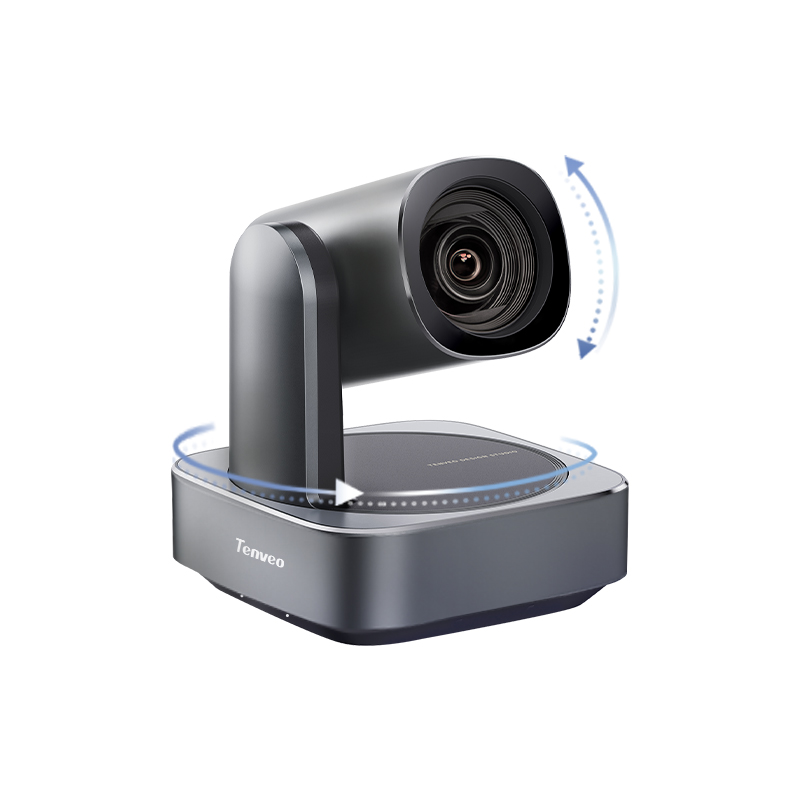

| Pan/Tile Rotation | ±175°, -90°~+90° |
| Horizontal Angle | 70.82°(W)-6.48°(T) |
| Vertical Angle | 47.72°(W)-73.66°(T) |
| Diagonal Angle | 78.58°(W)-7.42°(T) |
| Backlight Compensation | Support |
| Video Format | HDMI(4KP@30/25fps,1080P@60/50/30/25fps,720P@60/50/30/25fps) |
| USB3.0(3840*2160P@30fps,2560*1440P@30fps,1920*1080P@30fps,1280*720P@30fps,640*480P@30fps,320*240P@30fps | |
| SNR | >50dB |
| Focus | Auto / Manual |
| Digital Noise Reduction | 2D & 3D Noise Reduction |
| Exposure | Auto / Manual |
| Video Compression Format | H.264,H.265,MJPG,YUY2,NV12 |
| LAN | 10M/100M adaptive Ethernet port, Support POE IEEE802.3af |
| Network Protocol | RTSP, RTMP, ONVIF, GB28181; Support VISCA Over IP |
| Control Protocol | VISCA/Pelco-D/Pelco-P;Baud Rate:9600/4800/38400/2400 |
| Control Interface | RS232 (input & output),RS485,TYPE-C(UVC1.1)，RJ45 |
| Dimension（W*H*D） | 171.6*192.6*171.6mm/260*217*197mm (before / after packing) |
| N.W. / G.W | 1.43kg/2.096kg |

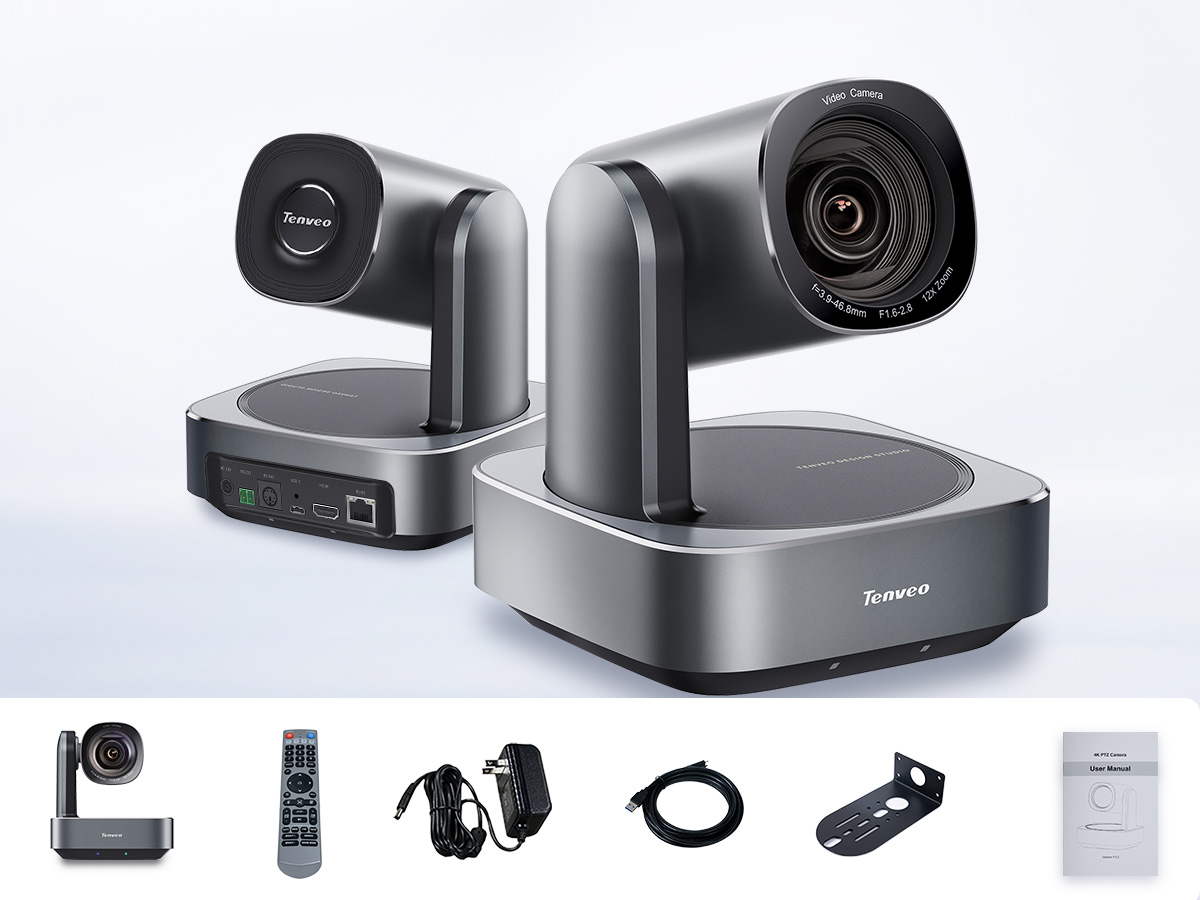

| Accessory | 1xCamera; 1xUSB Cable;1xPower Adapter; 1xWall Mount; 1xManual |
| Warranty | 3 Years Parts & Labor |
