Medium room home/office Use Driver-Free Auto Focus USB Camera 1080P with 10X Zoom

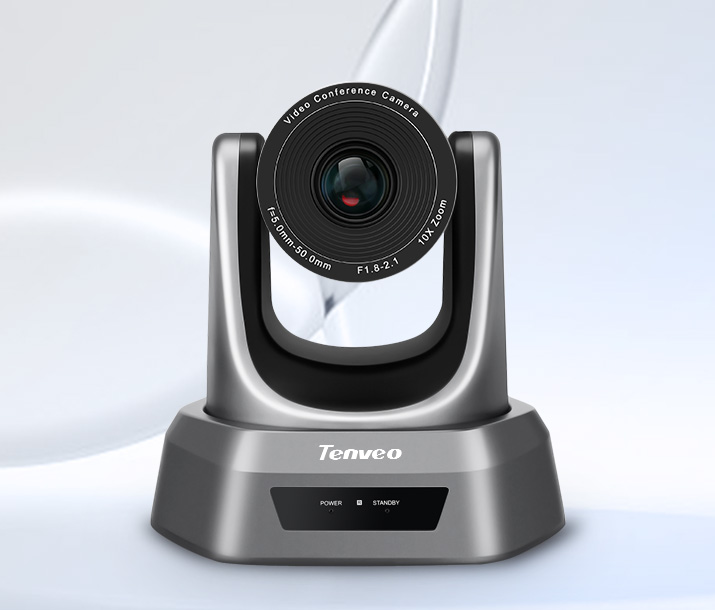

TEVO-NV10A 10X HDMI Medium Room Video Conference PTZ Camera
TEVO-NV10A 10X HDMI Medium Room Video Conference PTZ CameraTEVO-NV10A 10X HDMI Medium Room Video Conference PTZ CameraTEVO-NV10A 10X HDMI Medium Room Video Conference PTZ CameraTEVO-NV10A 10X HDMI Medium Room Video Conference PTZ Camera
Medium room home/office Use Driver-Free Auto Focus USB Camera 1080P with 10X Zoom
1. 10x optical zoom
2. Crystal clear HD1080P image quality
3. 3G-SDI, HDMI USB Video Outputs
4. Preset: 9 via IR remote setting (255 via PELCO-P/D/64 via VISCA)

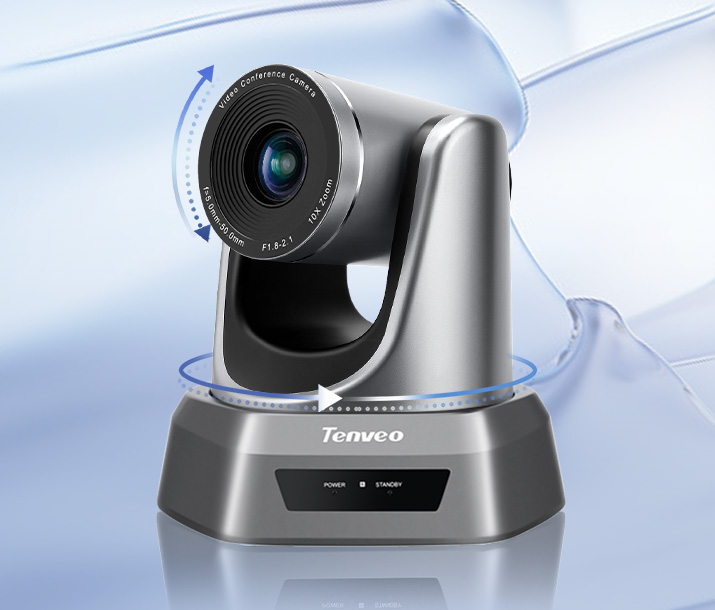

5. Wide field of view with no video distortion(Pan:350°,Tilt: -35°~+55°)
6. 1/2.9 inch high quality, 2.38MP (16:9) CMOS sensor
7. Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control

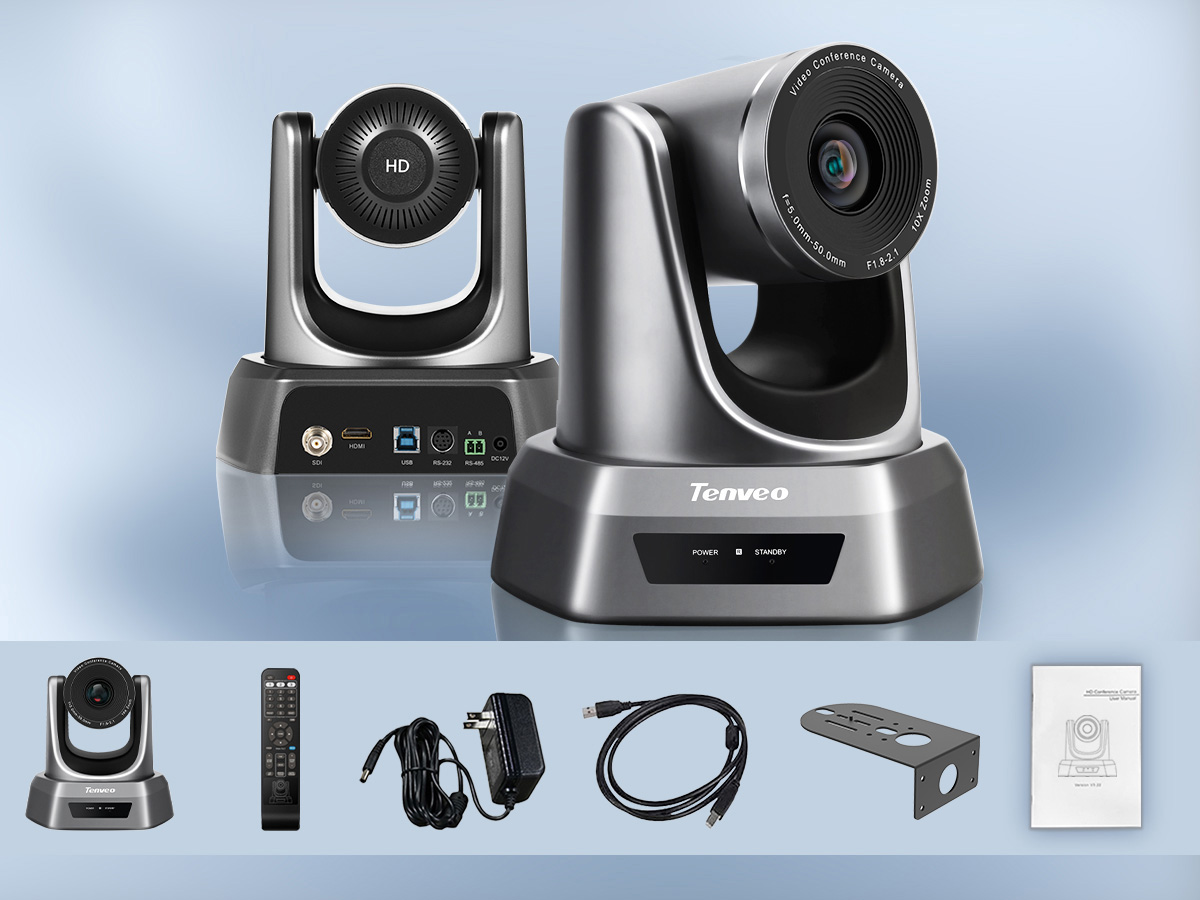

Product introductionTech SpecPackagingSend inquiry

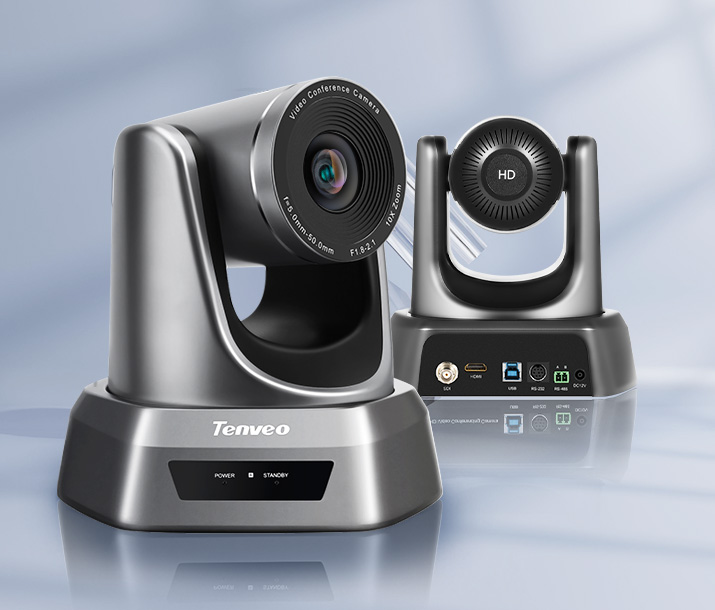

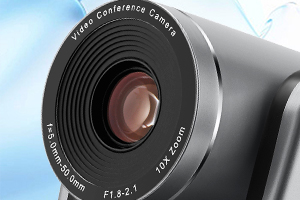

10X Optical Zoom HD Camera

10X optical Zoom, 2.1 mega pixel 10X optical zoom,HD 1080P 30fps video output, allow you to enjoy a nice image.


Easy Preset Setting

The 10x PTZ camera could be controlled to the focused points quickly by the presets in the meetings. It's very efficient for discussion collobaration.


Universal Compatibility

Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.


Easy to Use

Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.


Sensor1/2.9 inch CMOS
Effective pixel2.38 mega pixel
Video output pixel1080P60/50/30/25,1080i60/50,720P30/25
Zoom10x optical zoom
Lensf=4.34mm~35.17mm
ApertureF1.85~Close
Horizontal angle68.8°(W)-8.8°(T)
Video outputUSB, HDMI, SDI
Video resolution1080P (1920 *1080)
Siginal standardNTSC/PAL
Preset position64
Control temernalRS-232,RS485
Shutter 1/30s~1/10000s, auto
Baud Rate38400/9600bps
Control protocolVISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB protocolUVC1.1
Minimal Illumination0.1Lux
SNR≥50dB
Video encoding formatH.264, MJPEG, YUV
Horizontal Rotation350°(±175°)0.1°/s~100°/s
Vertical Rotation90°(±45°)0.1°/s~80°s
Power supplyDC 12V/2A
Power comsumption12W
