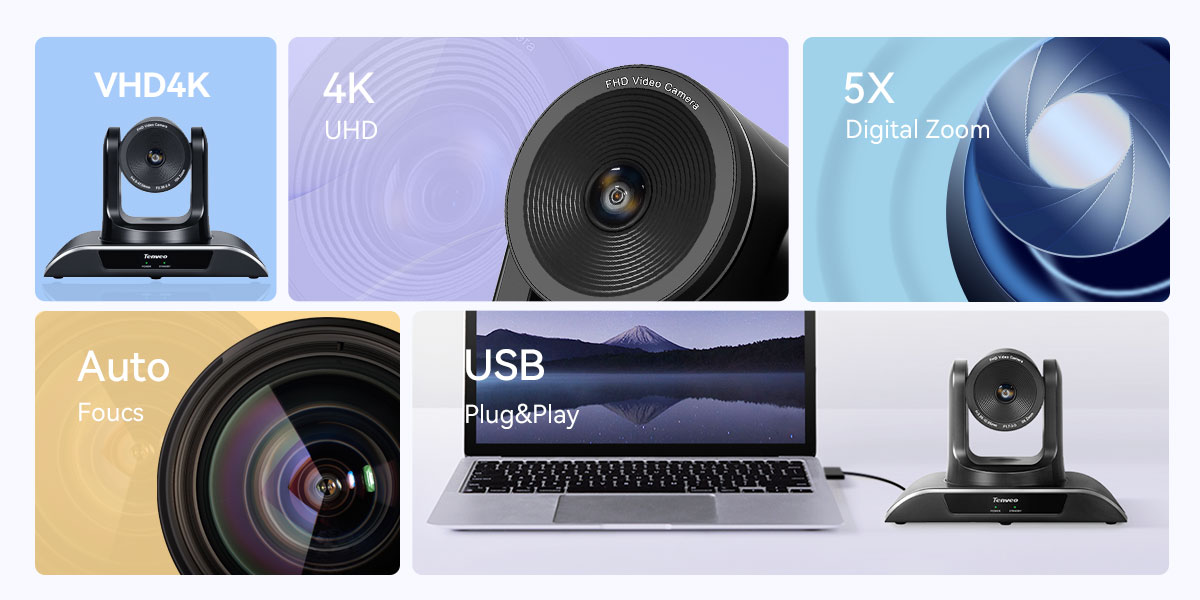

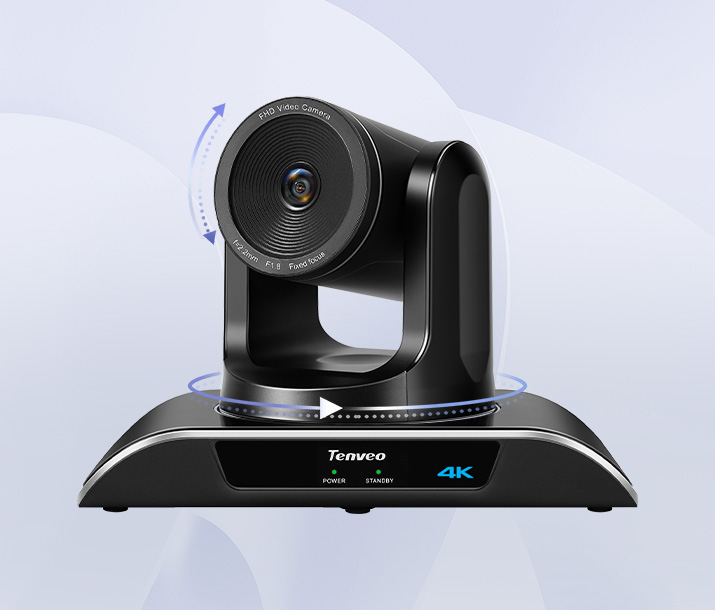

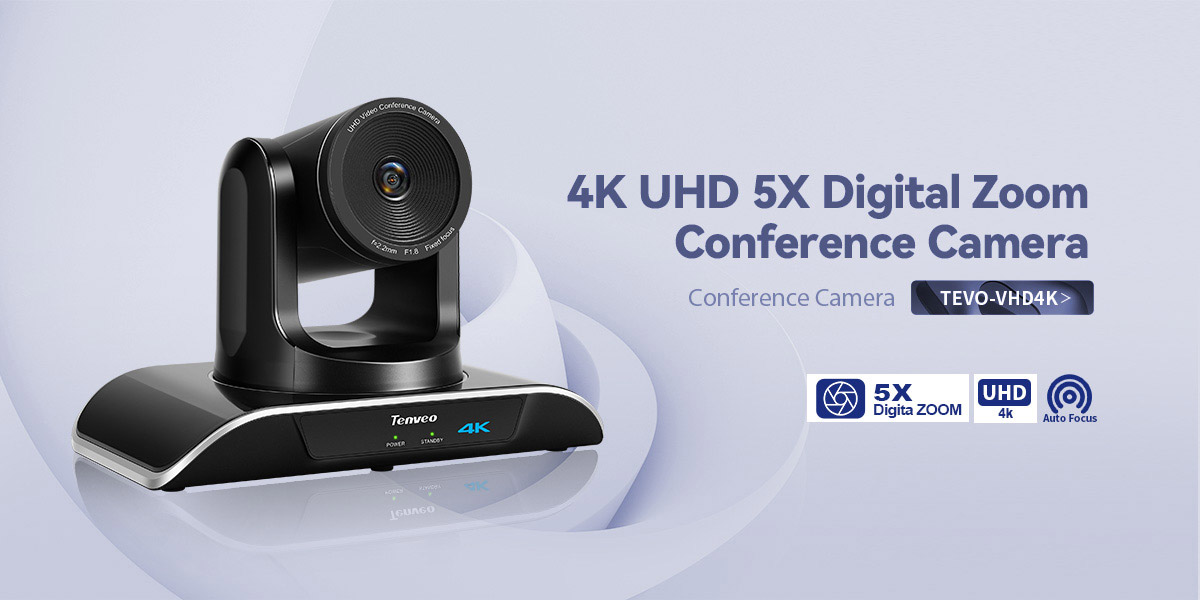

Pan: 0 to 340 degree. Tilt: 0 to 120 degree. 5X digital zoom 4K UHD 30fps video output, allow you to enjoy a nice image.

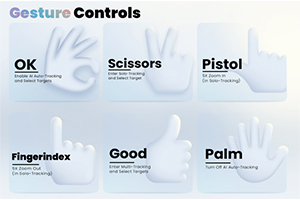

gestures can be used to control the camera according to your needs.
Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.
Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.
| Model | TEVO-VHD4K |
| Sensor | 1/2.8''SONY CMOS |
| Effective pixel | 8.29mega pixel |
| Video output pixel | 4K-30/25,2K-30/25,1080p-30/25 |
| Zoom | 5x optical zoom |
| Lens | f=2.2mm |
| Aperture | F1.8 |
| Horizontal angle | 107° |
| Video output | USB 2.0 |
| Video resolution | 1080P (1920 *1080) |
| Siginal standard | NTSC/PAL |
| Preset position | 64 |
| Control temernal | RS-232,RS485 |
| Shutter | 1/30s～1/10000s, auto |
| Baud Rate | 38400/9600bps |
| Control protocol | VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
| USB protocol | UVC1.1 |
| Minimal Illumination | 0.1Lux |
| SNR | ≥50dB |
| Video encoding format | H.264, MJPEG, YUV |
| Horizontal Rotation | 350°（±175°）0.1°/s～100°/s |
| Vertical Rotation | 90°（±45°）0.1°/s～80°s |
| Power supply | DC 12V/2A |
| Power comsumption | 12W |
