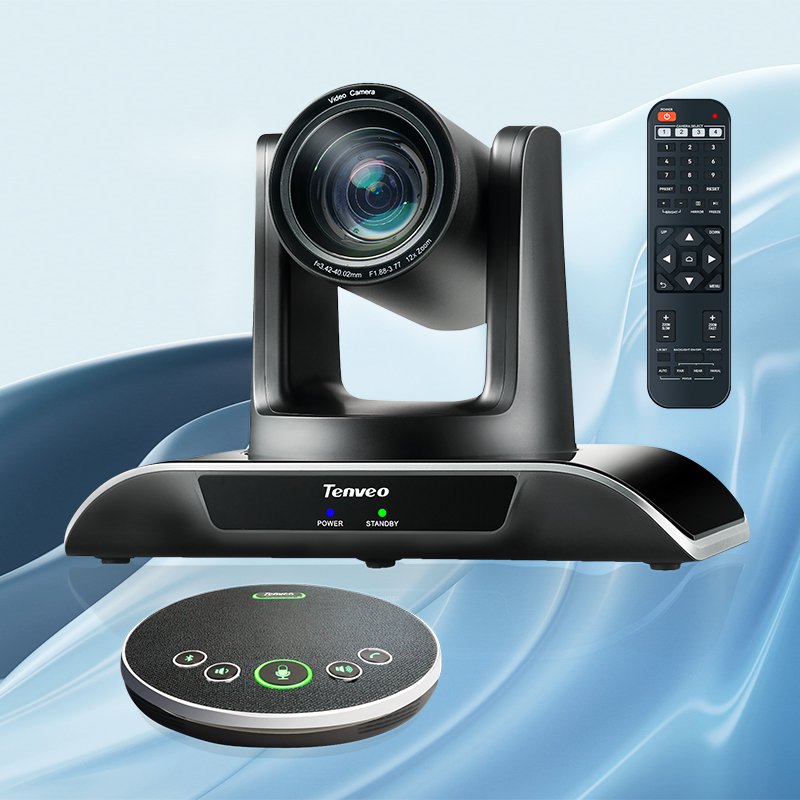

TEVO-VHD12U and TEVO-M3B HDMI USB camera 12x Zoom PTZ Video Confernce Room Camera and omnidirectional bluetooth speakerphone
TEVO-VHD12U and TEVO-M3B USB HDMI 12X optical Zoom Conference Camera
TEVO-VHD12U and TEVO-M3B USB HDMI 12X optical Zoom Conference CameraTEVO-VHD12U and TEVO-M3B USB HDMI 12X optical Zoom Conference CameraTEVO-VHD12U and TEVO-M3B USB HDMI 12X optical Zoom Conference CameraTEVO-VHD12U and TEVO-M3B USB HDMI 12X optical Zoom Conference Camera
TEVO-VHD12U and TEVO-M3B HDMI USB camera 12x Zoom PTZ Video Confernce Room Camera and omnidirectional bluetooth speakerphone
1. Complete audio/video conferencing group for medium to large rooms: HD video camera and speakerphone.
2. Compact and Sleek Design to Fit in Most Scenarios.
3. High end speakerphone, 5 meters voice pickup range. Plug & play HD audio allows everyone around the conference table to hear and be heard clearly
4. Easy and good video conferencing: Launch video meetings with a plug & play USB connection to a laptop and choose a video conferencing software
5. High def video: HD 1080p video with autofocus, 12x zoom lens.
6. Compatible with Mac and PC. System Requirements: Windows 7, 8.1 or 10,Mac OS X 10.7 or higher.

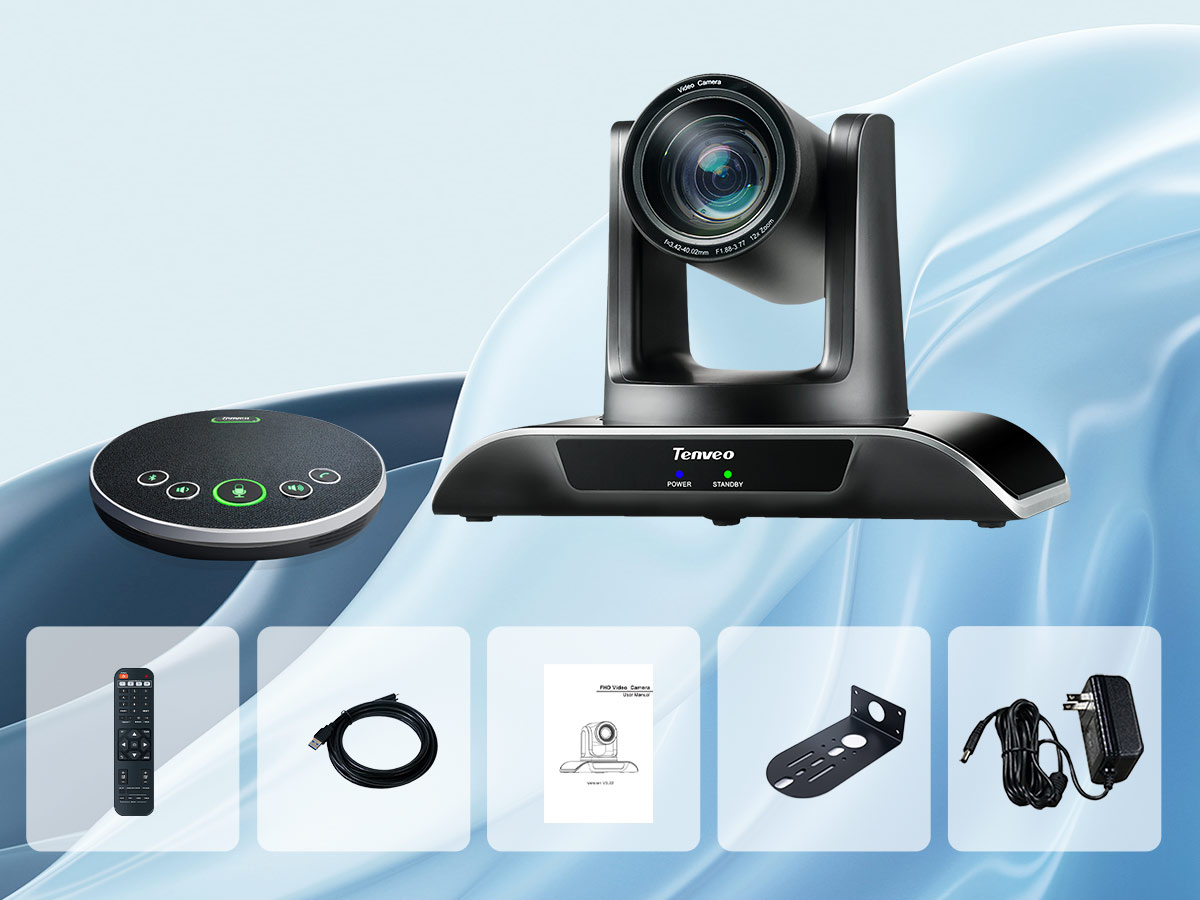

Product introductionTech SpecPackagingSend inquiry

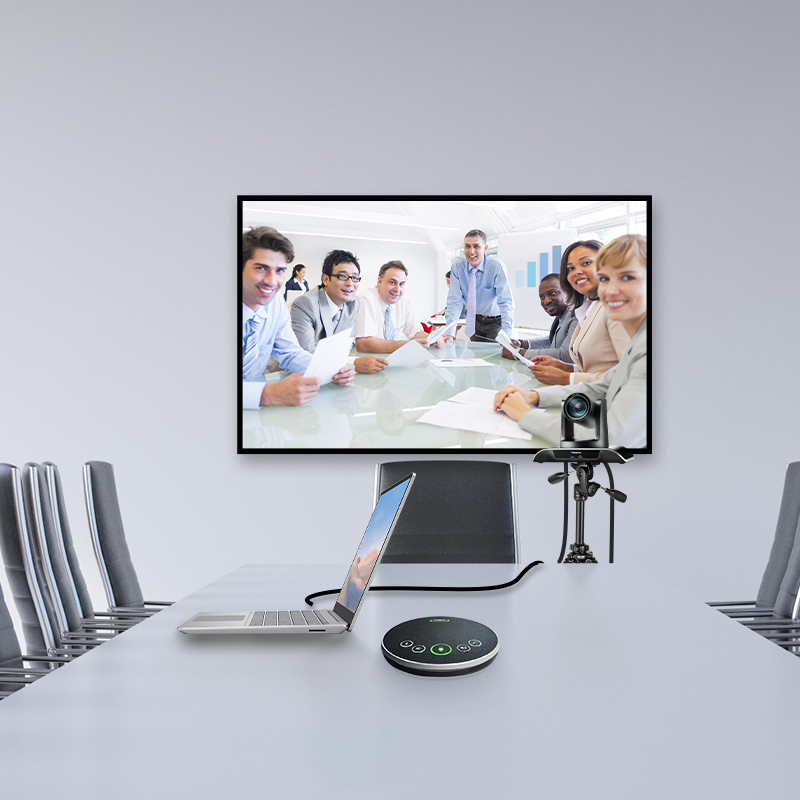

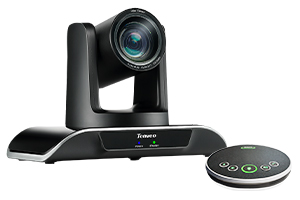

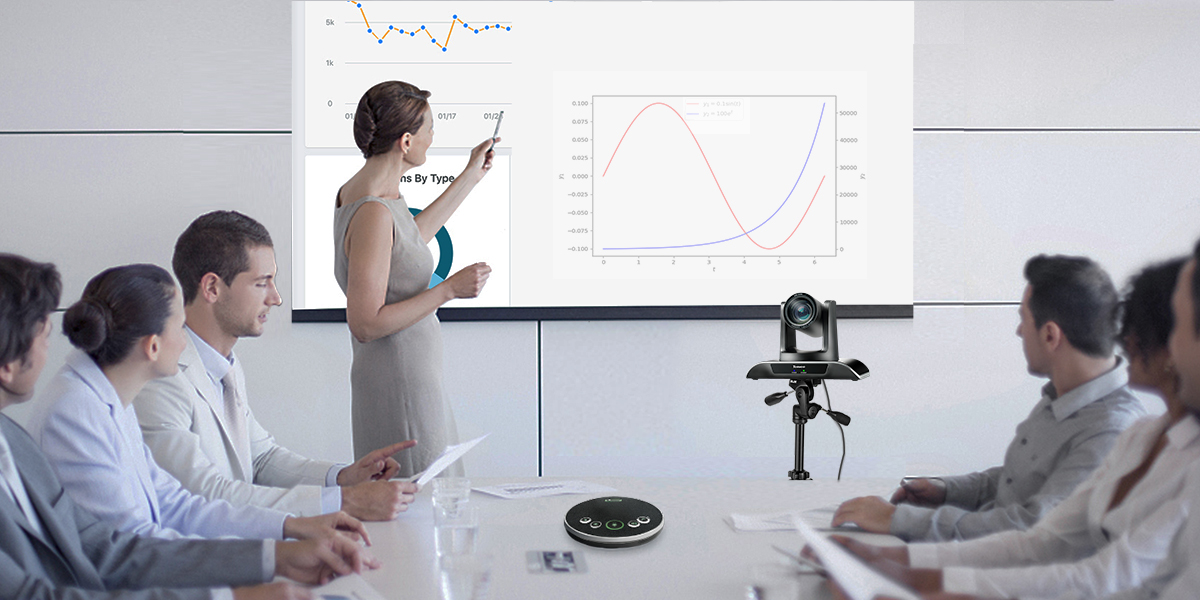

All-in-One Conference System

Tenveo All-in-One video and audio conferencing system for middle to big rooms. The affordable bundle comes with HD 3X Zoom camera, 360° voice pickup speakerphone with 5 meters voice pick-up radius.

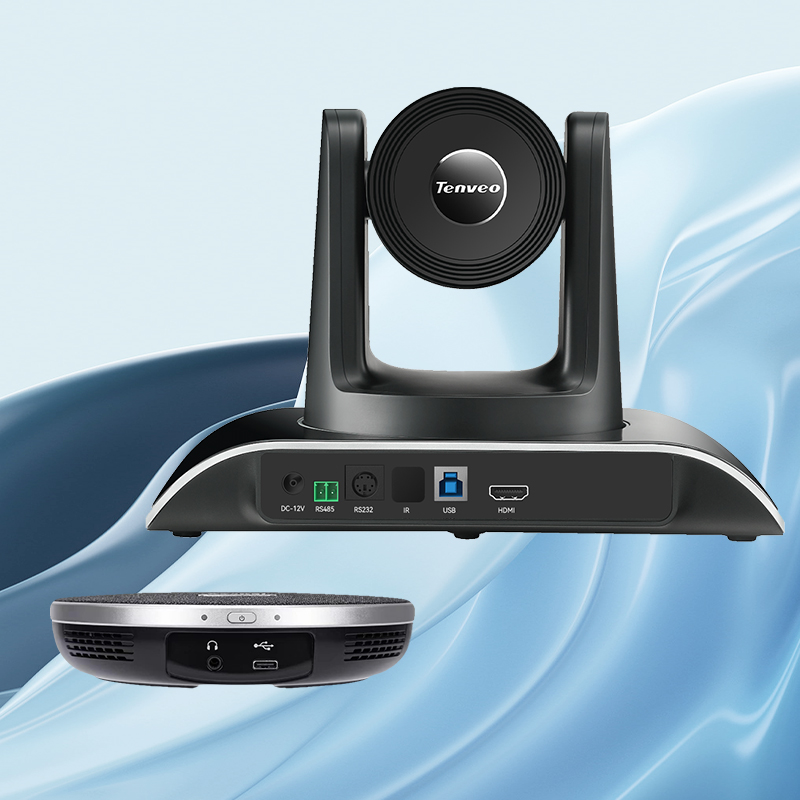

USB 3.0, HDMI video interfaces

With USB 3.0, HDMI interfaces, the 12X zoom PTZ camera of this video conference system could deliver a clear image and livestreaming.


Universal Compatibility

Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.


Easy to Use

Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.






Model NumberTEVO-VHD12U+M3B
Image Sensor of the ptz camera
1/2.8" SONY CMOS

Effective pixel

2.38MP
Lensf=3.42-40.02mm
Aperture
F1.88-3.77
Video Format1080p@60/50/30/25fps,720p@60/50/30/25fps
Horizontal Angle80.56(W)-7.89°(T)
Focus
Auto/Manual
Digital Noise Reduction
2D and 3D Noise Reduction
ExposureAuto/Manual
Video InterfacesUSB, HDMI
Video Compression FormatH.264, H.265, MJPG, YUY2
Control Protocol
VISCA/Pelco-D/Pelco-P/Onvif
Baud Rate38400/9600bps

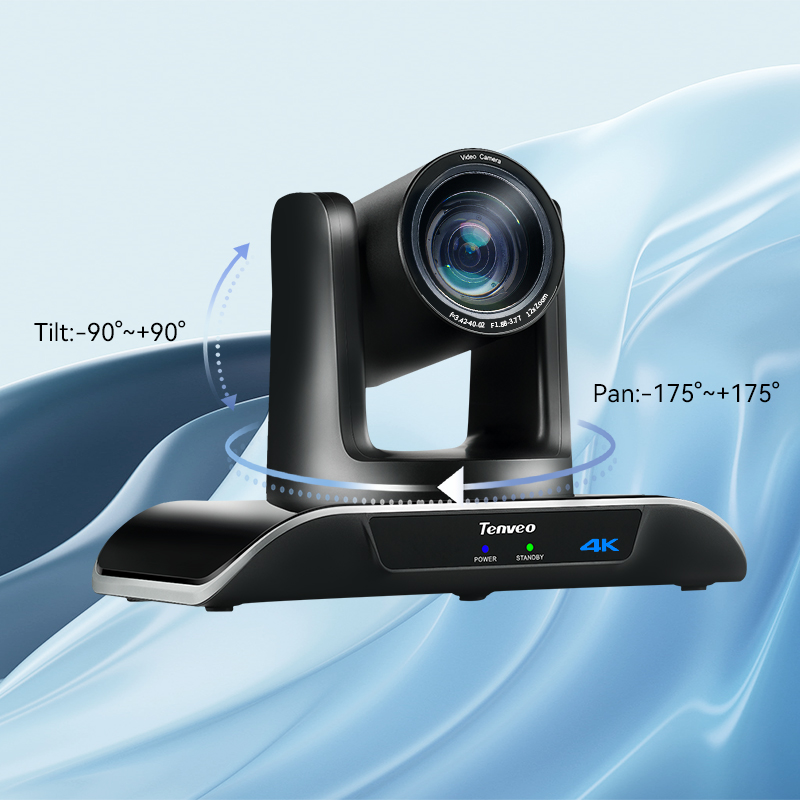

Pan/Tilt Rotation >±175°,-90°～+90°
Pan Control Speed0.1 -80°/sec
Tilt Control Speed0.1-60°/sec
Preset Number
255 presets by Pelco-D,32 presets by Pelco-P, 7 presets by Visca (10 presets by remote controller)
Acoustic echo cancellation(AEC) of the speakerphone＞65dB
Response of the speakerphone
135Hz-20Hz
Pickup Range of the speakerphone
6 meters
Battery of the speakerphone2400mAH(Built-in lithium battery); Music time (up to 8 hours ); Battery  life(call)  up to 6 hours; Charge time up to 3 hours
Connection TypeUSB/Bluetooth/AUX
Operation Systems
Windows 7 or higher; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.) Compatible with Zoom, MS Teams, Skype and etc.
Dimension（W*H*D）Camera: 247*165*171mm/285*217*197mm(before / after packing); Speakerphone: 180mm*180mm*34.7mm/220*108*83mm(before/after packing)
