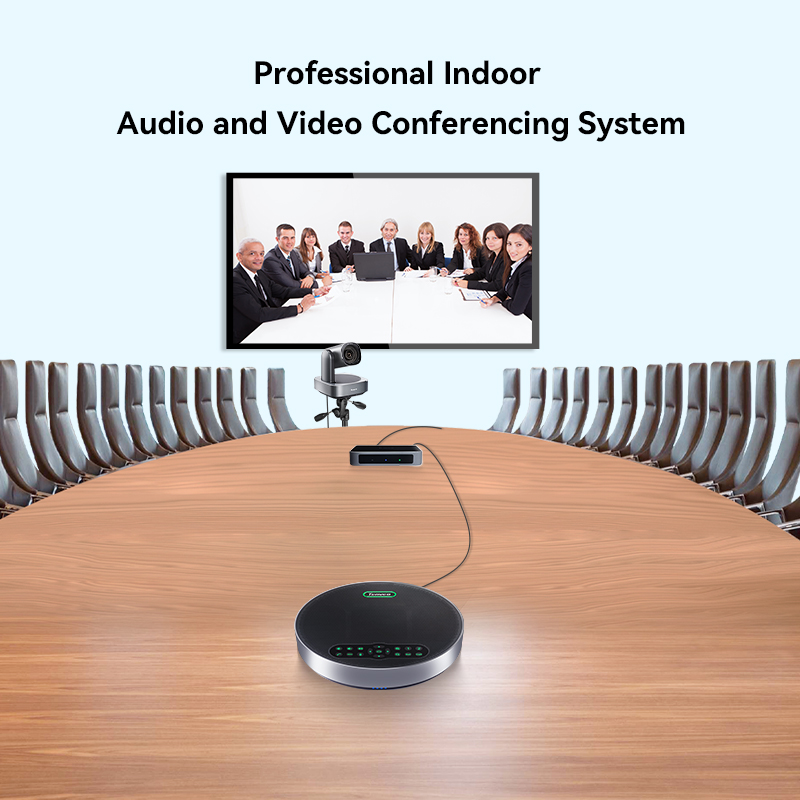

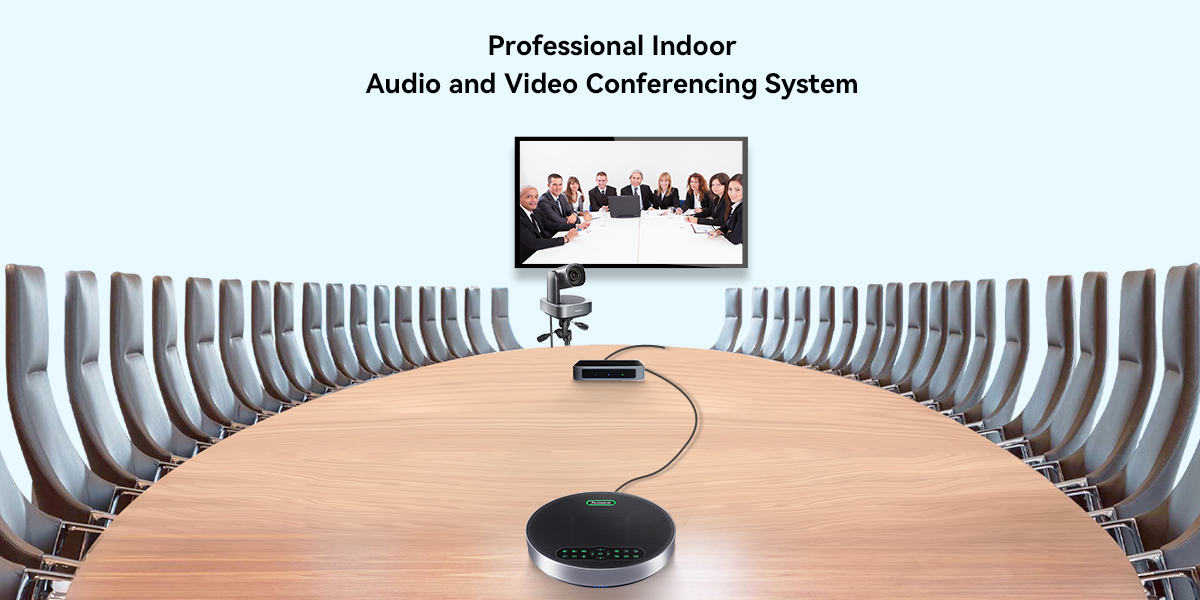

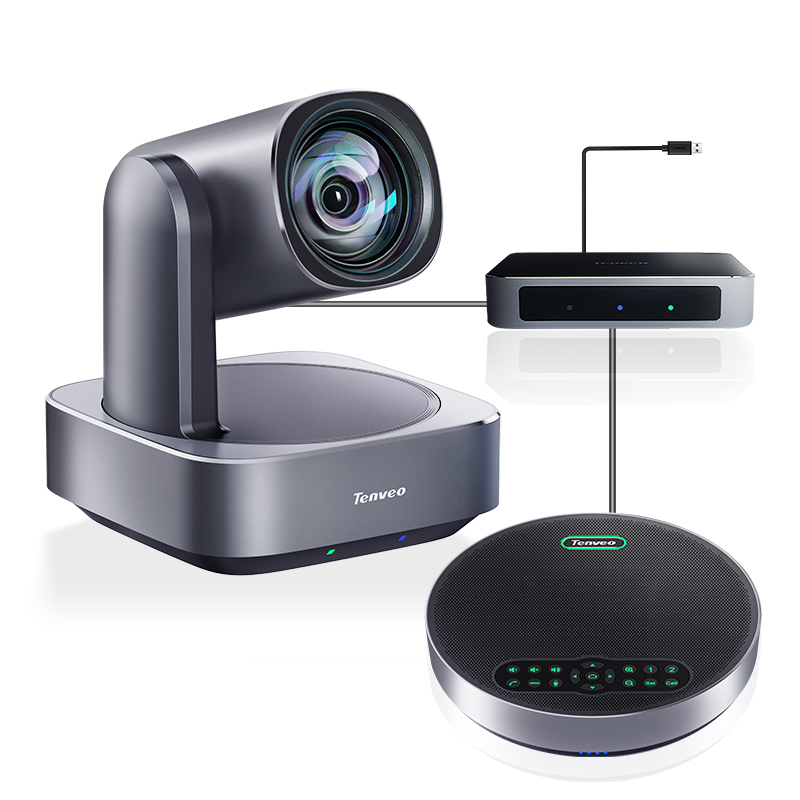

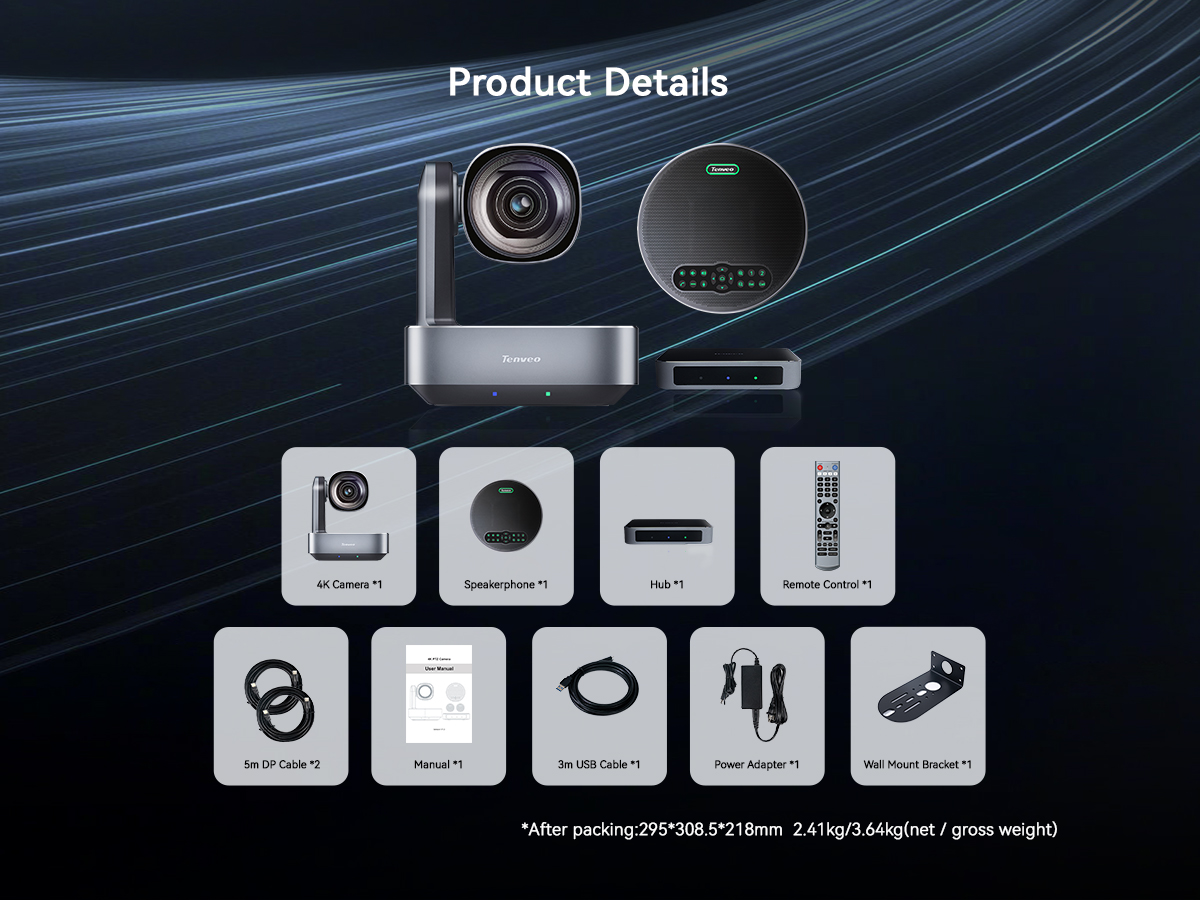

Tenveo All-in-One video and audio conferencing system for middle to big rooms. The affordable bundle comes with HD 12X Zoom and 4K camera, 360° voice pickup speakerphone with 6 meters voice pick-up radius.
With HDMI interface, the 4K 12X zoom PTZ camera of this video conference system could deliver a much clear image and low latency.
Compatible with Zoom, Skype for business, Microsoft Lync(Teams), Voovmeeting, CISCO WebEx and other conferencing software.
Work system match: Works properly in Windows 7/8.1/10, Mac OS 10.10 and higher. Just plug the camera via USB cable to the device you want to connect.
| Model Number | TEVO-VA512GROUP |
| Image Sensor of the ptz camera | 1/2.8" SONY CMOS |
Effective pixel | 8.29MP |
| Lens | f=4.1mm-49.2mm |
| Aperture | F1.8-2.68 |
| Video Format | 4K30,1080P-60/50/30/25, 720P-60/50/30/25 |
| Horizontal Angle | 70.82°(W)-6.48°(T) |
| Focus | Auto/Manual |
| Digital Noise Reduction | 2D and 3D Noise Reduction |
| Exposure | Auto/Manual |
| Video Interfaces | HDMI, DP |
| Video Compression Format | H.264, H.265, MJPG, YUY2 |
| Control Protocol | VISCA/Pelco-D/Pelco-P |
| Baud Rate | 9600/4800/38400/2400 |
| Pan/Tilt Rotation | >±175°,-90°～+90° |
| Pan Control Speed | 0.1 -80°/sec |
| Tilt Control Speed | 0.1-60°/sec |
| Preset Number | 255 presets by Pelco-D,32 presets by Pelco-P, 7 presets by Visca (10 presets by remote controller) |
| Acoustic echo cancellation(AEC) of the speakerphone | ＞65dB |
| Response of the speakerphone | 135Hz-20Hz |
| Pickup Range of the speakerphone | 6 meters |

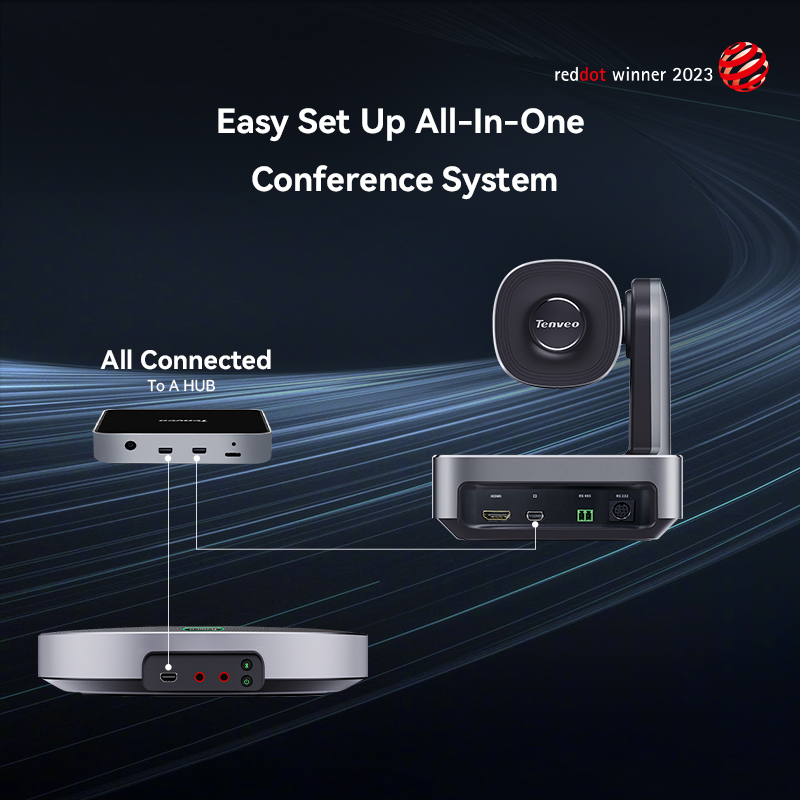

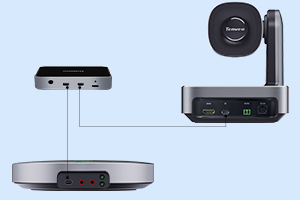

| Interfaces of the hub | DP*2; Power interface*1; USB Type-C*1 |
| Cables of the hub | 3m USB cable*1, 5m DP cable*2 |
| Operation Systems | Windows 7 or higher; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.) Compatible with Zoom, MS Teams, Skype and etc. |
| Dimension（W*H*D） | Camera: 171.6*192.6*171.6mm; Speakerphone: Φ 180mm*37.4mm; Hub: 98*98*20m |
