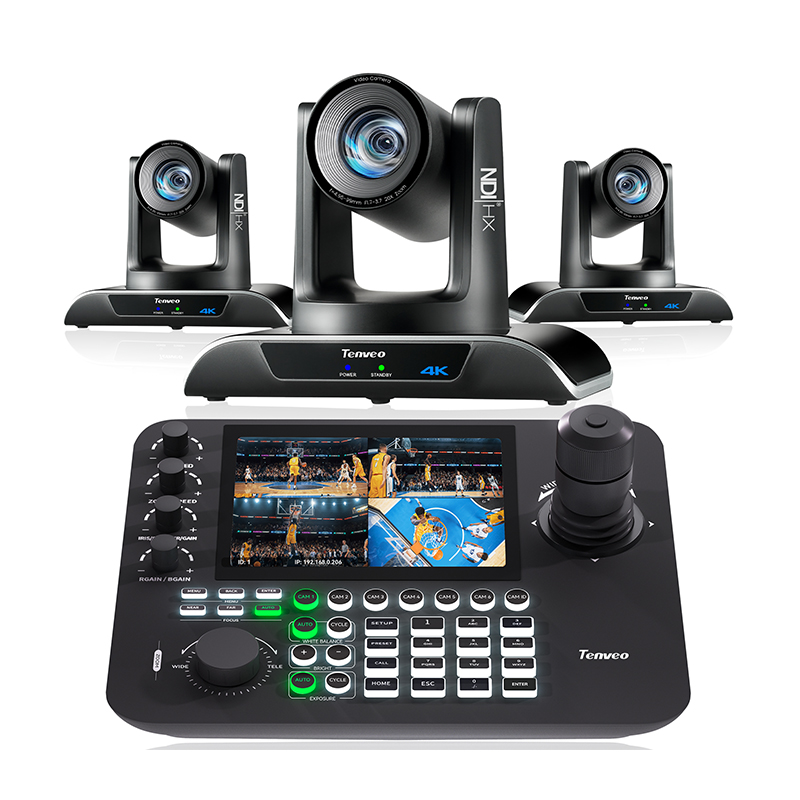

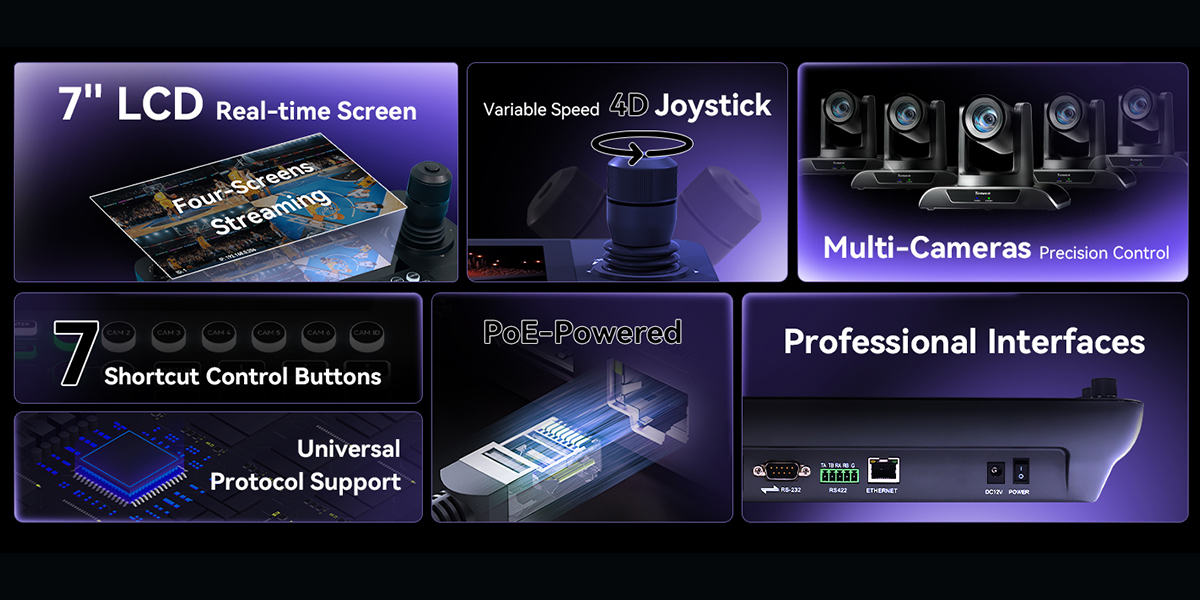

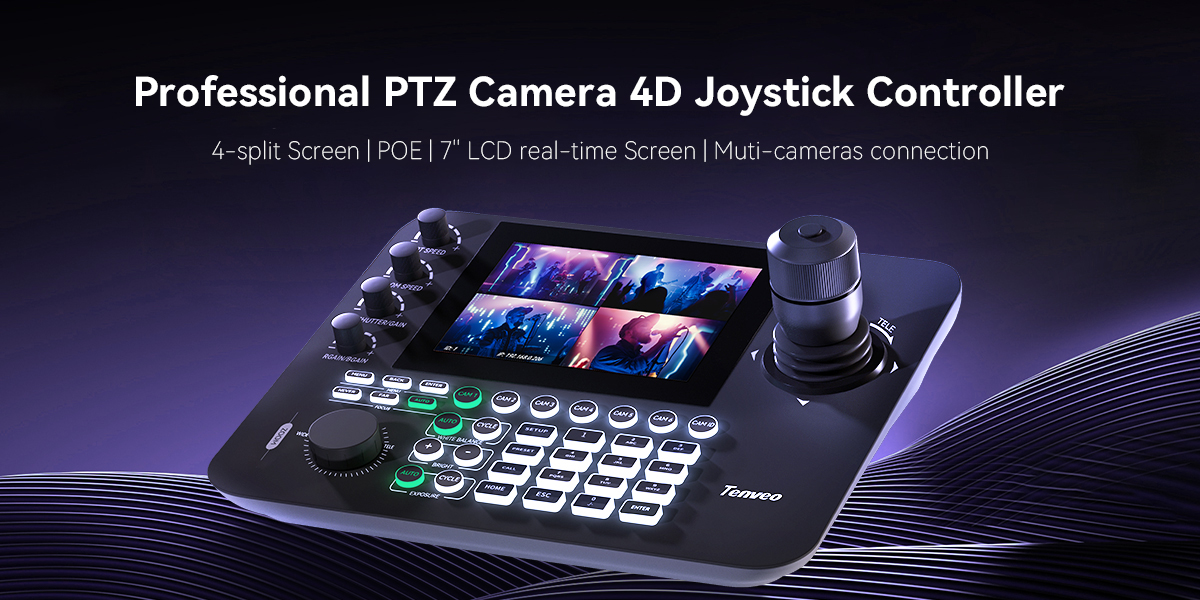

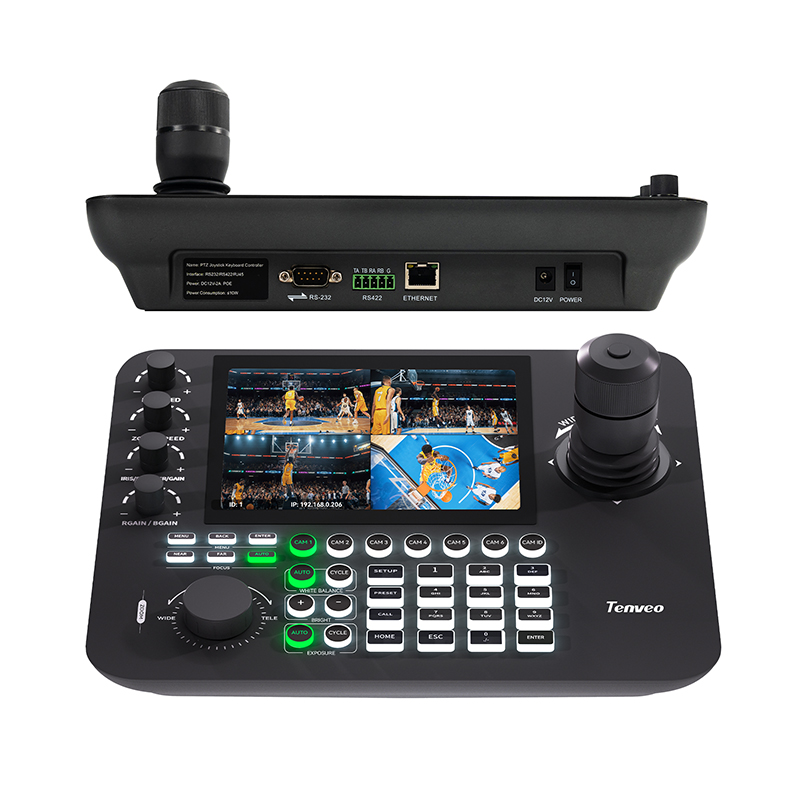

KB300PRO PTZ camera controller is made for broadcast, professional video conferencing and live streaming. lt is built in with 7" and 4-split LCD screen.

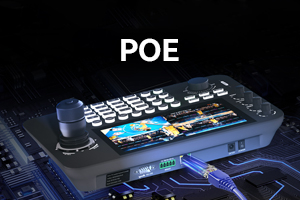

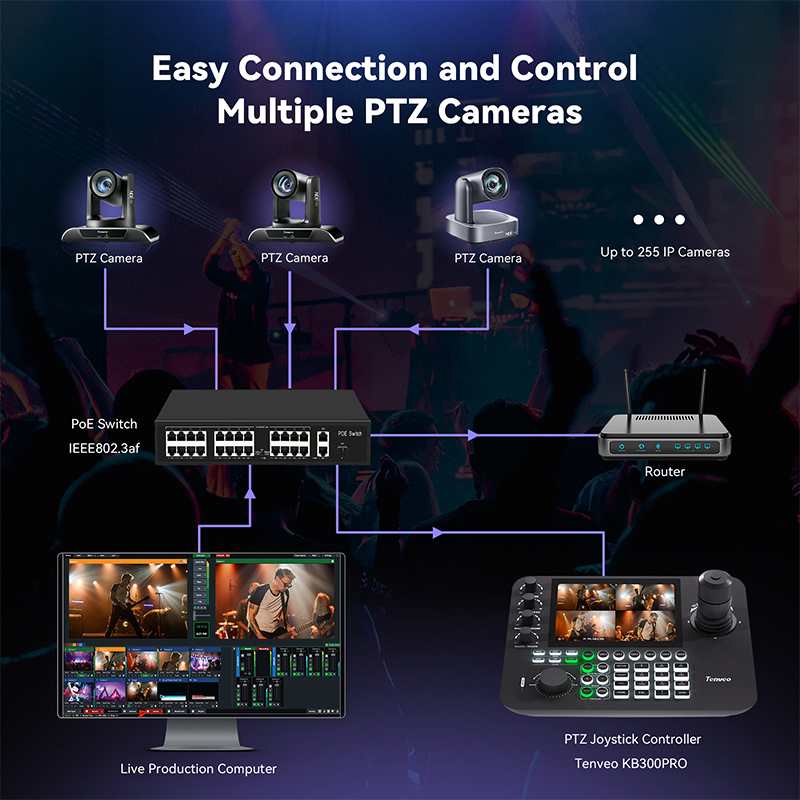

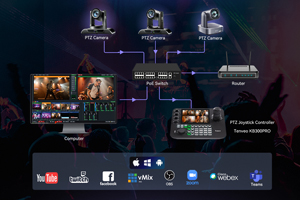

KB300PRO supports Power Over Ethernet (PoE) and NDI. Take control of cameras all across your network with a single Ethernet cable. Use PoE network switch to simplify your Joystick setup.
The joystick controller supports multiple control protocols: VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF.
The cameras and joystick controller can be used in various scenes, such as government and telecommunications departments, public security, procuratorates, courts, banks, securities, insurance, education, taxation, etc.
| Model | TEVO-KB300PRO |
| Chip | ssd202d |
| System | Linux |
| Max equipment | 256 |
| Decoding | H.265, H.264 |
| RESOLUTION | MAX 1080P for 1 channel:1920*1080@30fps |
| Protocol | VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF |
| Camera Control | Exposure Selection: YES White Balance: YES Backlight Control: YES Display status of WB, Iris, Gain, Shutter, Focus: YES Focus Model Selection: YES Auto Focus/Manual Focus: YES |
| User Interfaces | Display: LED Speed Control: YES Zoom Rocker: Yes Joystick Zoom Ring: Yes Programmable function buttons: 6 |
| Four-split display | Support |

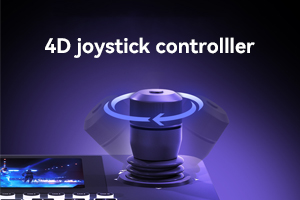

| Joystick | 4D |

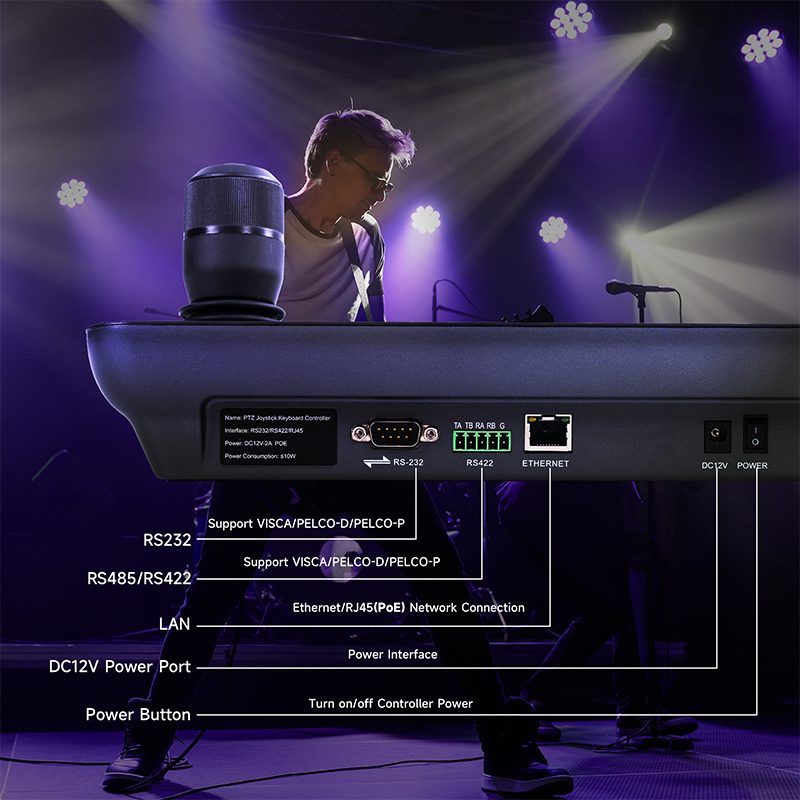

| Output | RS422(Reserved), RS232(Development port), RJ45 |

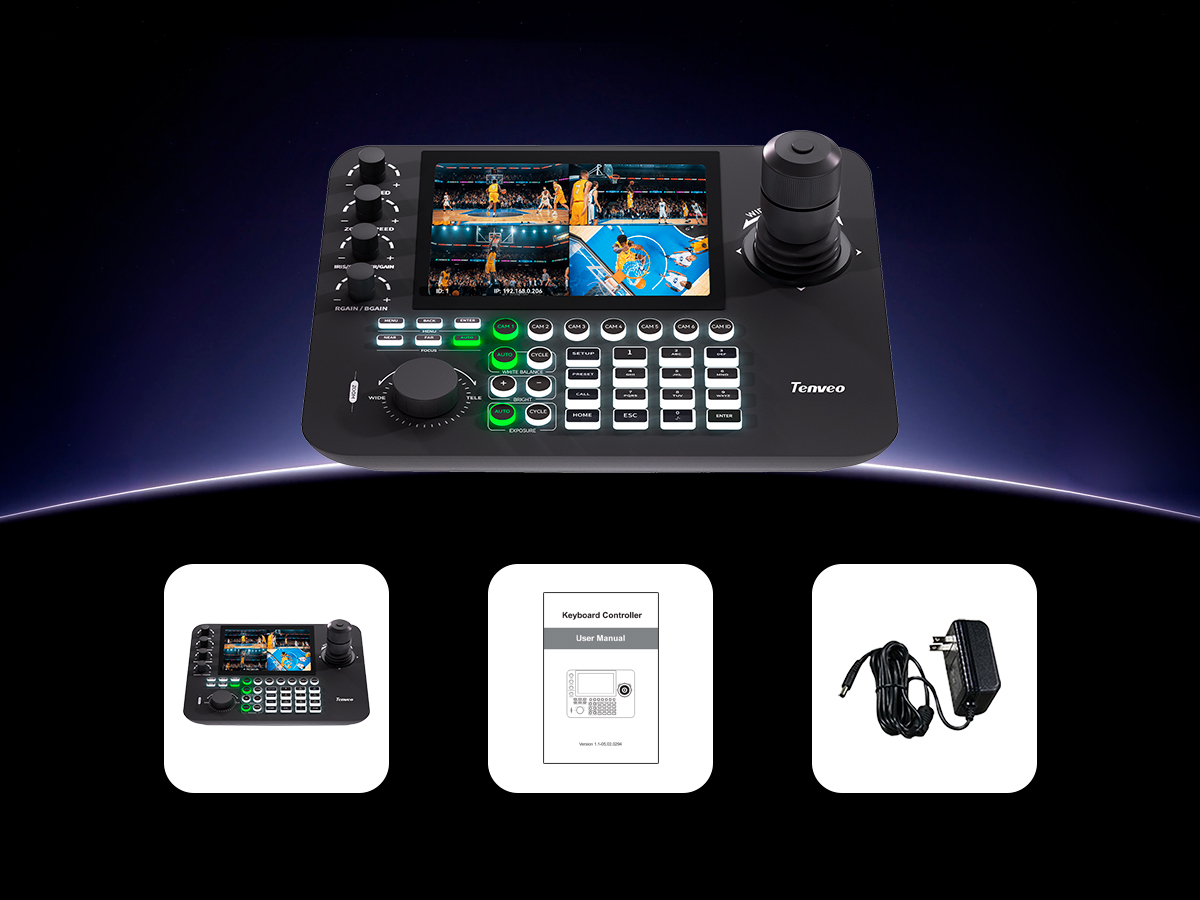

| Accessories | knob, Slicone button |
| Beep | On/off |
| Display | TFT LCD 7inches 600*1024 |
| Max camera control | Max 256 with multiple protocols including NDI/IP |
| Power Consumption | ≤10W |

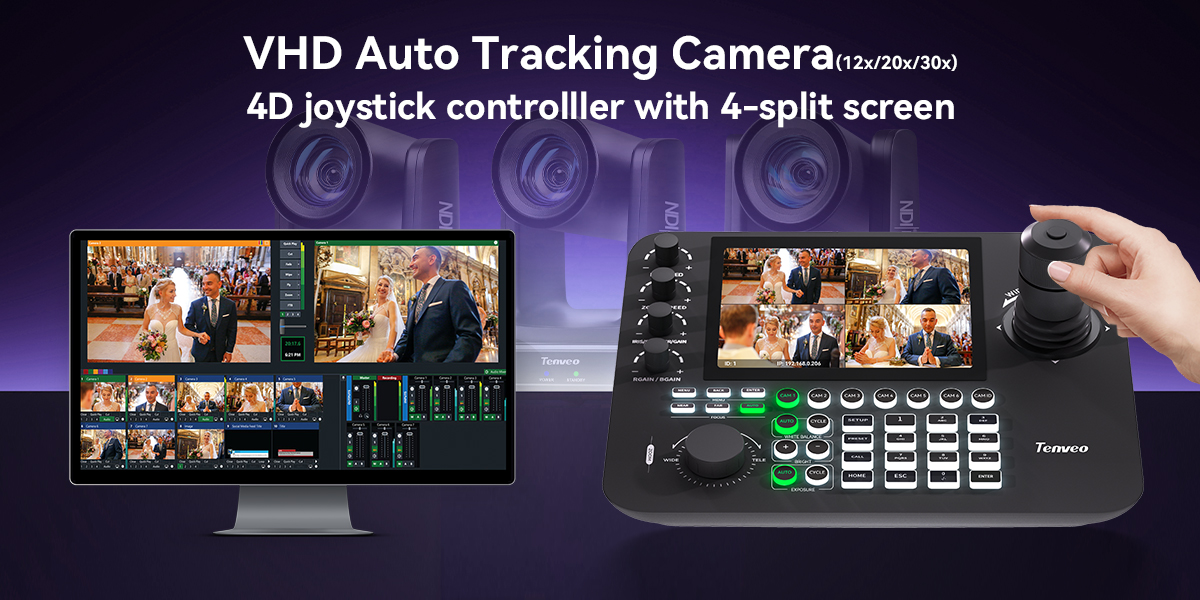

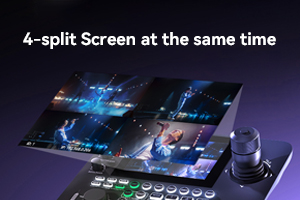

| Split screen display | 1 split screen/4 split screen |
| Power | DC12V-2A POE |
| Working Temperature | -10℃-55℃ |
| Working Humidity | 20%-80% Frostless |
| Storage Temperature | -10°C-55C |
| Storage Humidity | 0%-90% Frostless |
| Packing Size | 297 * 210 * 140mm/380mm * 270mm *170mm (before / after packing) |
| Net Weight | 1800g/set |
