Model No.
|
VHD-20N
|
|
Image Sensor
|
1/3 inch Exmor CMOS
|
|
Effective pixel
|
2.38 mega pixel(16:9)
|
|
Horizontal Resolution
|
1080p30/25, 720p30/25
|
|
Signal standard
|
NTSC/PAL
|
|
Zoom
|
20x optical zoom
|
|
Focal length
|
F=4.7-94.0mm
|
|
Horizontal Angle
|
Near-end 55.5°~Far-end 3.0°
|
|
Gain control/Focus
|
Auto/manual
|
|
SNR ratio
|
≥50dB
|
|
Wide dynamic
|
D-WDR
|
|
Speed
|
Pan: 0~100°/S(Default: 29°/S), Tilt: 0~80°/S (Default: 20°/S）
|
|
Preset position
|
Preset Point: 9 for remote control, 255 for PELCO, 64 for VISCA.
|
|
Pan/Tilt movement range
|
Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S)
|
|
Control terminal
|
RS-232, RS485
|
|
Control Protocol
|
VISCA, PELCO-D, PELCO-P(RS-232, RS485)
|
|

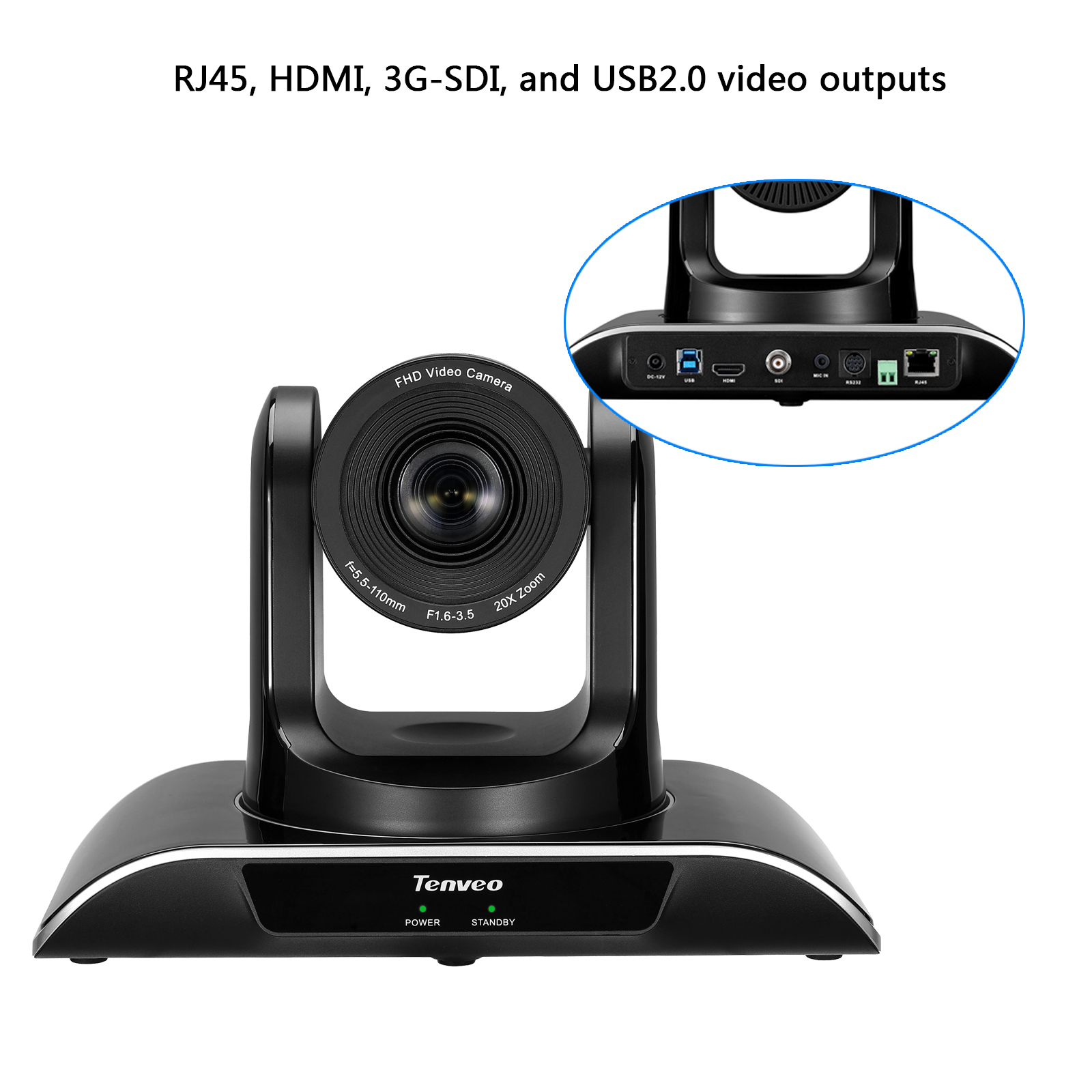

Video output
|
USB,HDMI,SDI,RJ45
|
|
Audio input port
|
3.5mm
|
|
Installation
|
Support desktop, Tripod, Wall mount and Ceiling mount
|
